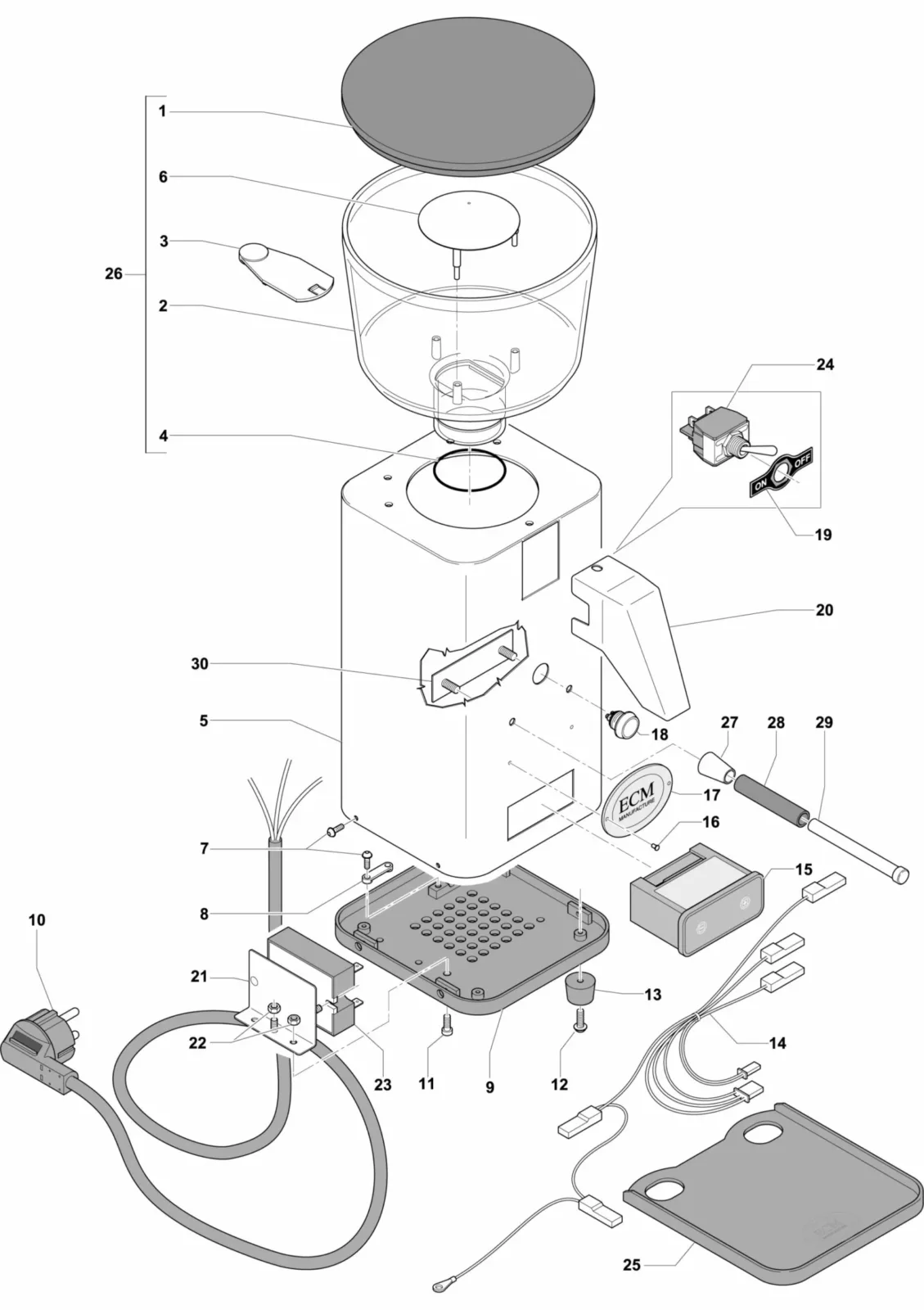

S-Automatik 64

ECM-S-Automatik-64-S-Manuale-64-parts-diagram-01
# SKU
1 G1009
2 G1000
3 G1014
4 G1017
5 G1110
6 G1002
7 G1030
8 G1011
9 G1012
10 C199900957 (DE)
P2034 (US)
P2035 (UK)
P2036 (AU)
11 P2006
12 G1031
13 G1015
14 G1250
15 P6033 (220V-240V)
US1021(110V-120V)
16 P1998
17 81200
18 G1020
19 P4013
20 G1115
21 G1122
22 P2026
23 P6031
24 C199900087
25 G1008
26 G1000.K
27 G1007
28 G1005
29 G1008.1
30 G1129

S-Manuale 64

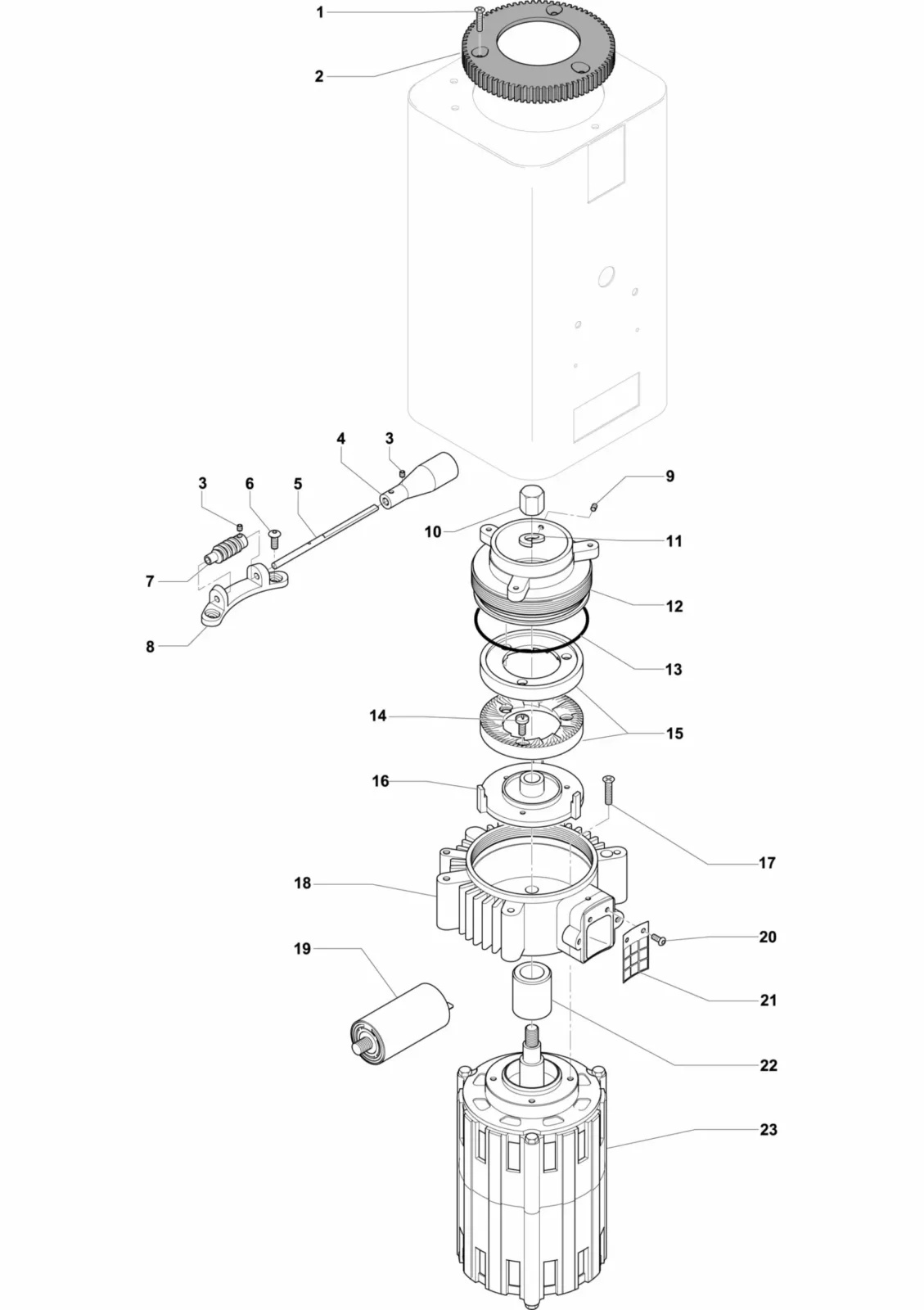

ECM-S-Automatik-64-S-Manuale-64-parts-diagram-02
# SKU
1 G1009
2 G1000
3 G1014
4 G1017
5 G1111
6 G1002
7 G1030
8 G1011
9 G1012
10 C199900957 (DE)
P2034 (US)
P2035 (UK)
P2036 (AU)
11 P2006
12 G1031
13 G1015
14 G1021
15 G1251
16 G1129
17 G1113
18 G1034
19 G1121
20 P1995
21 G1018
22 G1000.K
23 C199900306
24 P6031
25 G1008
26 81200
27 P1998

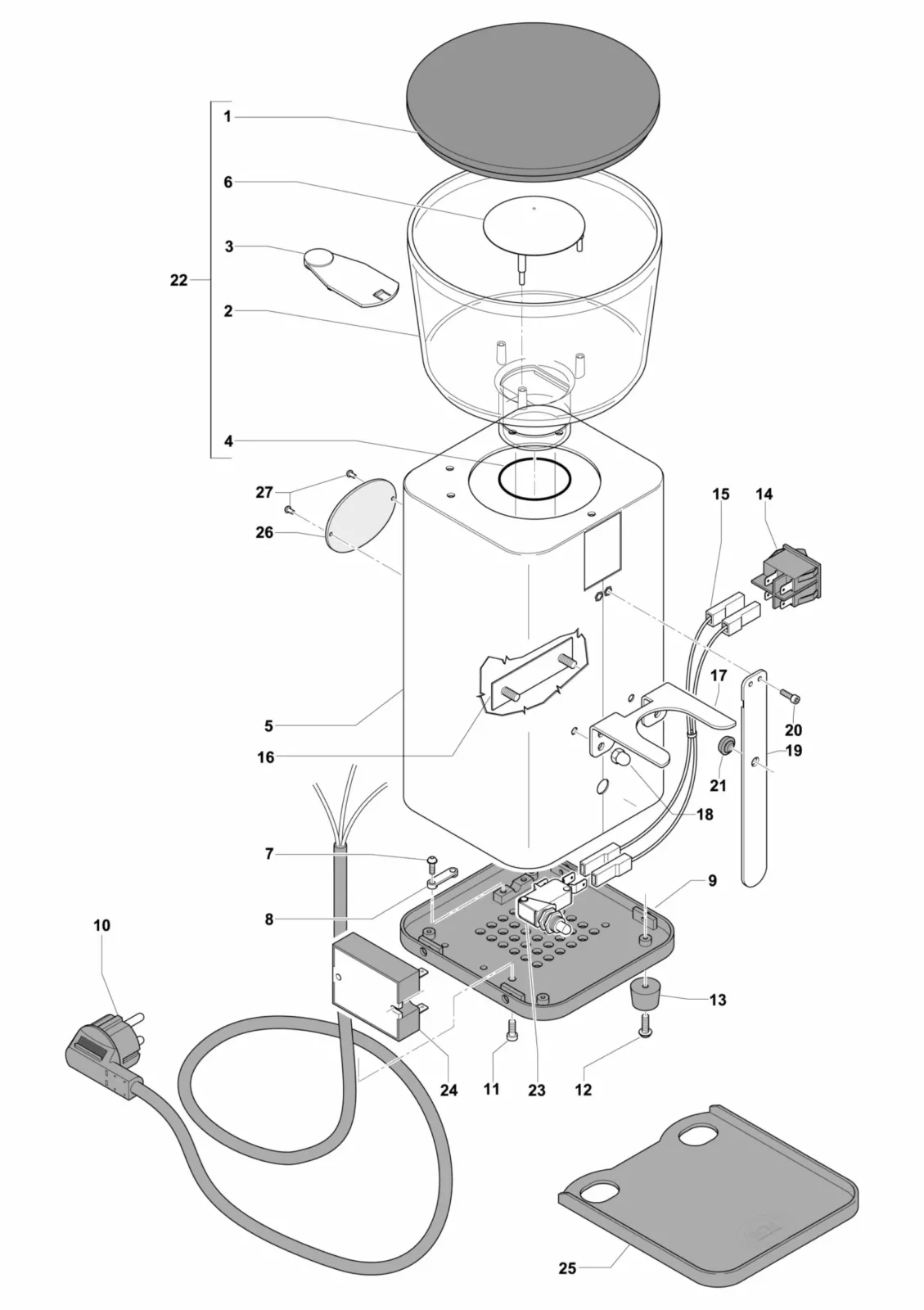

ECM-S-Automatik-64-S-Manuale-64-parts-diagram-03
# SKU
1 P6111
2 G1100
3 P6112
4 G1101
5 G1102
6 P2022
7 G1103
8 G1053
9 G1029
10 G1033
11 P2011
12 G1054
13 G1016
14 P6110
15 G1040
16 G1055
17 P6109
18 G1057
19 G1240 (220V-240V)
G1241 (110V-120V)
20 P2064
21 G1192
22 G1199
23 G1220 (220V-240V, 50Hz)
G1221 (110V-120V, 60Hz)
