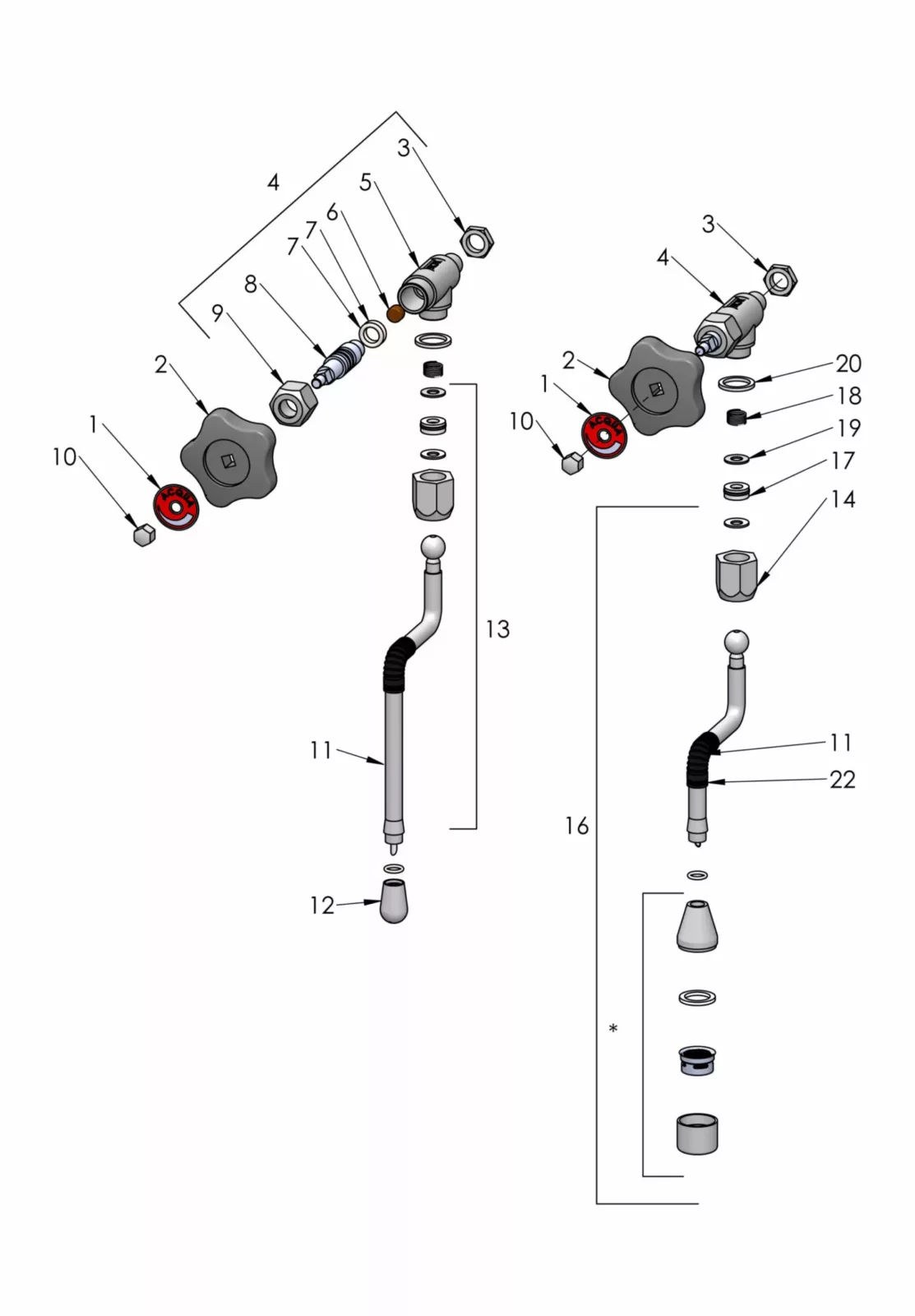

ECM-Mechanika-V-Slim-parts-diagram-01
# SKU
1 B5220818.1
2 B7474212
3 B7474216.1
4 E81000
5 P1984
6 P1998
7 P2006
8 P2007
9 P3001.6
10 P3002
11 P7029
12 P9001
13 P9003
14 P9004
15 P9009
16 P9016
17 P9017
18 P9018
19 P9028
20 P9029
21 P9030

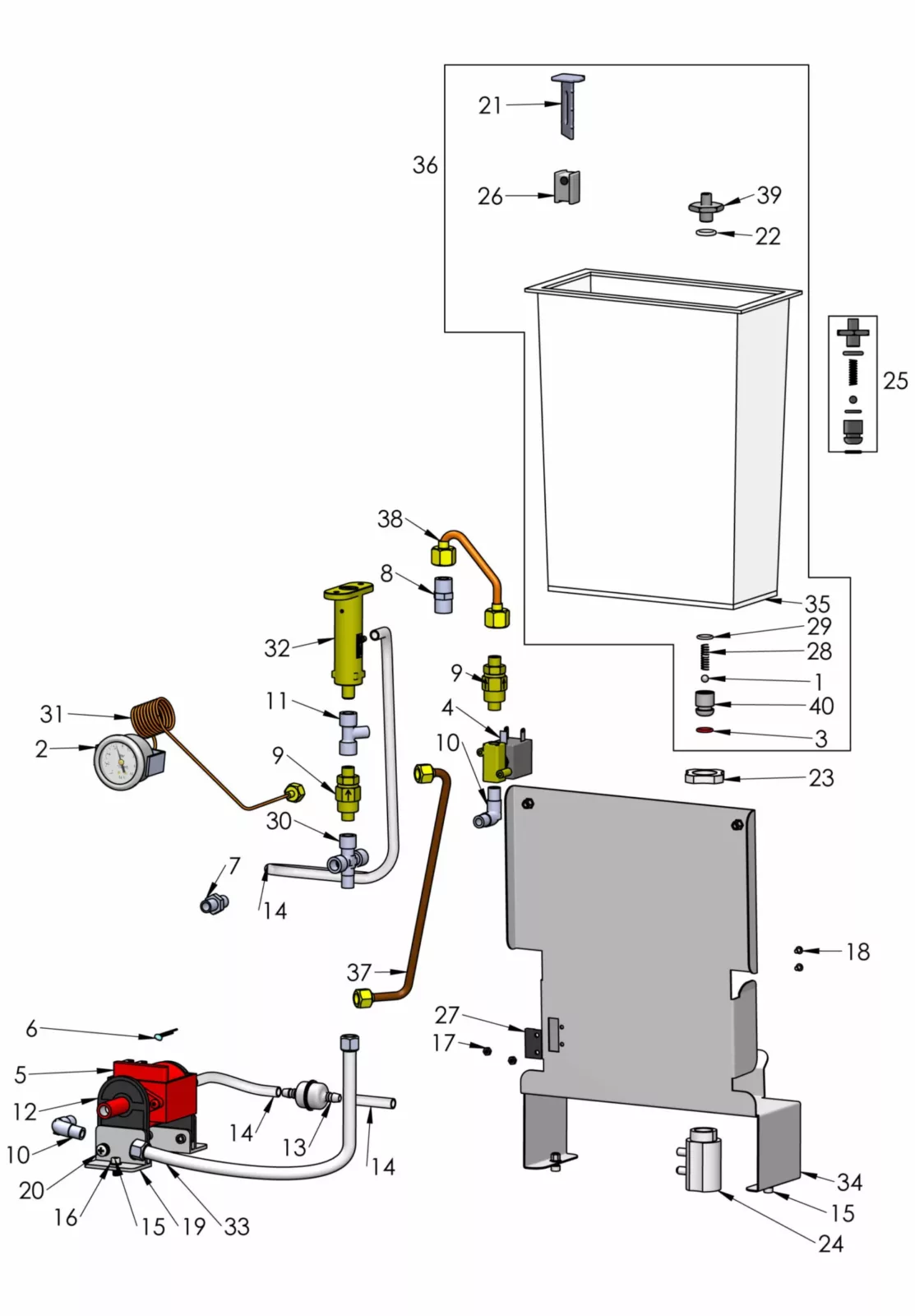

ECM-Mechanika-V-Slim-parts-diagram-02
# SKU
1 B5471509
2 B7432517
3 B7496076
4 C199900275 (230V, 50Hz)
4 US1005 (110V, 60Hz)
5 C199900280 (230V, 50Hz)
5 US1001 (120V, 60Hz)
5 US1025 (100V)
6 C199900969
7 C229900518
8 C229900520
9 C229900548
10 C229900579
11 C229900703
12 C249900770
13 C439900695
14 C499900769
15 P2006
16 P2009
17 P2019
18 P2064
19 P3006.K
20 P3019
21 P6016
22 P6020.3
23 P6020.K3
24 P6020.K4
25 P6020.NK
26 P6021
27 P6022
28 P6023
29 P6025
30 P6047
31 P6051
32 P7000
33 P8016
34 P9007
35 P9010
36 P9010.K1
37 P9400
38 P9401
39 P6020
40 P6017

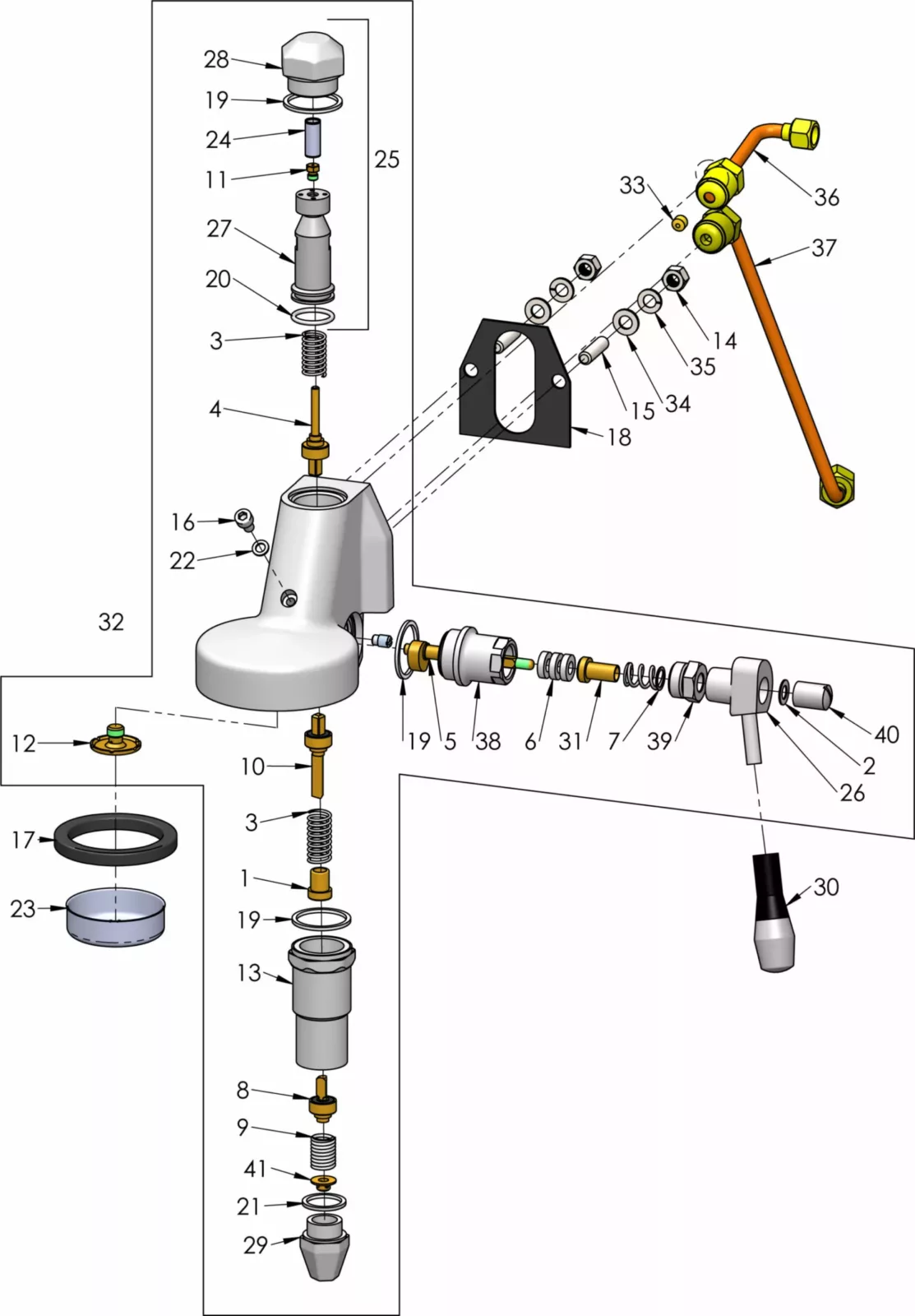

ECM-Mechanika-V-Slim-parts-diagram-03
# SKU
1 B7400902
2 B7432516
3 C199900214
4 C199900294
5 C199901550.1
6 C219900561
7 C229900393
8 C229900518
9 C229900520
10 C229900525
11 C229900559
12 C229900740
13 C309900127.2
14 P2006
15 P2009
16 P2011
17 P2045
18 P7014.1 (230V)
18 US1000 (110V)
19 P7049
20 P7080
21 P9013
22 P9402
23 P9403
24 P9404

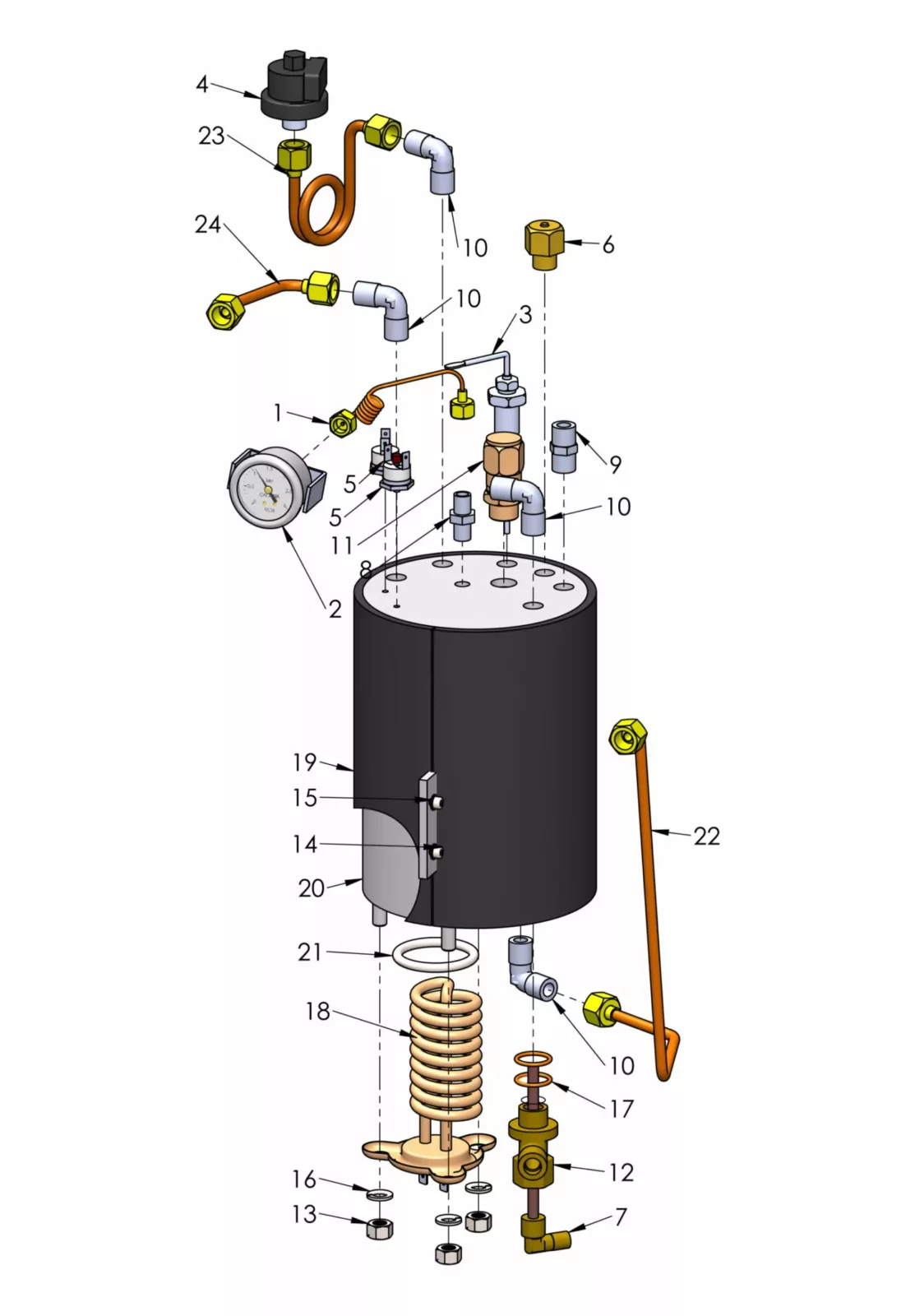

ECM-Mechanika-V-Slim-parts-diagram-04
# SKU
1 B5522056.1
2 B7371509
3 C329900682
4 P6000
5 P6000.1
6 P6000.2
7 P6000.3
8 P6000.4
9 P6000.5
10 P6000.6
11 P6002.1
12 P6002.4 (2-hole)
12 P6002.7 (3-hole)
12 P6002.6 (4-hole)
12 P6002.3 (5-hole)
13 P6005
14 P6005.5
15 P6005.6
16 P6006
17 P6010
18 P6011
19 P6012
20 P6015
21 P6002.2
22 P6002.2
23 P6001.1
24 P6001.2

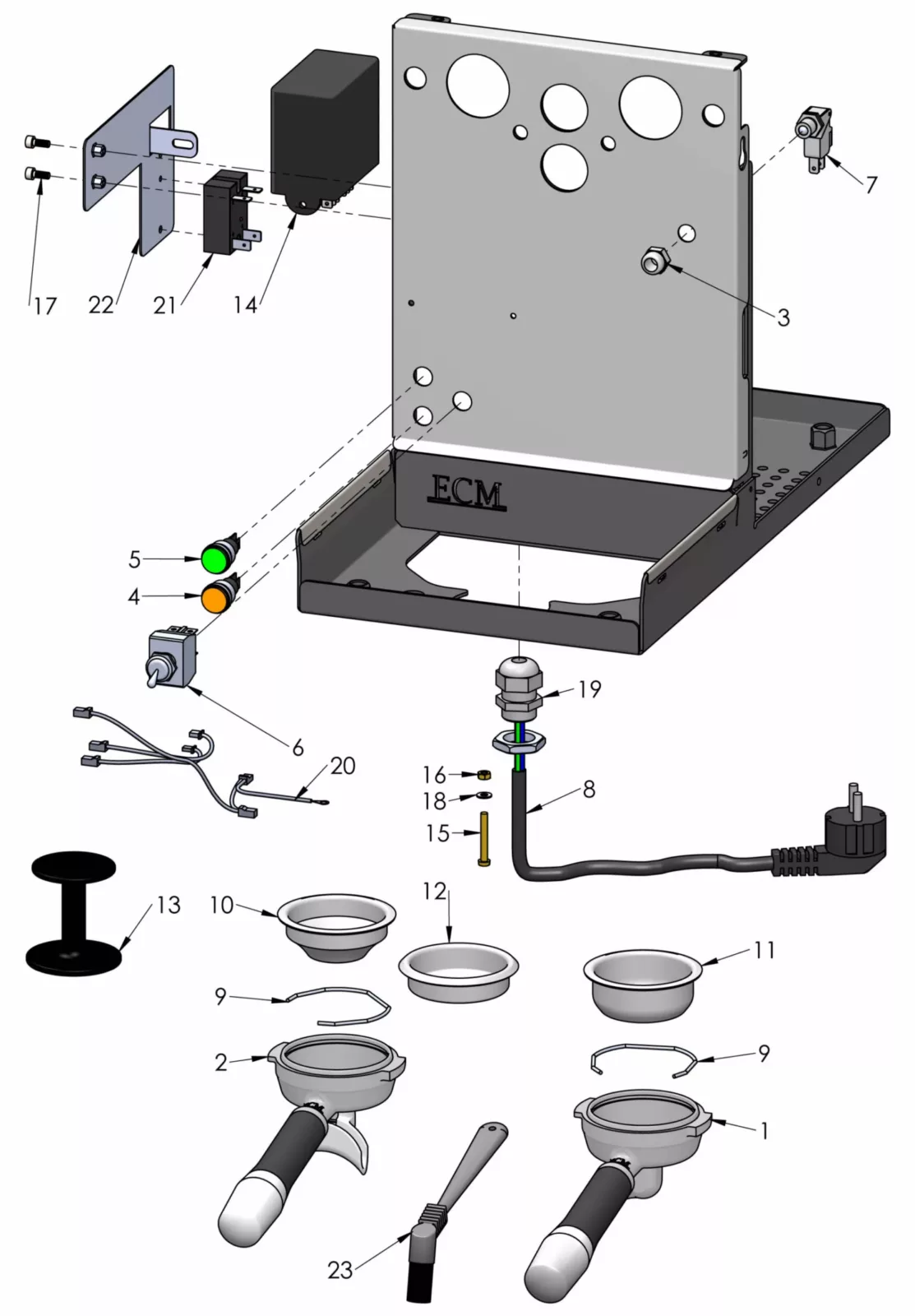

ECM-Mechanika-V-Slim-parts-diagram-05
# SKU
1 B7479942
2 B7479947
3 C219900423
4 C219900424
5 C219900425
6 C219900426
7 C219900427
8 C219900430
9 C219900431
10 C219903081
11 C229900549
12 C229901128
13 C229901165
14 C309900127.2
15 C309900131
16 C309900164
17 C449900229
18 C449900767
19 C469900421
20 C469900422
21 C469900783
22 C469901132
23 C519900103
24 C619900554
25 P1000.1
26 P1000.2
27 P1000.3
28 P1000.4
29 P1000.5
30 P1002
31 P1004
32 P1009
33 P1910.1
34 P2010
35 P2011
36 P9405
37 P9406
38 R000002142
39 R000002144
40 R000002146
41 R000002148

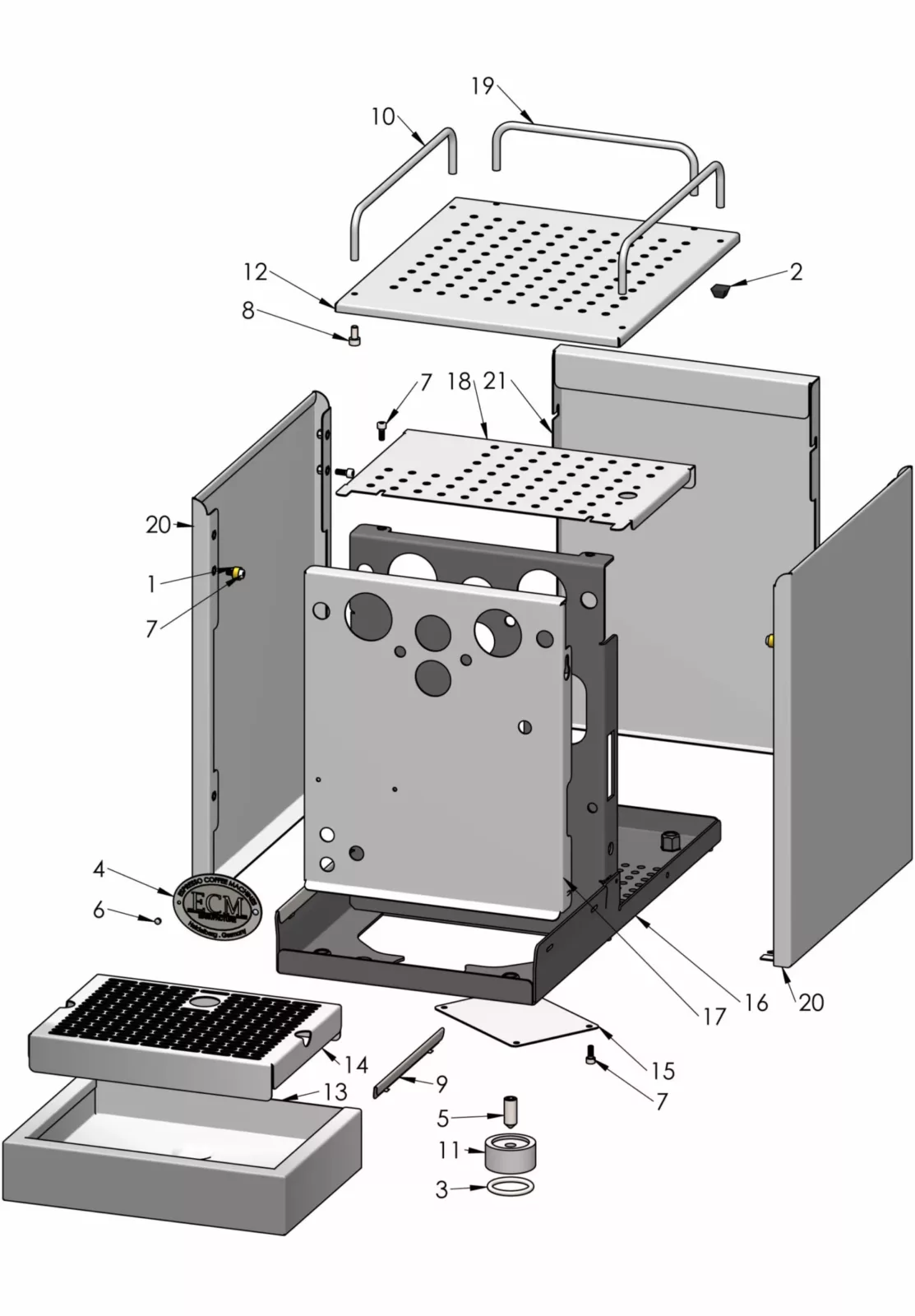

ECM-Mechanika-V-Slim-parts-diagram-06
# SKU
1 89424
2 89425
3 B5221875CM
4 B7633617
5 B7633618
6 C199900087
7 C199900306
8 C199900957 (DE)
8 P2034 (US)
8 P2035 (UK)
8 P2036 (AU)
9 C619900098
10 C619900104
11 C619900105
12 C619900106
13 C639900764
14 M2004 (240V)
14 US1004 (115V)
15 P2001
16 P2002
17 P2006
18 P2009
19 P2070
20 P2591
21 P6029
22 P9019
23 R210
