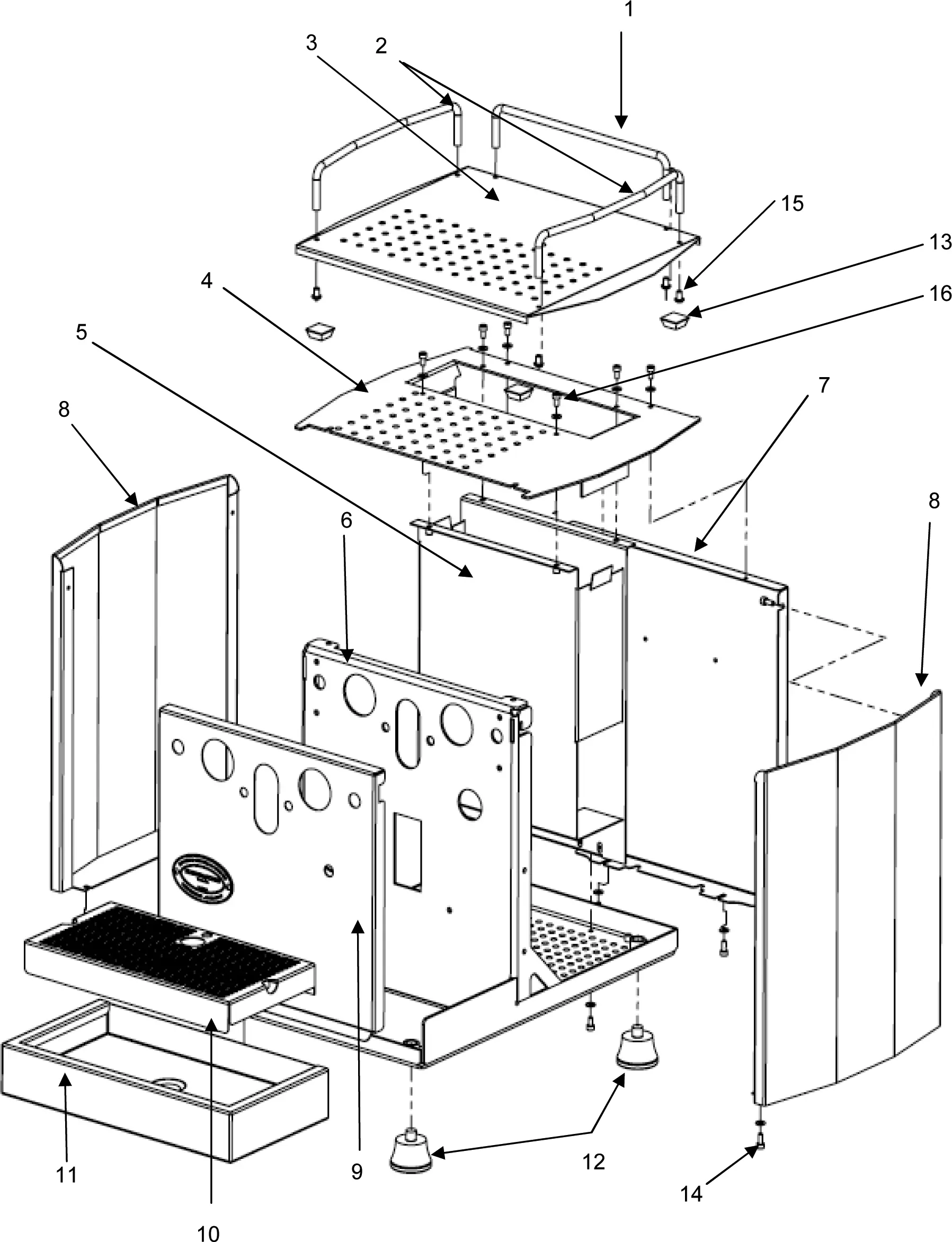

ECM-Barista-parts-diagram-01
# SKU
1 P3002
2 M3007
3 M3003
4 M3004
5 M3006
6 P3001
7 M3002
8 M3001
9 P3013
10 B5074613LW
11 B5340501DL
12 B7474216
13 B7474212
14 P2006
15 P2007
16 P2005

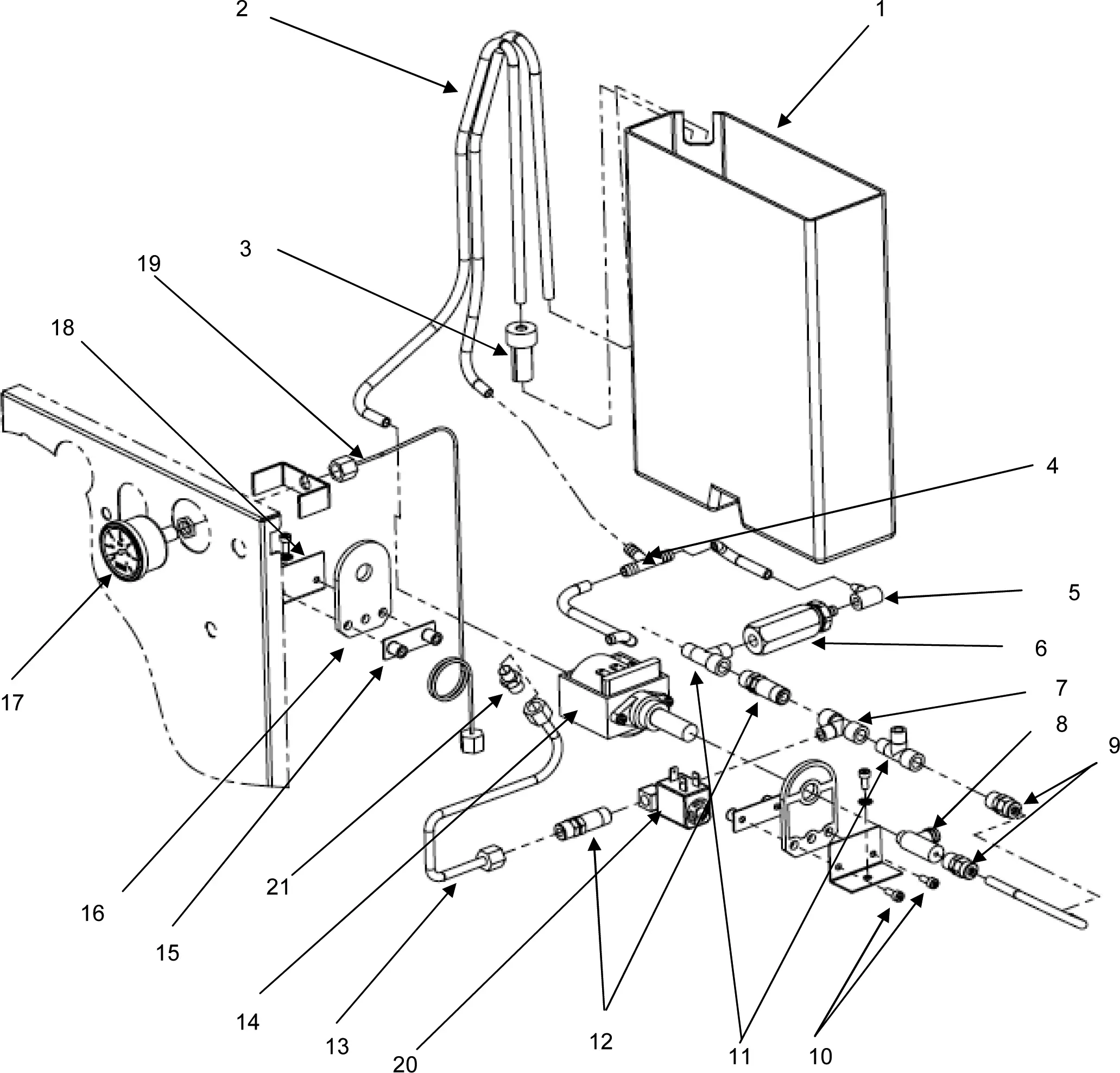

ECM-Barista-parts-diagram-02
# SKU
1 C639900382
2 C499900769
3 C639900933
4 C400001932
5 C449900709
6 C229900911
7 C229900703
8 C200002112
9 C229900708
10 P2006
11 C229900644
13 P2017
14 C199900280
15 P3006
16 C249900770
17 BM7432517
18 P3004
19 B7400902
20 C199900275
21 C229900518

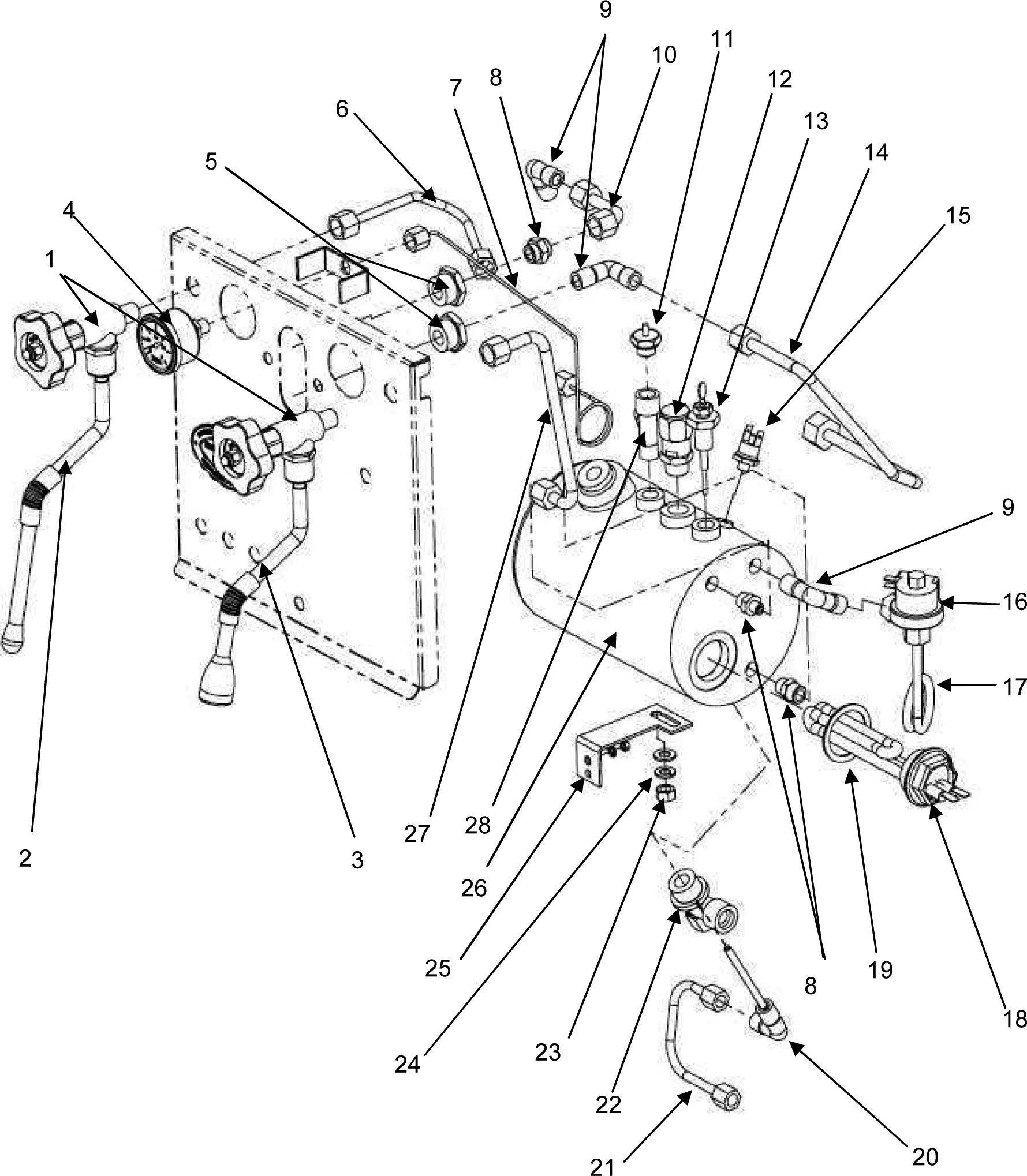

ECM-Barista-parts-diagram-03
# SKU
1 P6000
2 P6002
3 P6001
4 BM7432516
5 C227700536
6 P2018
7 B7400902
8 C229900520
9 C229900525
10 P2015
11 C2199900560
12 C229900559
13 C199900839
14 C229900395
15 C199901550
16 C199900294
17 C229901576
18 C199901551
19 P1001
20 C229900393
21 P2016
22 C229900740
23 C309900127
24 P2011
25 P3003
26 C277700250
27 P1903
28 C229900528

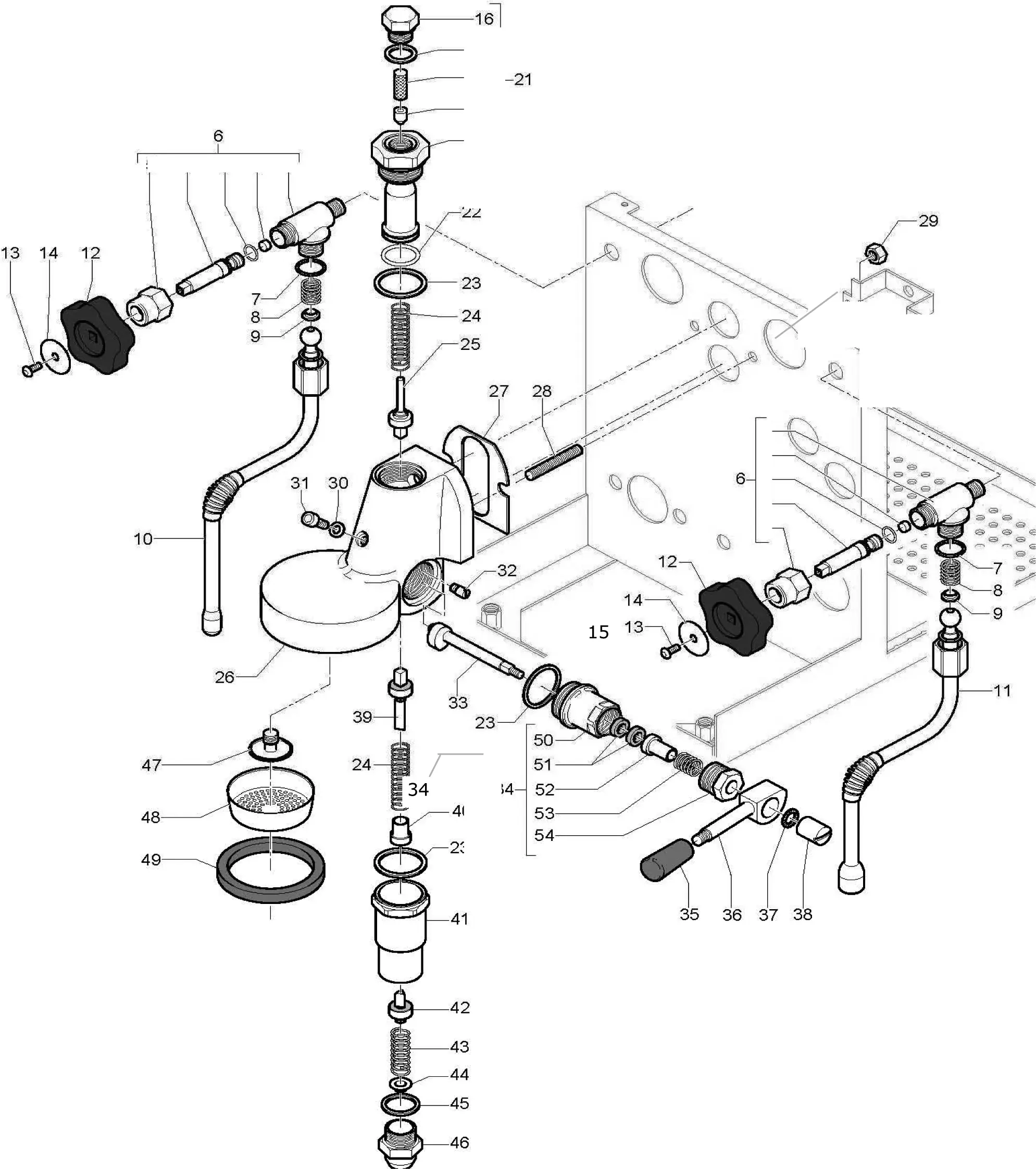

ECM-Barista-parts-diagram-04
# SKU
6 P6000
7 P6012
8 P6011
9 P6010
10 P6002
11 P6001
12 B7371509
13 B7826410CM
14 B5522055
15 B5522056
16 R000002141
17 C469900420
18 C619900554
19 C229900549
20 C229901133
22 C469900422
23 C469900421
24 C219900423
25 C219900424
26 C229900547
27 C449900767
28 C309901131
29 B7812607
30 C469901132
31 C309900164
32 B7479951
33 C219900425
34 R000002142
35 C439900840
36 R000002145
37 B7479947
38 R000002146
39 C219903081
40 B7479942
41 C229901165
42 C219900430
43 C219900431
44 R000002148
45 C469900783
46 R000002149
47 C229901128
48 C519900103
49 C449900229
51 C219900426
52 R000002143
53 C219900427
54 R000002144

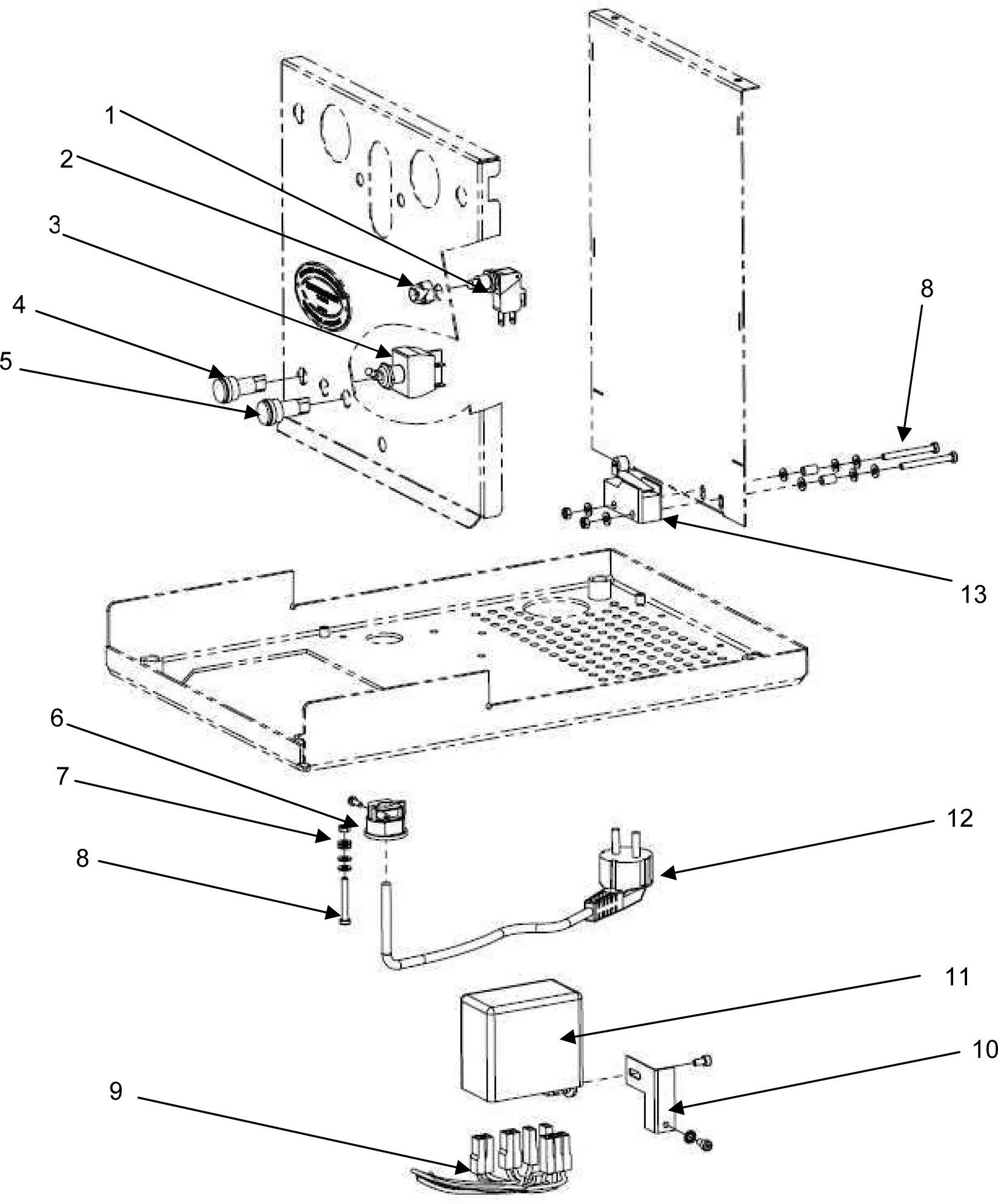

ECM-Barista-parts-diagram-05
# SKU
1 C199900306
2 B5221875CM
3 C199900087
4 B7633618
5 B7633617
6 C439900086
7 P2002
8 P2001
9 P2012
10 P3005
11 M2004
12 C199900857
13 B7633907

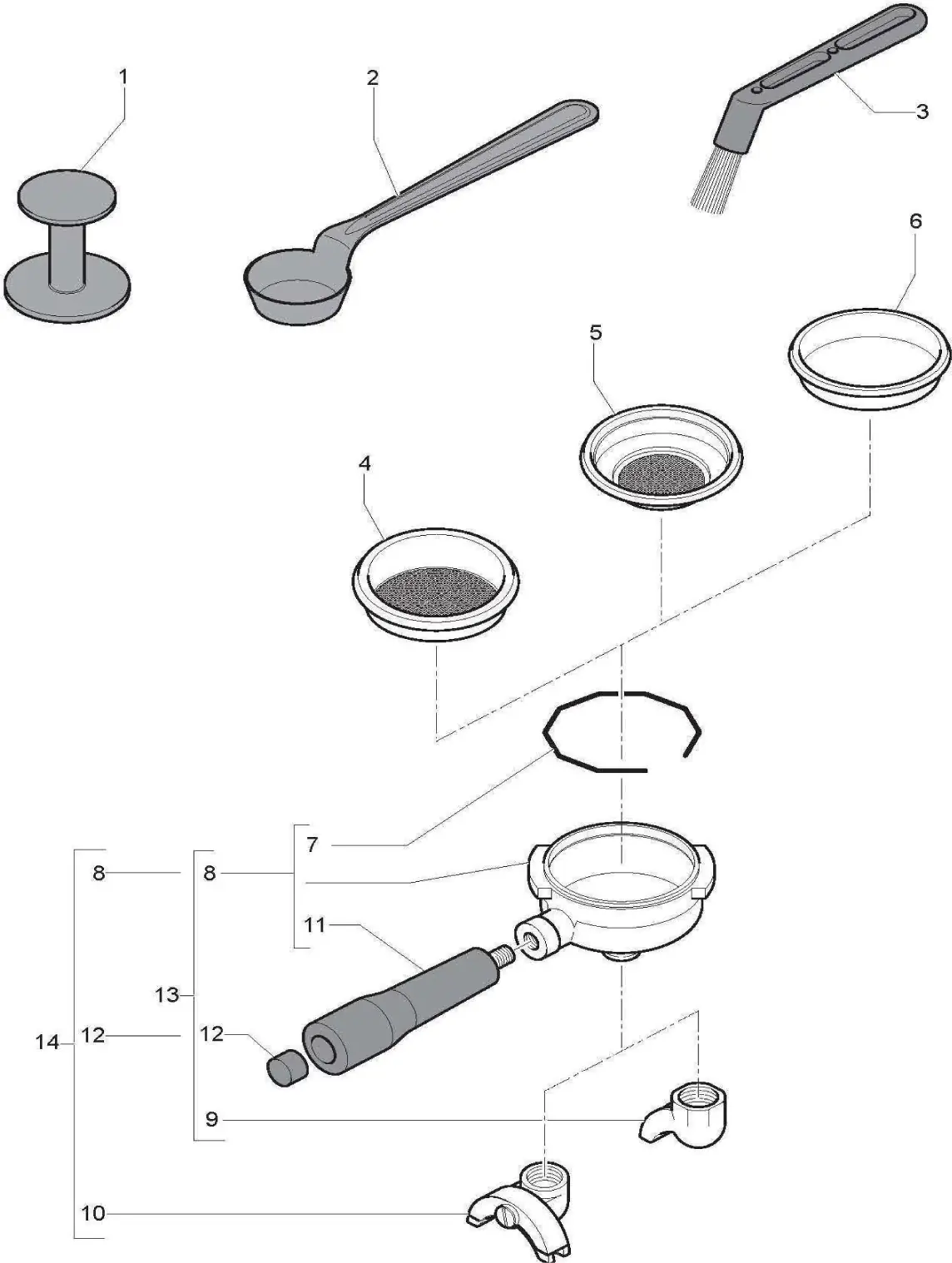

ECM-Barista-parts-diagram-06
# SKU
1 C639900764
2 C639900710
3 R210
4 C619900670
5 C619900669
6 C619900106
7 C619900098
8 C699900232
9 C229900562
10 C229900566
11 B7371502
12 B5373915CM
13 C699900233
