TABLE 1 STREGA Mod. S – TOP

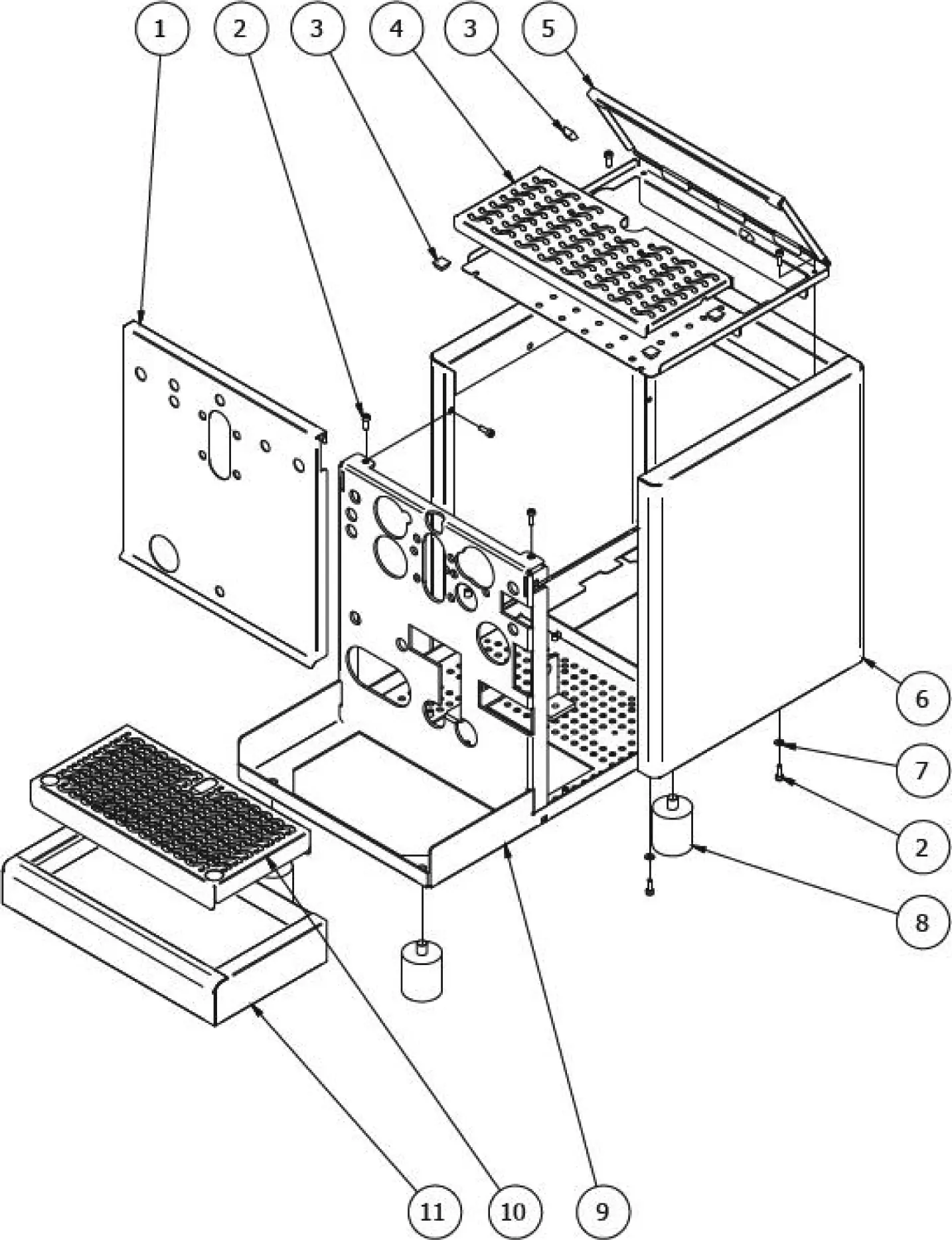

Exploded Parts Diagram of a metal box or cabinet, similar to the Bezzera Strega, showing 11 labeled parts—panels, screws, feet, and grills—with arrows indicating assembly sequence and connections between components.

#	SKU
1	5074466.01SG (from 02.03.16)
1	5074466SG (up to 01.03.16)
2	7816002
3	7474217
4	5074616LW
5	5961602.01
6	5344025.01
7	7809804
8	7474218
9	5340003.05LL
10	5074617LW
11	5340503DL

TABLE 1A STREGA Mod. R

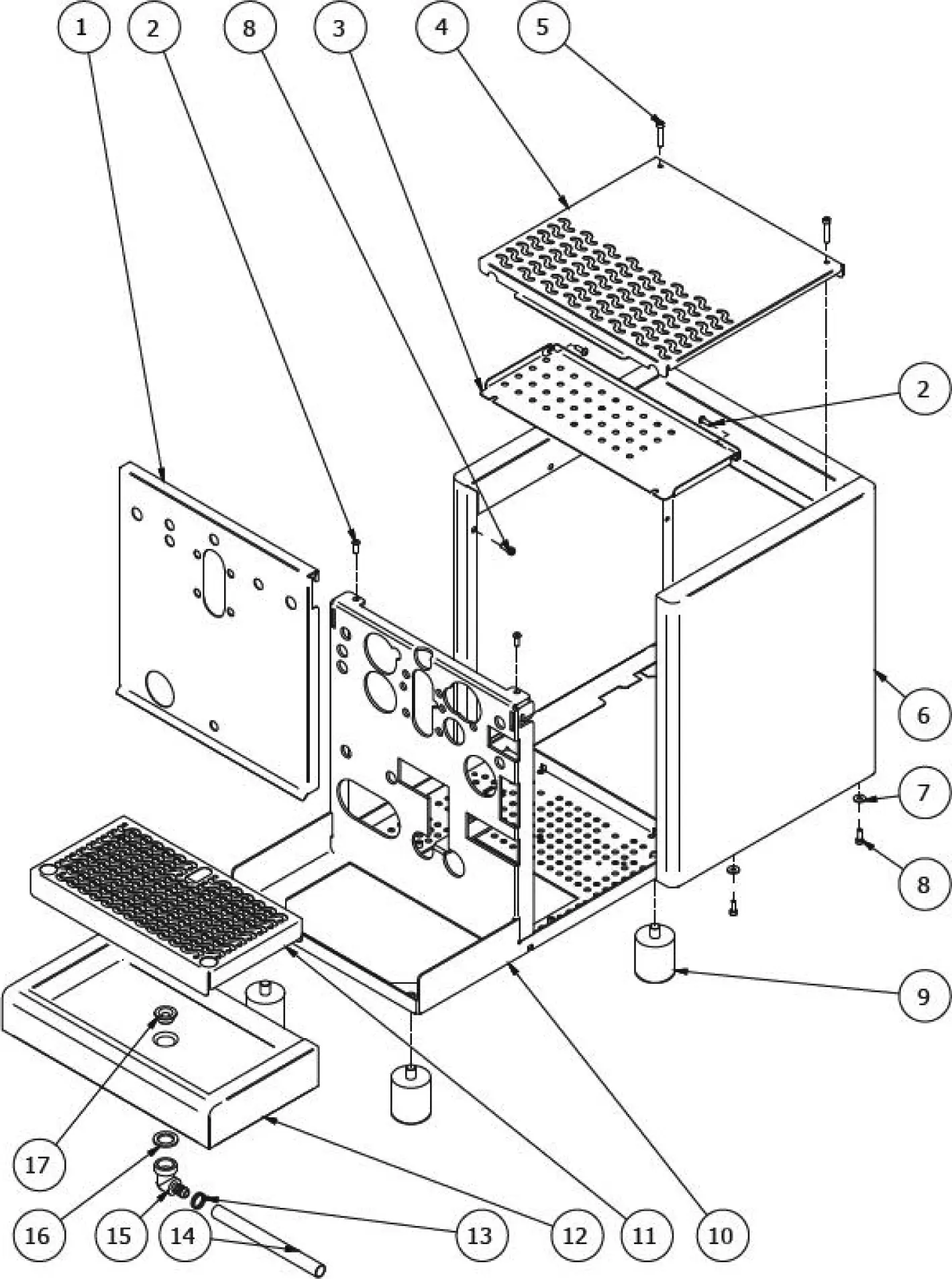

Exploded parts diagram of an electronic enclosure, similar to a Bezzera Strega, showing numbered components—panels, a perforated top, base, mounting feet, buttons, wiring, and internal hardware—with lines pointing to each part.

#	SKU
1	5074466SG (up to 01.03.16)
1	5074466.01SG (from 02.03.16)
2	7819901
3	5056330LW
4	5074620LW
5	7819911
6	5344025.01
7	7809804
8	7816002
9	7474218
10	5340003.05LL
11	5074617LW
12	5340503LL
13	7611502
14	7303502
15	5224403.01
16	5492022
17	5225230

TABLE 2 STREGA Mod. S

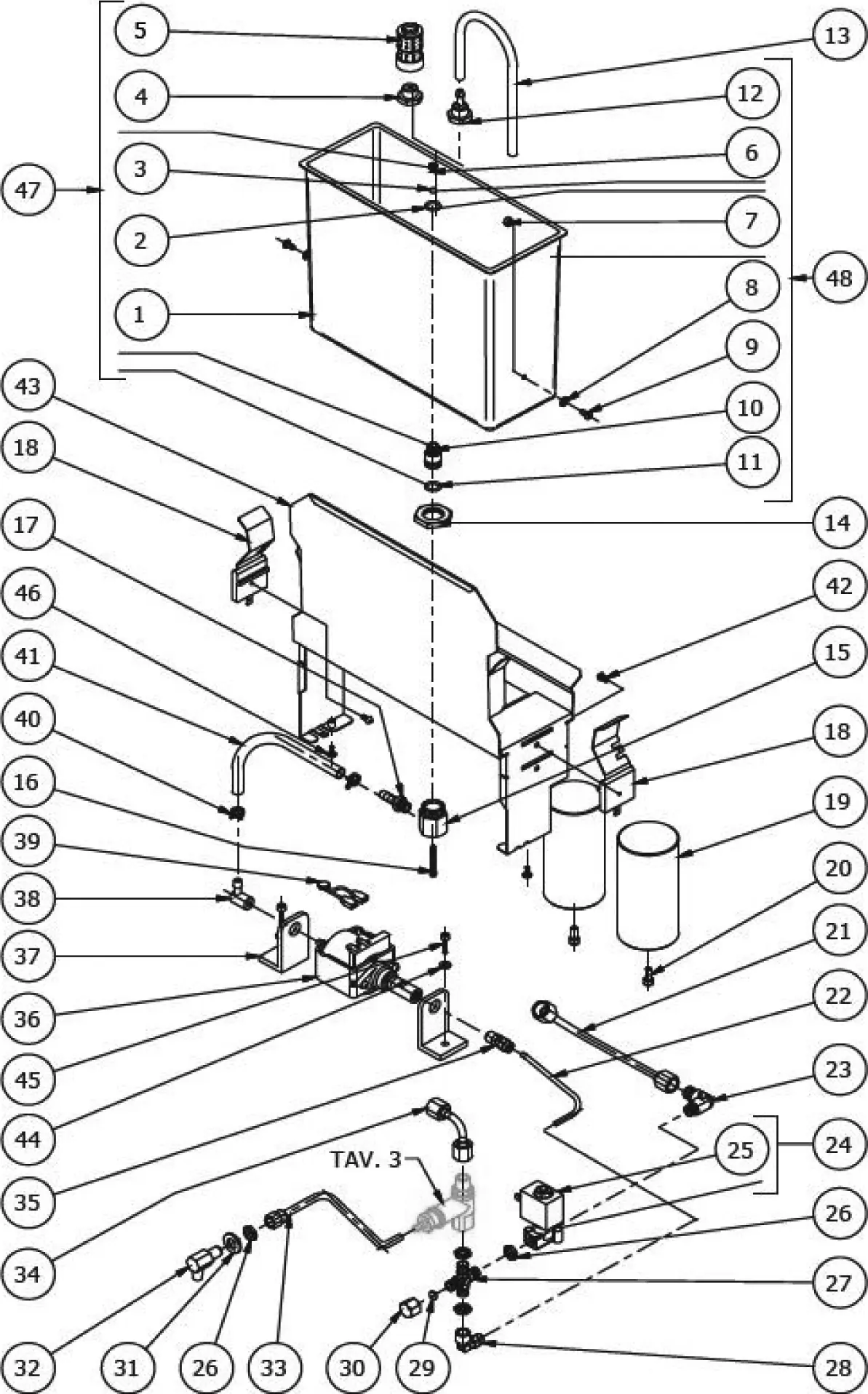

Exploded Parts Diagram showing numbered components of a sink system, including the basin, faucet, pipes, connections, valves, and other plumbing parts—similar in clarity to a Bezzera Strega schematic—with lines pointing to each part for easy identification.

#	SKU
1	7373006.03
2	7496073.01
3	5471509
4	5302065
5	7374002
6	5471521.01
7	7812601
8	7374004
9	7819908
10	5224617
11	7496076
12	5224414
13	5194540
14	5221830
15	5225228
16	7826206
17	5225246
18	5471535
19	5479918CT
20	7816001
21	5162237.01LL
22	5194596
23	5301504TR
24	7701111 (115V)
	7702310 (230V)
	7702409 (240V)
25	7630327 (110V)
	7630328 (220/230V)
	7630329 (240V)
26	5221844
27	7304001TR
28	7303034TR
29	5492019
30	5221835
31	7815001
32	5283018CM
33	5194559LL
34	5162236.01LL
35	7303036TR
36	7731018 (100V C/OR)
	7731019 (120V w/ OR)
	7731022 (220V 60HZ w/ OR)
	7731020 (230V w/ OR)
	7731021 (240V w/ OR)
37	7470602
38	7303006
39	7634816
40	7611512
41	5194529
42	7809806
43	5963009.03
44	7805009
45	7816004
46	7816009
47	5963070.03
48	5963071.03

TABLE 2A STREGA Mod. TOP

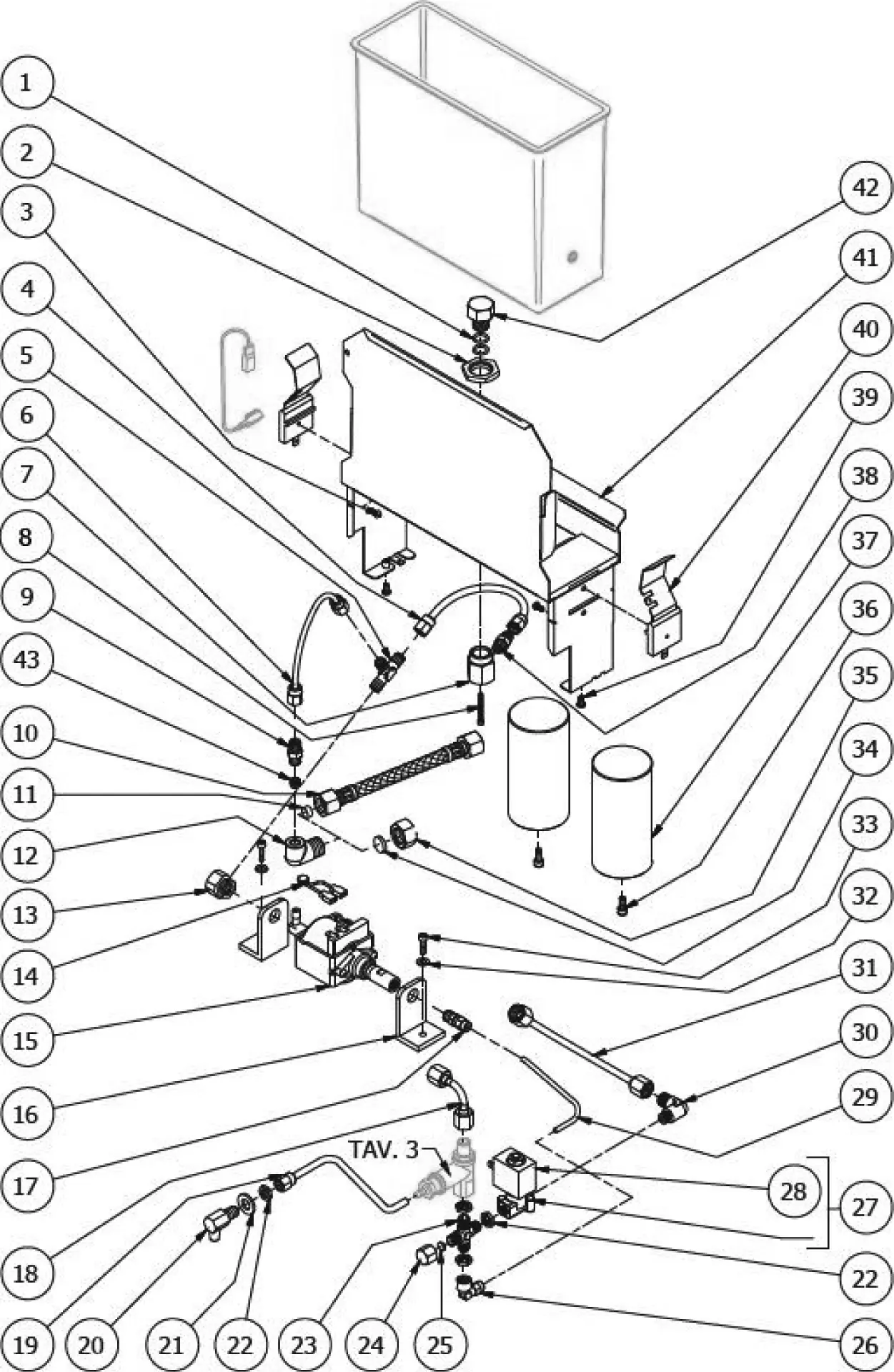

Parts Diagram: Exploded diagram of a toilet cistern assembly with numbered parts and connecting lines showing component placement, including the tank, valves, hoses, bolts, and other internal mechanisms.

#	SKU
1	7496076
2	5221830
3	7809806
4	5194598LL
5	7304514TR
6	5194597LL
7	5225228
8	7826206
9	7304502LA
10	7200512
10	7200514 (3/8)
11	5471032 (FILTER)
11	7492004 (GASKET D8.5 X 4.2 X 1.5)
12	5301519 (3/8)
12	7304507TR (1/8)
13	5225278
14	7634816
15	7731018 (100V C/OR)
	7731019 (120V WITH OR)
	7731022 (220V 60HZ WITH OR)
	7731020 (230V WITH OR)
	7731021 (240V WITH OR)
16	7470602
17	7303036TR
18	5162236.01LL
19	5194559LL
20	5283018CM
21	7815001
22	5221844
23	7304001TR
24	5221835
25	5492019
26	7303034TR
27	7702310 (230V)
	7702409 (240V)
	7701111 (115V)
28	7630328 (220/230V)
	7630329 (240V)
	7630327 (110V)
29	5194596
30	5301504TR
31	5162237.01LL
32	7805009
33	7816004
34	5492019 (D8 X 2 ASBESTOS FREE)
34	5492011 (D15X3)
35	5221835 (1/8)
35	5221819 (3/8)
36	7816001
37	5479918CT
38	7304502TR
39	7816009
40	5471535
41	5963009.03
42	5226416
43	5223013

TABLE 2B STREGA Mod. R

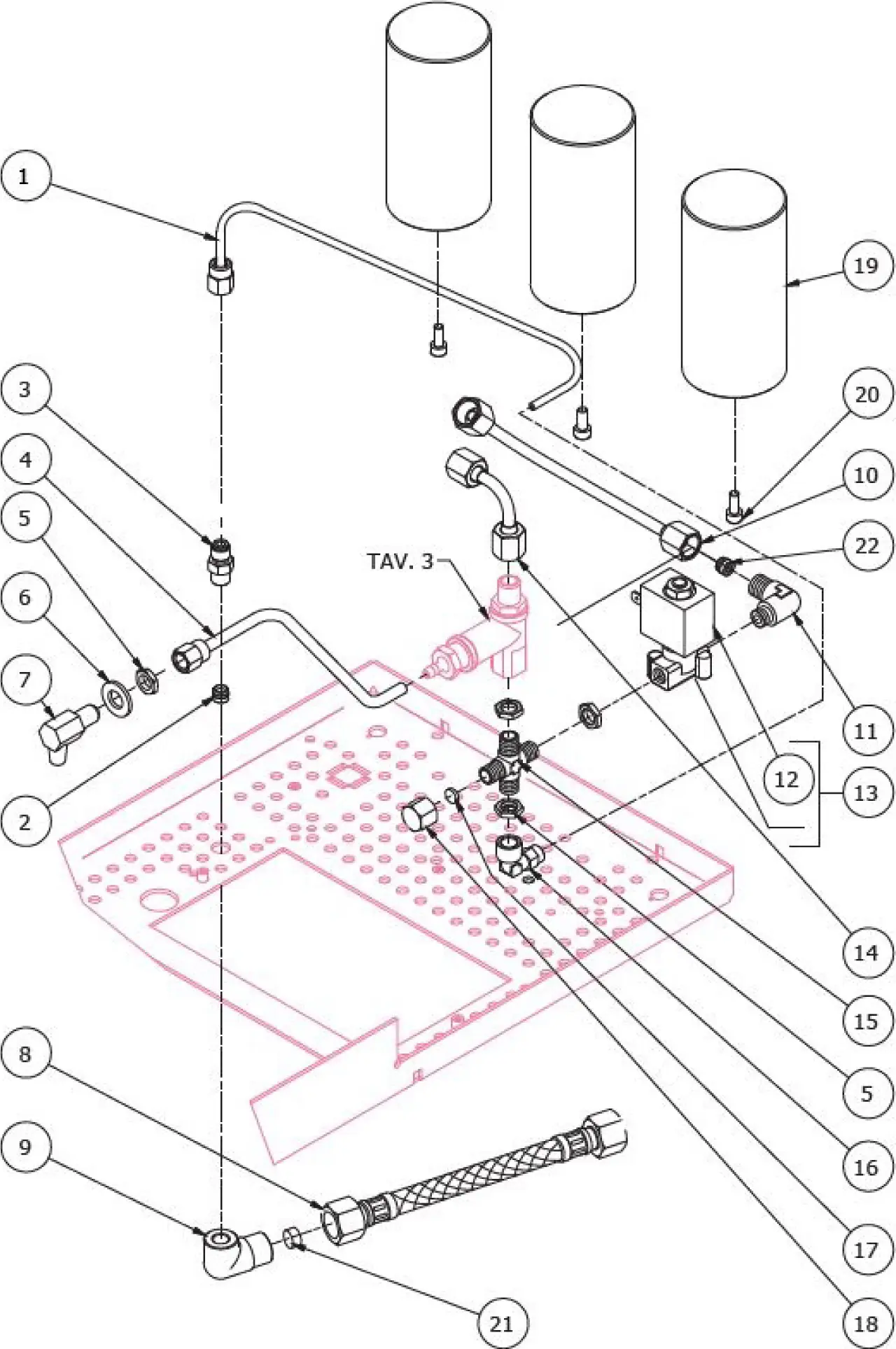

Exploded technical parts diagram showing numbered components of a Bezzera Strega mechanical or plumbing system, with pipes, tanks, fittings, and a perforated base plate, all clearly labeled with lines pointing to each part.

#	SKU
1	5194574.01LL
2	5223013
3	7304502LA
4	5194559LL
5	5221844
6	7815001
7	5283018CM
8	7200512
8	7200514 (3/8)
9	5301519 (3/8)
9	7304507TR (1/8)
10	5162237.01LL
11	5301504TR
12	7630328 (220/230V)
	7630329 (240V)
	7630327 (110V)
13	7702310 (230V)
	7702409 (240V)
	7701111 (115V)
14	5162236.01LL
15	7304001TR
16	7303034TR
17	5492019
18	5221835
19	5479918CT
20	7816001
21	7492004 (GASKET D8.5 X 4.2 X 1.5)
21	5471032 (FILTER)
22	5223003

TABLE 3 – (up to 30/10/2012) STREGA

Exploded Bezzera Strega parts diagram of a mechanical valve assembly with labeled parts 1–11, showing components such as springs, screws, and seals, along with an L-shaped tool on the left and a T-shaped valve at the center.

#	SKU
1	5302017TP
2	5471505
3	5224615TP
4	7496018
5	5283049
6	5493001
7	5224619TP
8	5471506.01
9	7496052
10	5302072
11	5965165

TABLE 3 – (from 31/10/2012 ) STREGA

Exploded Parts Diagram of a valve assembly for Bezzera Strega, with numbered springs, washers, nuts, and connectors showing the order and position of each component for assembly or repair.

#	SKU
1	5302017TP
2	5471505
3	5224615TP
4	7496018
5	5283053TP
6	5493042
7	5224620TP
8	5471539
9	7496052
10	5302077TP
11	5965212.01AL
12	5471019

Exploded parts diagram of a Bezzera Strega cylindrical mechanical component with 31 labeled parts, including fittings, connectors, valves, wires, sensors, and housing elements, shown disassembled for identification and assembly reference.

#	SKU
1	7400901
2	5162234LL
3	5265819
4	5265812
5	5192001
6	5225205
7	7452509.02
8	5225413
9	7452511
10	5162239.01LL
11	5162233LL
12	7433013
13	5162288LL
14	5162318LL
15	5495007
16	5329019DC-AL
17	5301504TR
18	5192301
19	5302006TP
20	5721127TP (1350W 110V)
20	5722240TP (220/240V - 1250/1450W)
21	5492025
22	5221813
23	5492008
24	5227002
25	7434009
26	5227007
28	5302005
29	7432522
30	5320501.02BL
31	7433001

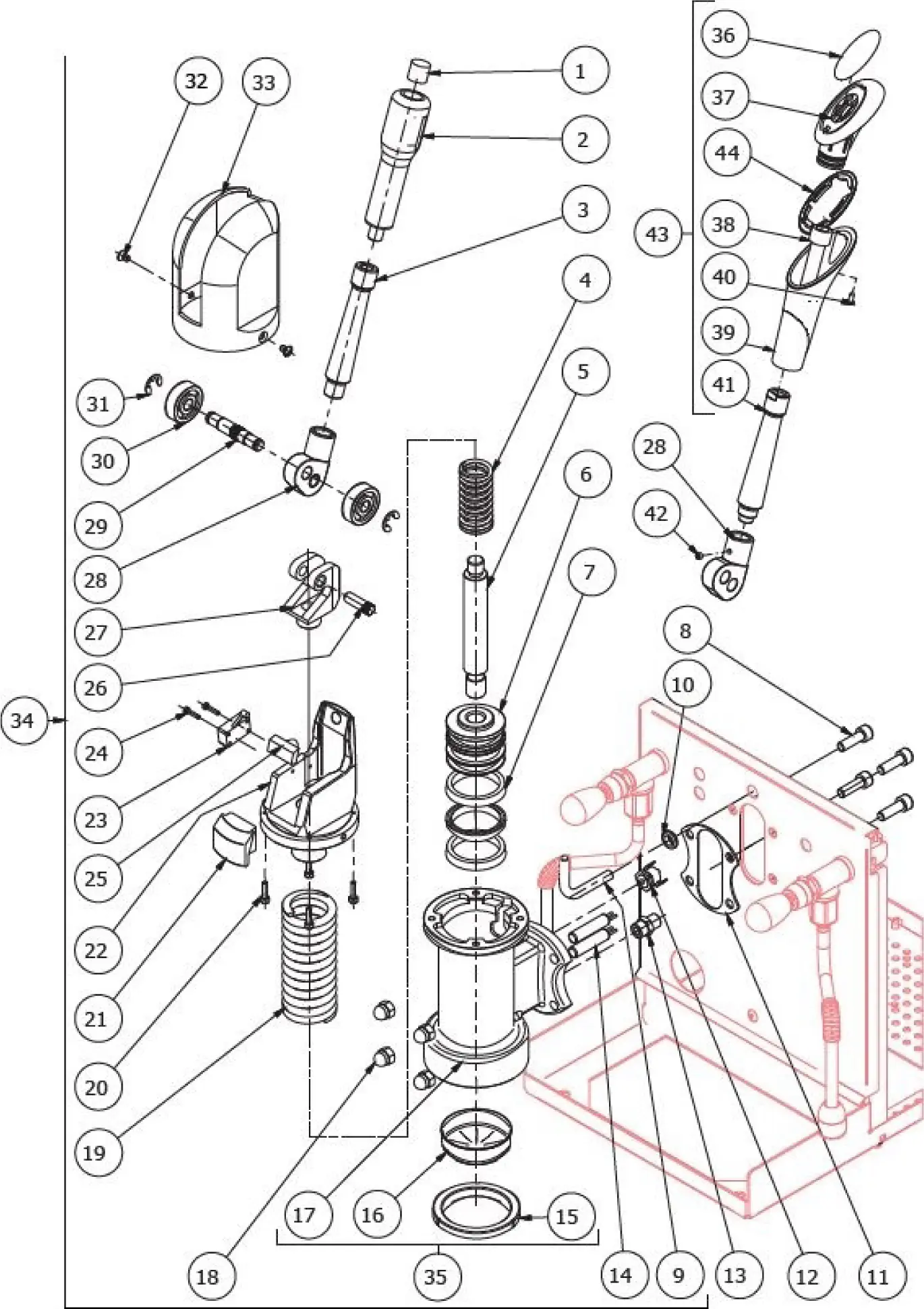

Exploded parts diagram of a Bezzera Strega espresso machine showing numbered components, including springs, levers, and cylindrical parts with detailed views of assembly. Certain components and outlines are highlighted in red.

#	SKU
1	5373915CM
2	7371502
3	5263202CM
4	5471538
5	5260201
6	5224201
7	7491001
8	7816015
9	5163284CM
10	7613007
11	7493017
12	7634808
13	5302009
14	5963098.01 (220/240V)
14	5963097.01 (110V)
15	7493020
16	5470512
17	5283052TW
18	5221863CM
19	5471537
20	7816004
21	5473002.01
22	5287507
23	5963110.01
24	7826203
25	5473001
26	5244007CN
27	5284501.01NC
28	5287003NC
29	5244006
30	7471801
31	7800601
32	7817401
33	5370604CM
34	5963563 (110V (only TANK-TOP VERSION))
	5963562 (220/240V (only TANK-TOP VERSION))
	5963567 (220/240V (only WATER SUPPLY VERSION))
	5963566 (110V (only WATER SUPPLY VERSION))
35	5283052.01R
36	5371205
37	5371204
38	7816026
39	5371203
40	7809806 (3,5X8 PLASTITE)
40	7809810 (3.5X8)
41	5263203CM
42	7812802
43	5960510.01
44	7493021

TABLE 6 – (up to 20/09/2011) STREGA

Exploded Bezzera Strega parts diagram showing numbered mechanical components, fittings, and hardware arranged around a central rectangular plate with holes, all linked by lines for easy identification.

#	SKU
1	7371511.01
2	5222823CM
3	5221826CM
4	5225610
5	5260204DL
6	5471513
7	5261801
8	5494004
9	5283047TW
10	5496042
11	5224603TP
12	5225410TP (H26)
12	5302079 (from 05.10.2012)
13	5964085AL
14	7496072
15	5471532
16	5190501
17	7496073
18	5221872TW
19	7371003
20	7496083
21	7305010
22	7479958
23	7305013
24	7479975
25	5225608
26	5260203DL
27	7496084
28	7479959
29	5964084AL
30	5302064

TABLE 6 – (up to 28/01/2014) STREGA

Exploded Parts Diagram showing numbered mechanical components, including bolts, washers, brackets, and fittings for the Bezzera Strega, assembled around a central rectangular plate with labeled callouts for each part.

#	SKU
1	7371511.01
2	5222823CM
3	5221826CM
4	5225610
5	5260204DL
6	5471513
7	5261801
8	5494004
9	5283047TW
10	5496042
11	5224603TP
12	5302079 (from 05.10.2012)
12	5225410TP (H26)
13	5964085AL
14	7496072
15	5471532
16	5190501
17	7496073
18	5221872TW
19	7371003
20	7496084
21	7305014
22	7479990TW
23	5225608
24	5260203DL
25	7496084
26	7479985TW
27	5964084AL
28	5302064

TABLE 6 – (from 29/01/2014 ) STREGA

Exploded technical parts diagram showing numbered components of the Bezzera Strega around a central mounting plate, with connecting lines and part labels for easy assembly reference.

#	SKU
1	7371511.01
2	5222823CM
3	5221826CM
4	5225610
5	5260204DL
6	5471513
7	5261801
8	5494004
9	5283055TW
10	5496042
11	5224603TP
12	5225417TP
13	5964085.01AL
14	7496072
15	5471532
16	5190501
17	5494017
18	5221872TW
19	7371003
20	7496084
21	7305014
22	7479990.01TW
23	5225608
24	5260203DL
26	7479985.01TW
27	5964084.01AL
28	7496052

TABLE 7 – (up to 01/03/2016) STREGA

Exploded parts diagram showing assembly of an electronic device with labeled components including a case, switches, power cable, power supply, circuit board, sockets, and hardware. Each part is numbered and aligned for assembly—ideal for Bezzera Strega.

#	SKU
1	7633622
2	7633621
3	7372507
4	7614007
5	7614006
6	7551001 (USA PLUG 125V 15A)
	7551003 (USA PLUG 250V 20A)
	7555001 (SCHUKO PLUG)
	7554001 (ENGLISH PLUG)
	7552001 (AUSTRALIAN PLUG)
	7555003 (SWITZERLAND PLUG)
7	7633326
8	7635419 (16A 220/230V)
	7635420 (16A 240V)
	7635403 (30A 110V (only TOP version))
	7635410 (30A 220/230V (only TOP version))
	7635401 (30A 240V (only TOP version))
	7635418 (16A 110V)
9	7663005R
10	7816017
11	7819404
12	7661043.01PR (220/240V)
12	7661033.02PR (110/120V)
13	5035709.01LL
13	5035718.01LL (only TOP version)
14	7819908

TABLE 7 – (from 02/03/2016 ) STREGA

Exploded parts diagram showing the assembly of an electronic device—similar to a Bezzera Strega—including case, switch, power cable, wiring, screws, plug, fuse, and electronic components, with each part numbered for identification.

#	SKU
1	7633624
2	7633625
3	7372507
4	7614007
5	7614006
6	7551001 (USA PLUG 125V 15A)
	7551003 (USA PLUG 250V 20A)
	7555001 (SCHUKO PLUG)
	7554001 (ENGLISH PLUG)
	7552001 (AUSTRALIAN PLUG)
	7555003 (SWITZERLAND PLUG)
7	7633326
8	7635419 (16A 220/230V)
	7635420 (16A 240V)
	7635403 (30A 110V (only TOP version))
	7635410 (30A 220/230V (only TOP version))
	7635401 (30A 240V (only TOP version))
	7635418 (16A 110V)
9	7663005R
10	7816017
11	7819404
12	7661043.01PR (220/240V)
12	7661033.02PR (110/120V)
13	5035709.01LL
13	5035718.01LL (only TOP version)
14	7819908

TABLE 8 – (up to 02/12/2012) STREGA

Line drawing of 13 numbered Bezzera Strega espresso machine parts, including a portafilter, baskets, tamper, scoop, handle, group head, clip, ring, and other components—all separated and labeled in this detailed parts diagram for easy identification.

#	SKU
1	5286017TW
2	5471527
3	7371502
4	5471026.01 (14 GRAMS WITH RUN CHANNEL)
	5471035 (16 GRAMS AISI 304 WITH RUN CHANNEL)
	5471021.01 (12 GRAMS AISI 304 WITH RUN CHANNEL)
5	7305007TW
6	5373915CM
7	5471031.01
8	5372101
9	5373001
10	7990603
11	7305006TW
12	5965582R
13	5965581R

TABLE 8 – (from 03/12/2012 ) STREGA

Exploded Parts Diagram of a Bezzera Strega portafilter assembly for an espresso machine, showing 17 numbered components including handle, basket, spring, spout, and other internal parts arranged in their assembly order.

#	SKU
1	5372101
2	5373001
3	7990603
5	5471031.01
6	5471021.01 (12 GRAMS AISI 304 WITH RUN CHANNEL)
	5471026.01 (14 GRAMS WITH RUN CHANNEL)
	5471035 (16 GRAMS AISI 304 WITH RUN CHANNEL)
7	5965592.01R (1 CUP)
7	5965591.01R (2 CUPS)
8	5471527
9	5286017TW
10	5978508.01
11	5371203
12	7816026
13	7809810
13	7809806
14	5371204
15	5371205
16	7305006TW
17	7305007TW
18	7493021

;
