Parts Diagram – Bezzera Crema PM

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
    Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

COD. 9942072 REV. 00 ed.08/21

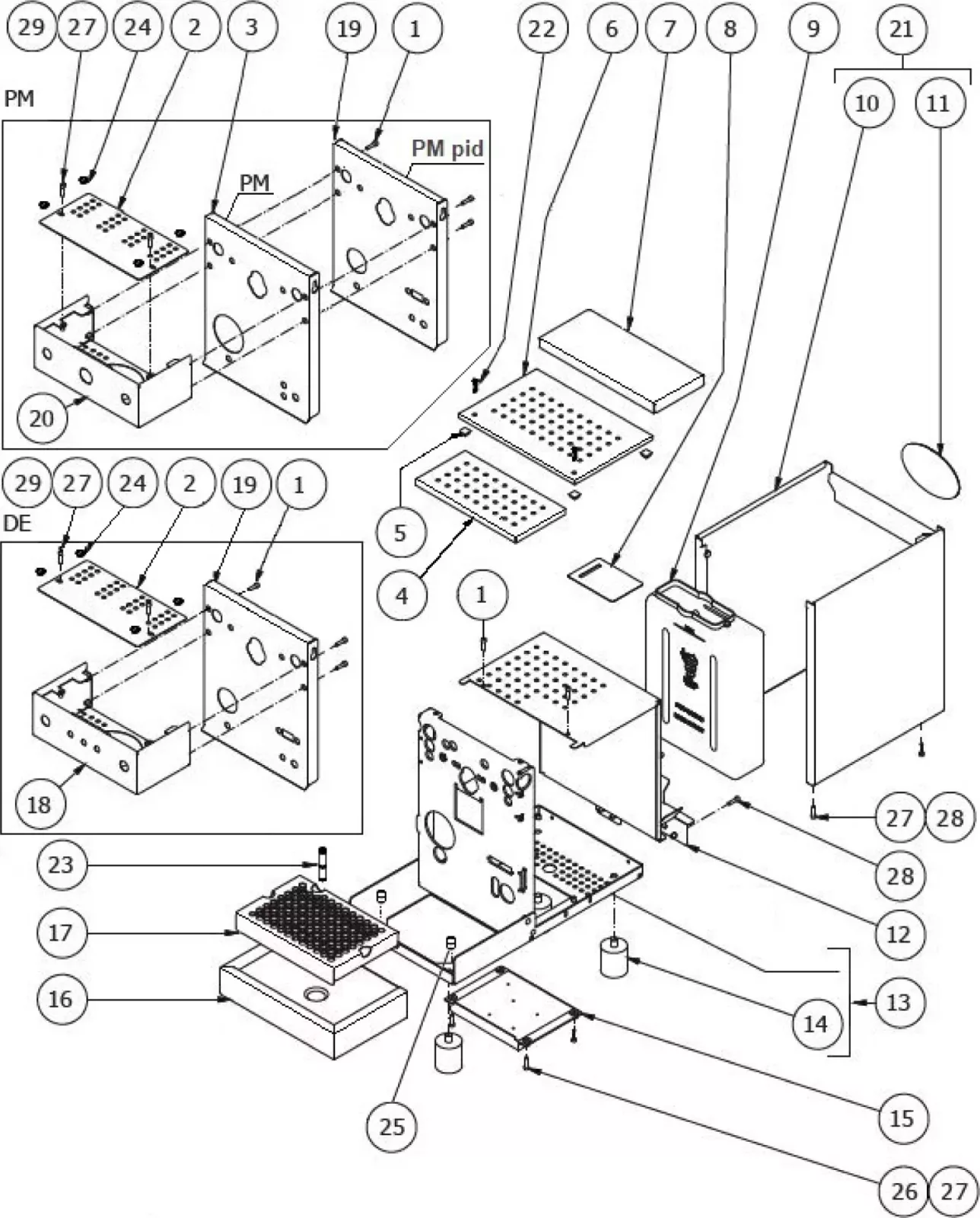

Exploded diagram of a machine with numbered parts, panels, screws, grill, internal components, and multiple views showing assembly steps and arrangement of each piece. Insets display detailed subassemblies on the left side. © 2025 1st-line.com
# SKU
1 7816002
2 5056354
3 5074478.01SG2
4 5074677LW
5 7474217
6 5074621LW (BZ07 BA)
5074682LW (BZ13 BA UL)
7 5073020.01LW
8 5125705
9 7373009.01
10 5071733LL (Stainless Steel)
5054202LL1 (White)
5054202LL2 (Red)
5054202LL3 (Black)
11 5521512
12 5963068.03LL (T.PID)
5963086.03 (BZ07 T.PID)
5963179 (BZ13/LIVIA)
5963180 (BZ13/LIVIA w/ PID)
13 5964633.01 (BZ13 DE/PM PID)
5964634.01 (BZ13 DE/PM)
14 7474218
15 5373102.01
16 5340510
17 5074622.01LW
18 5094905SG
19 5074477.01SG2
20 5094909SG
21 5071733LLR (Stainless Steel)
5054202LL1R (White)
5054202LL2R (Red)
5054202LL3R (Black)
22 7817801
23 5262001
24 7999904
25 7372511
26 7816004
27 7816211
28 7816009
29 7819908
Line diagram of a coolant system showing a labeled expansion tank and numbered hoses, connectors, clamps, and valves, with reference codes for each component. © 2025 1st-line.com
# SKU
1 5162304LL
2 5162303.01LL
3 7303033
4 5194610
5 5194571
6 5301504AL
7 5194635
8 7702322.01 (220/230V)
7701123.01 (110V)
7702415.01 (240V)
10 7304543TR
11 5225411AL
12 7496085.01
13 7303006
14 7452516
15 7496018
16 7303034TR
19 5965212.01AL
20 5302077AL
21 7496052
22 5302017AL
23 5471539
24 5471505
25 5224620AL
26 5224615AL
27 5493042
28 7496018
29 5283053TP
30 5471019

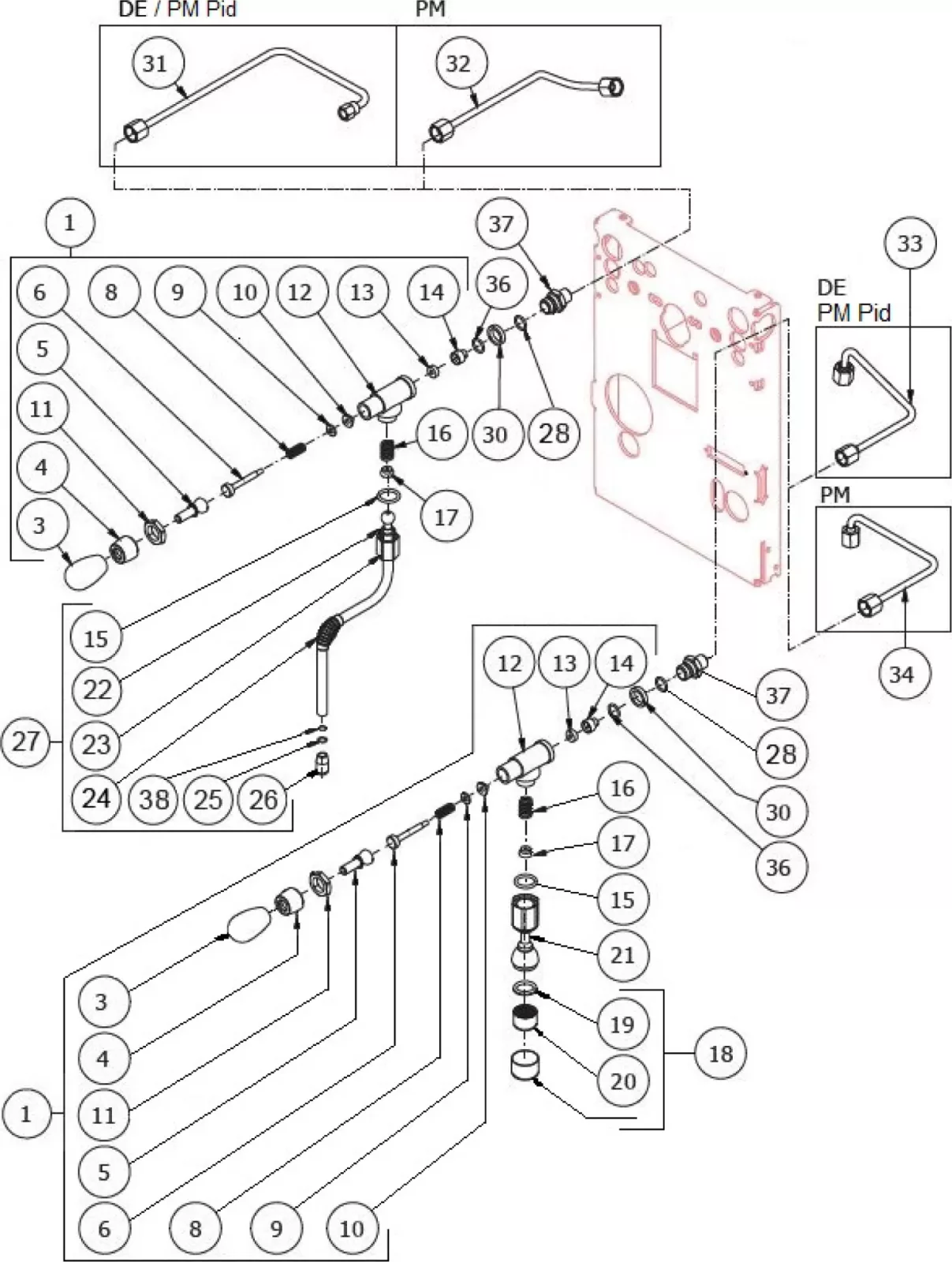

Diagram showing a labeled parts breakdown of a mechanical or plumbing assembly, with numbered components connected by lines, and three inset detail views for items 31, 33, and 34 in the corners. © 2025 1st-line.com
under construction

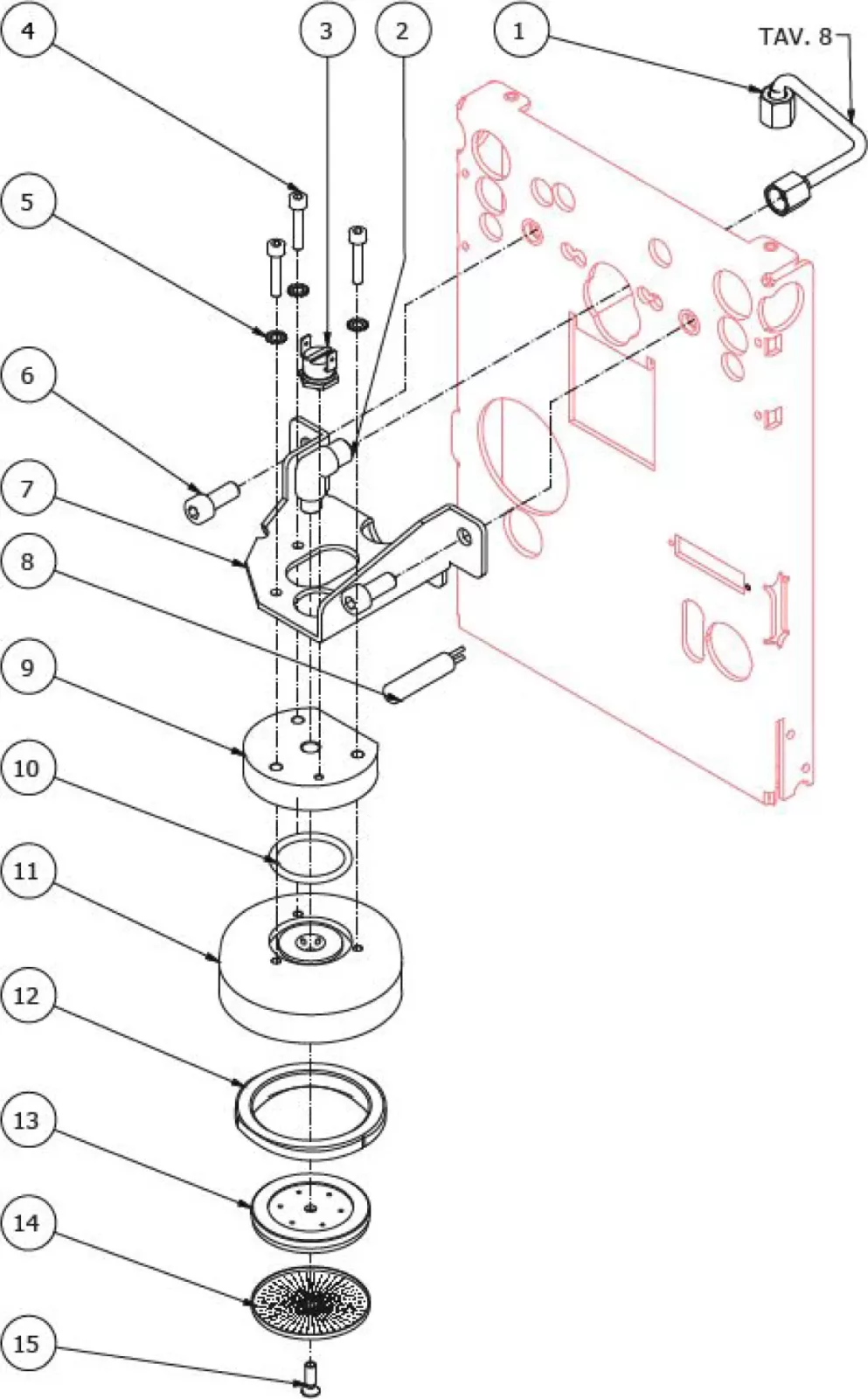

Exploded technical diagram showing multiple numbered mechanical parts, including bolts, brackets, gears, and a main housing plate, all arranged in sequential order for assembly reference. © 2025 1st-line.com
under construction

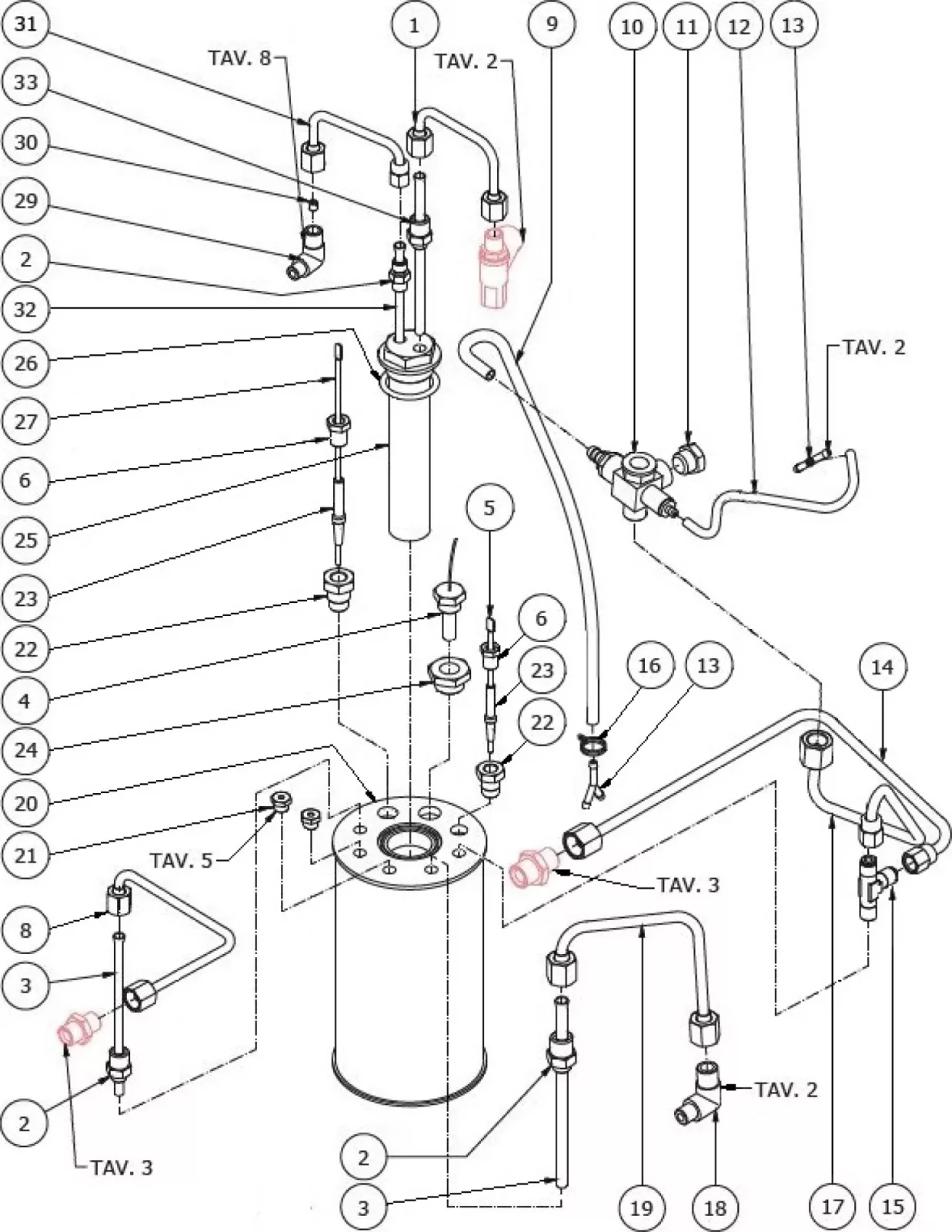

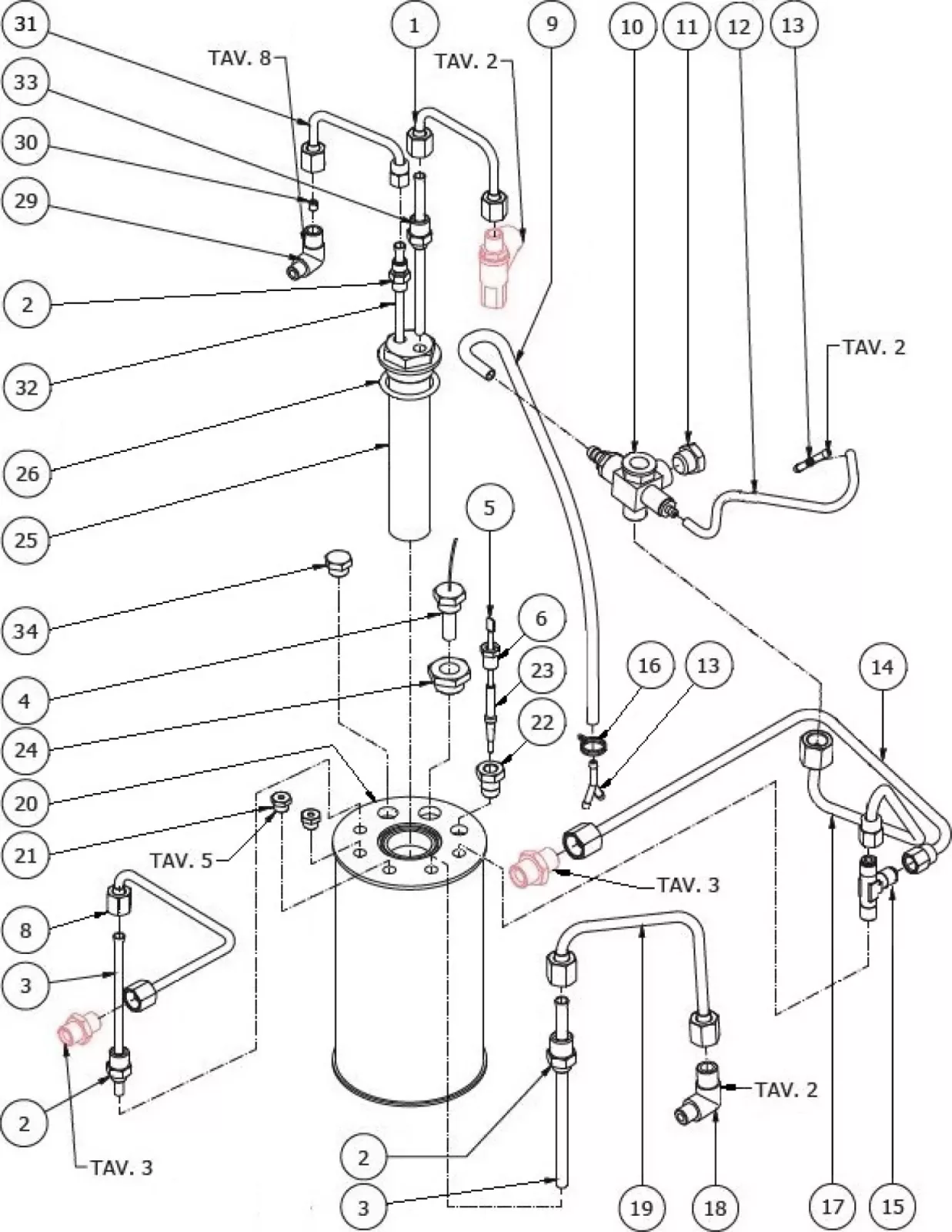

Exploded view diagram of a mechanical system with thirty-one numbered parts, showing pipes, connectors, a cylindrical tank, valves, and various fittings labeled with reference numbers and lines pointing to each component. © 2025 1st-line.com
under construction

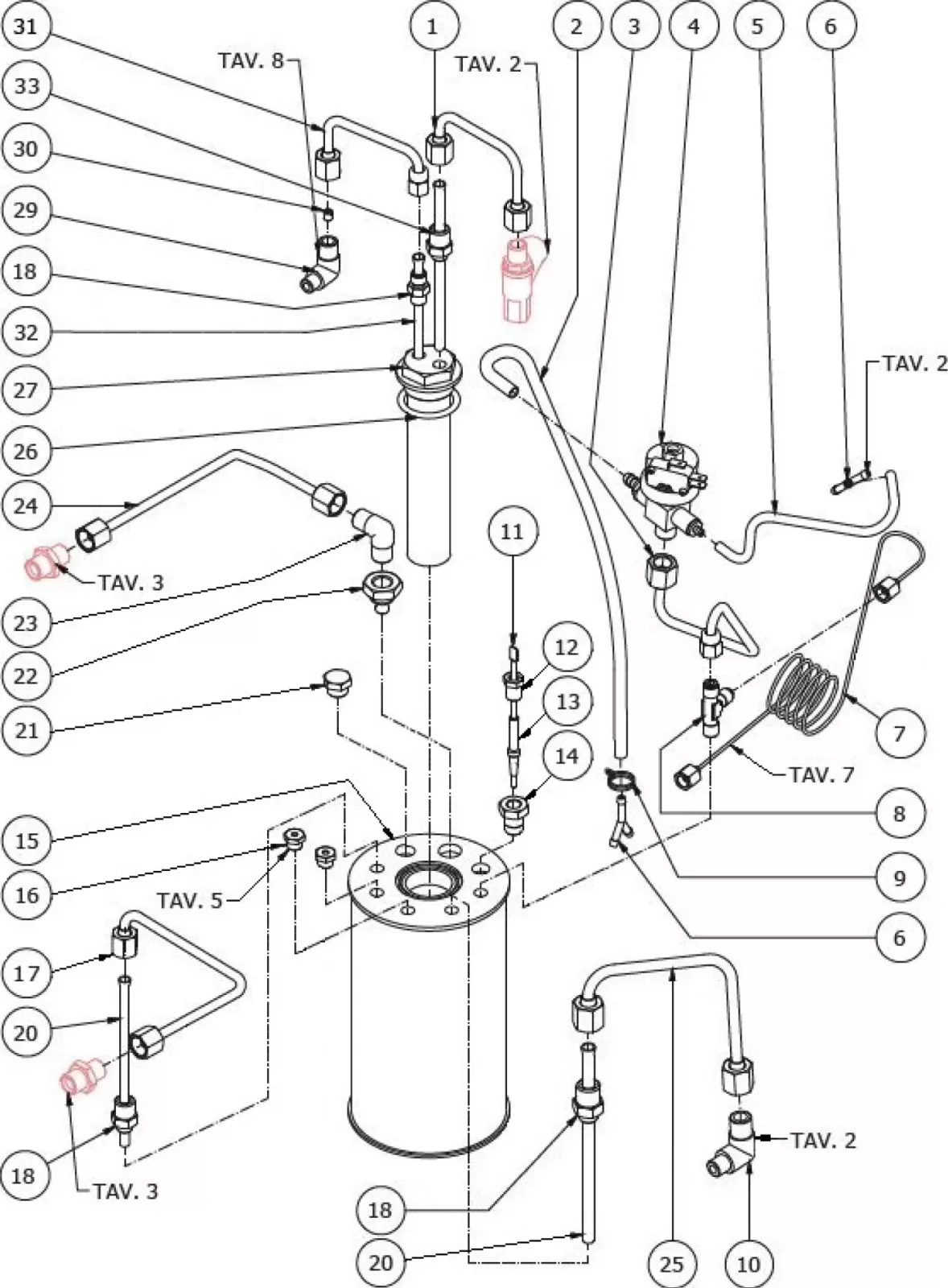

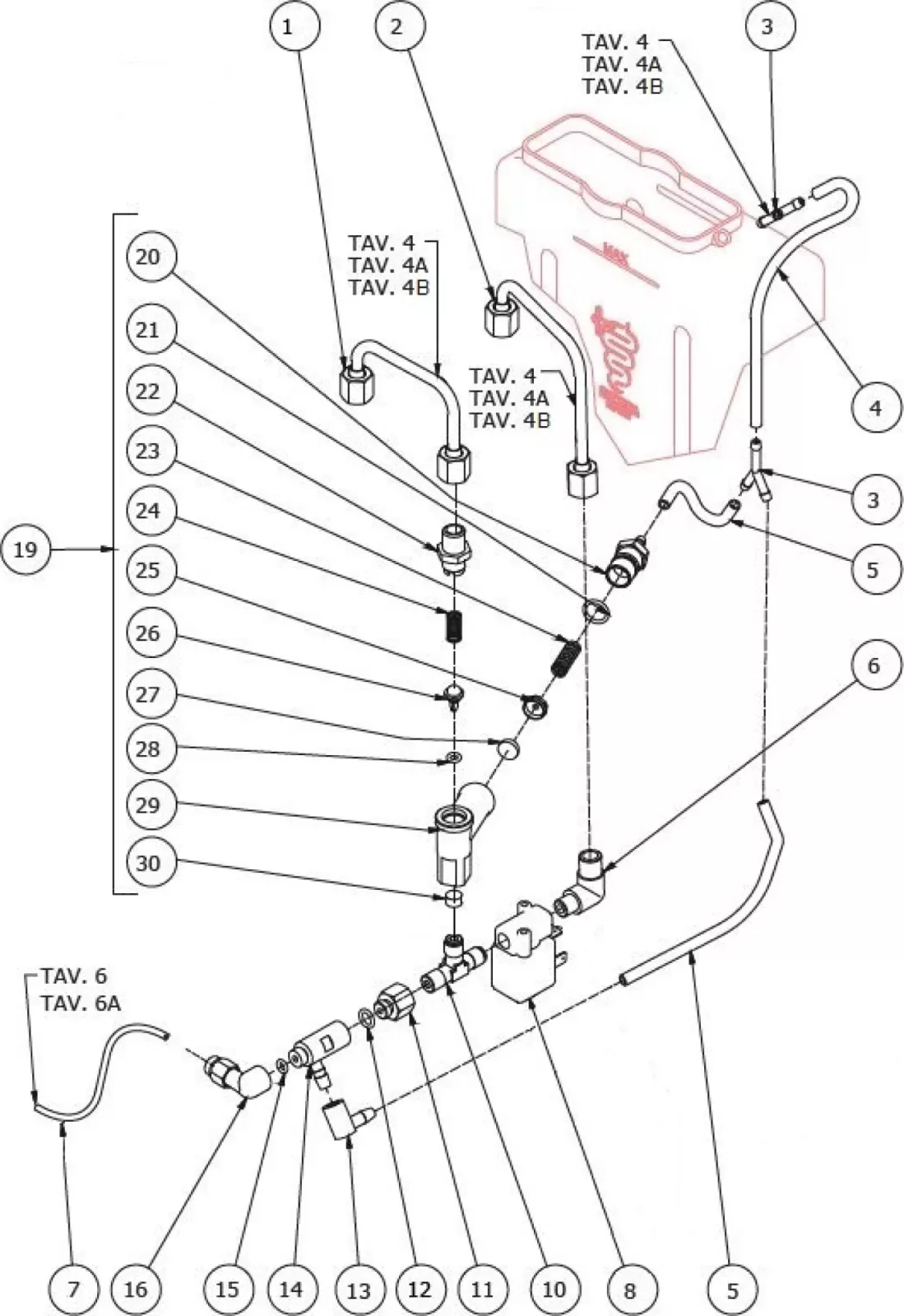

Technical diagram showing labeled components and connecting pipes of a mechanical or hydraulic system, with each part numbered and some marked with TAV. Cylindrical tanks, valves, and fittings are illustrated. © 2025 1st-line.com
under construction
Line drawing diagram of a hydraulic or pneumatic system, showing labeled pipes, fittings, valves, a cylindrical tank, and connectors with numbered parts and connections for assembly reference. © 2025 1st-line.com
under construction

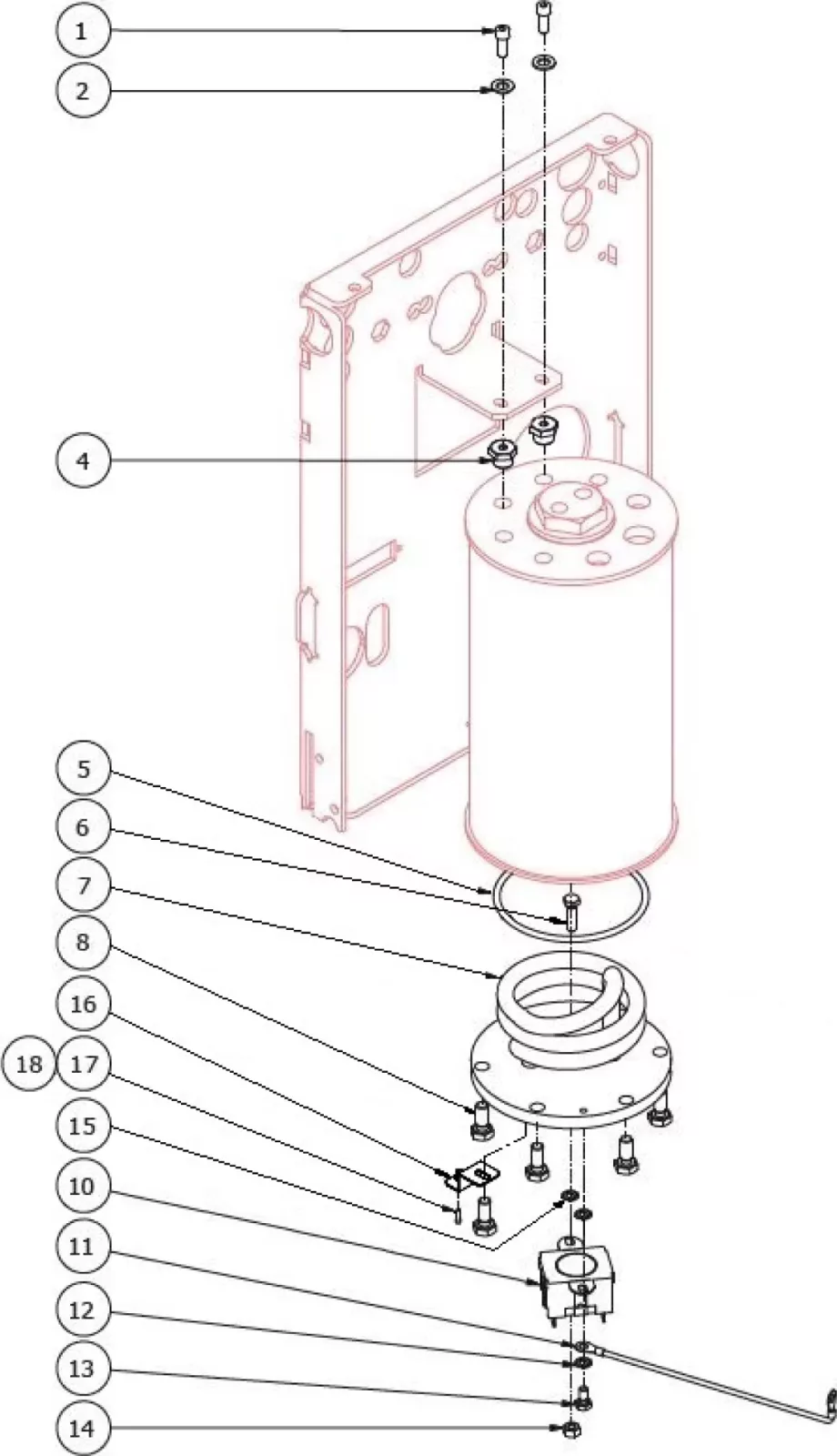

Exploded diagram of a mechanical assembly showing a vertical sequence of numbered parts, including a backplate, cylindrical component, circular base, screws, and washers connecting the components. © 2025 1st-line.com
under construction

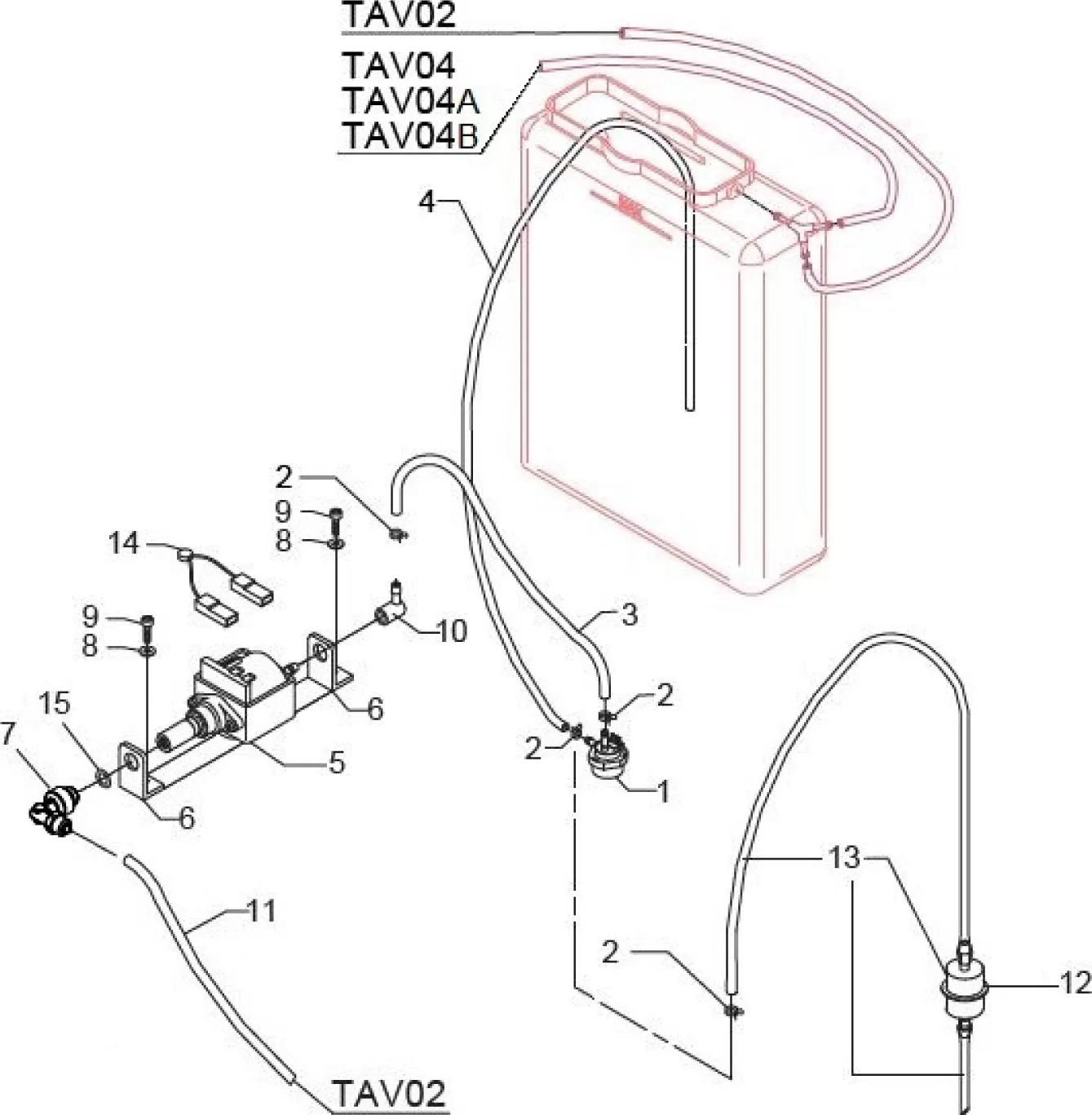

Technical diagram showing labeled components and tubing connections for a fluid container system, including a main rectangular tank, hoses, valves, and various fittings with numbered parts for assembly reference. © 2025 1st-line.com
under construction

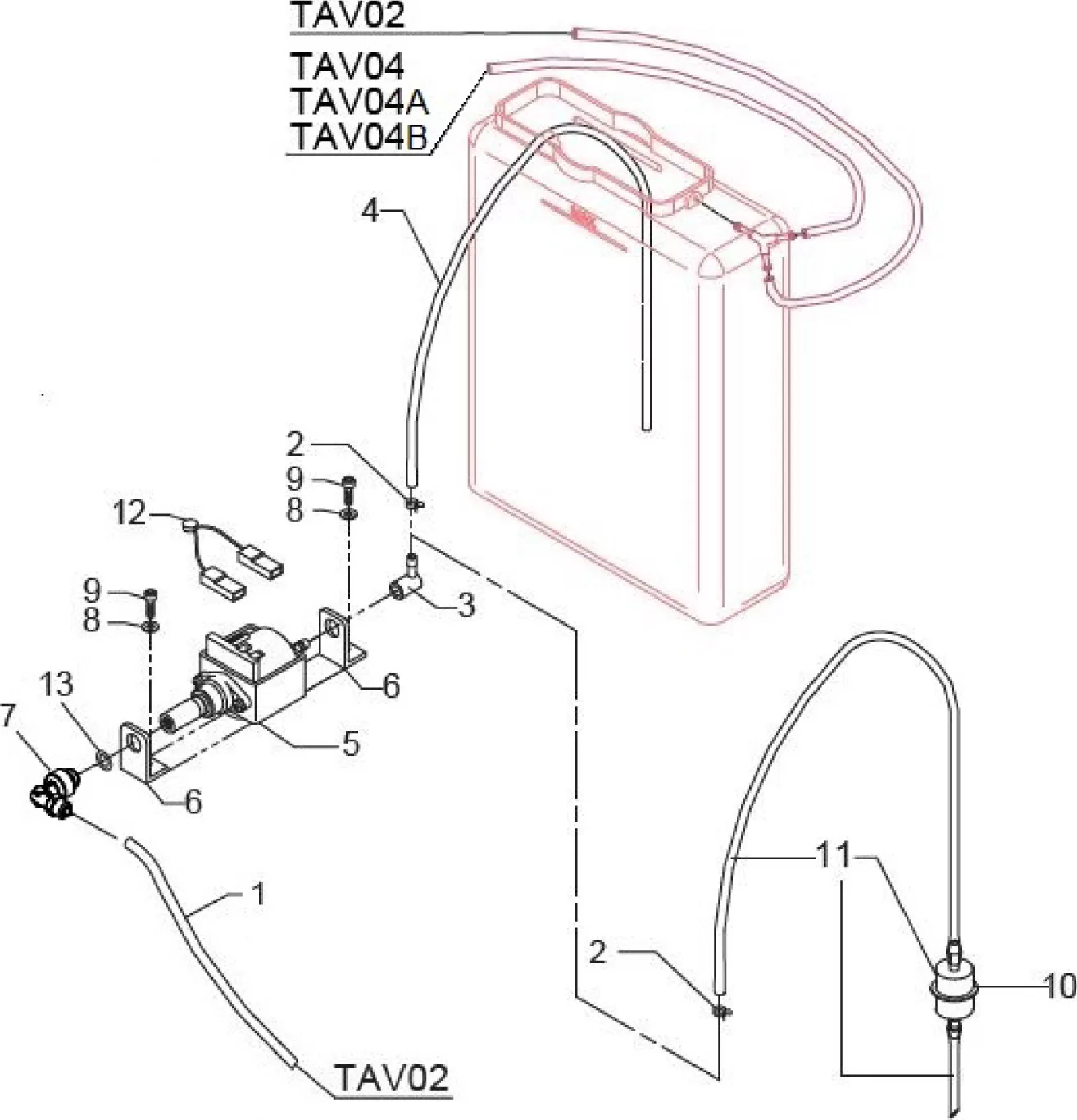

Technical diagram showing a fuel tank (TAV04) with connecting tubes, valves, and numbered components, illustrating the assembly and flow path of a fuel system. Parts are labeled with numbers for reference. © 2025 1st-line.com
under construction

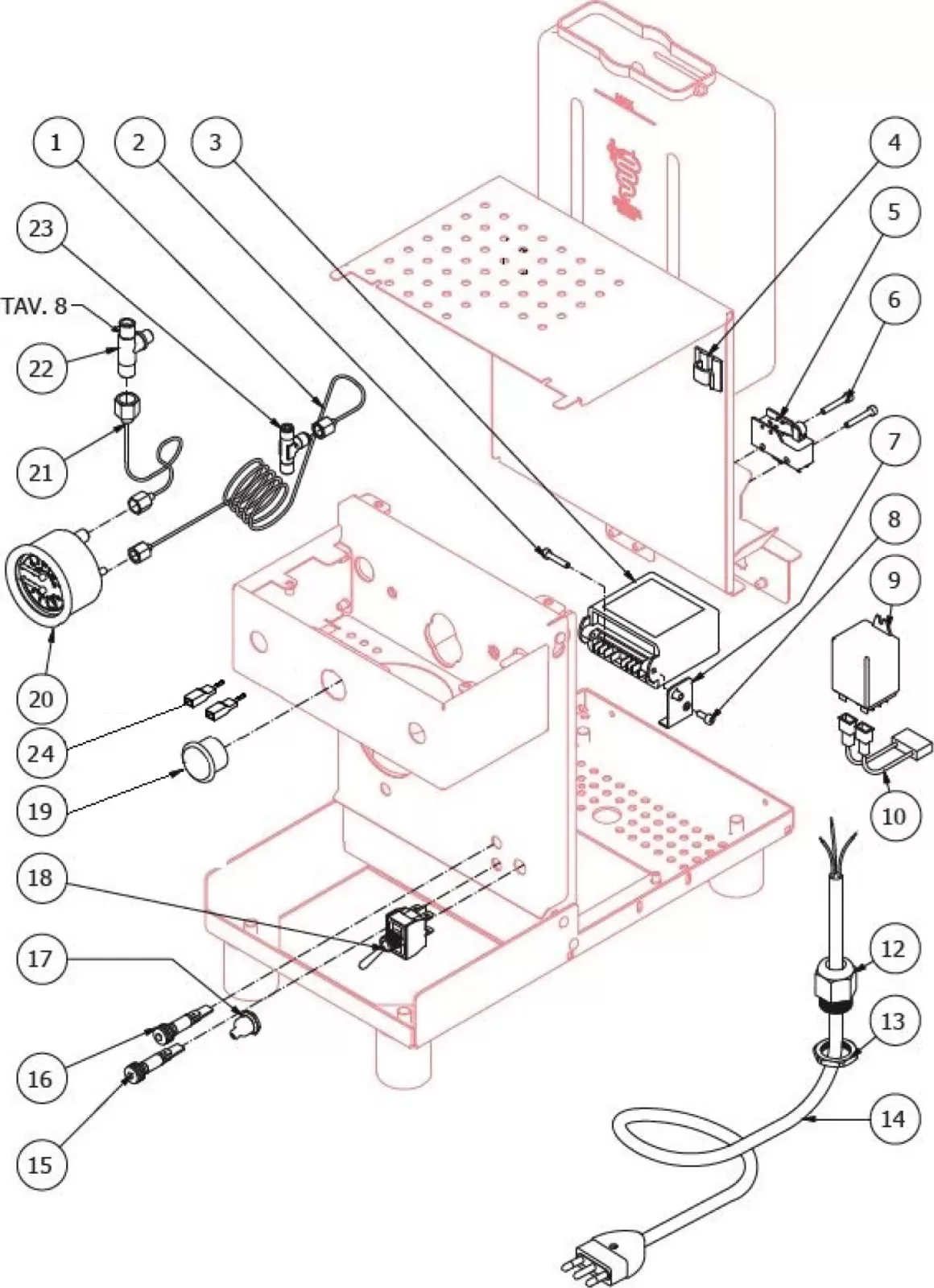

Exploded diagram of a coffee machine showing numbered parts, including the water tank, wires, power cord, heating element, switches, tubing, and screws, with components separated to illustrate assembly. © 2025 1st-line.com
under construction

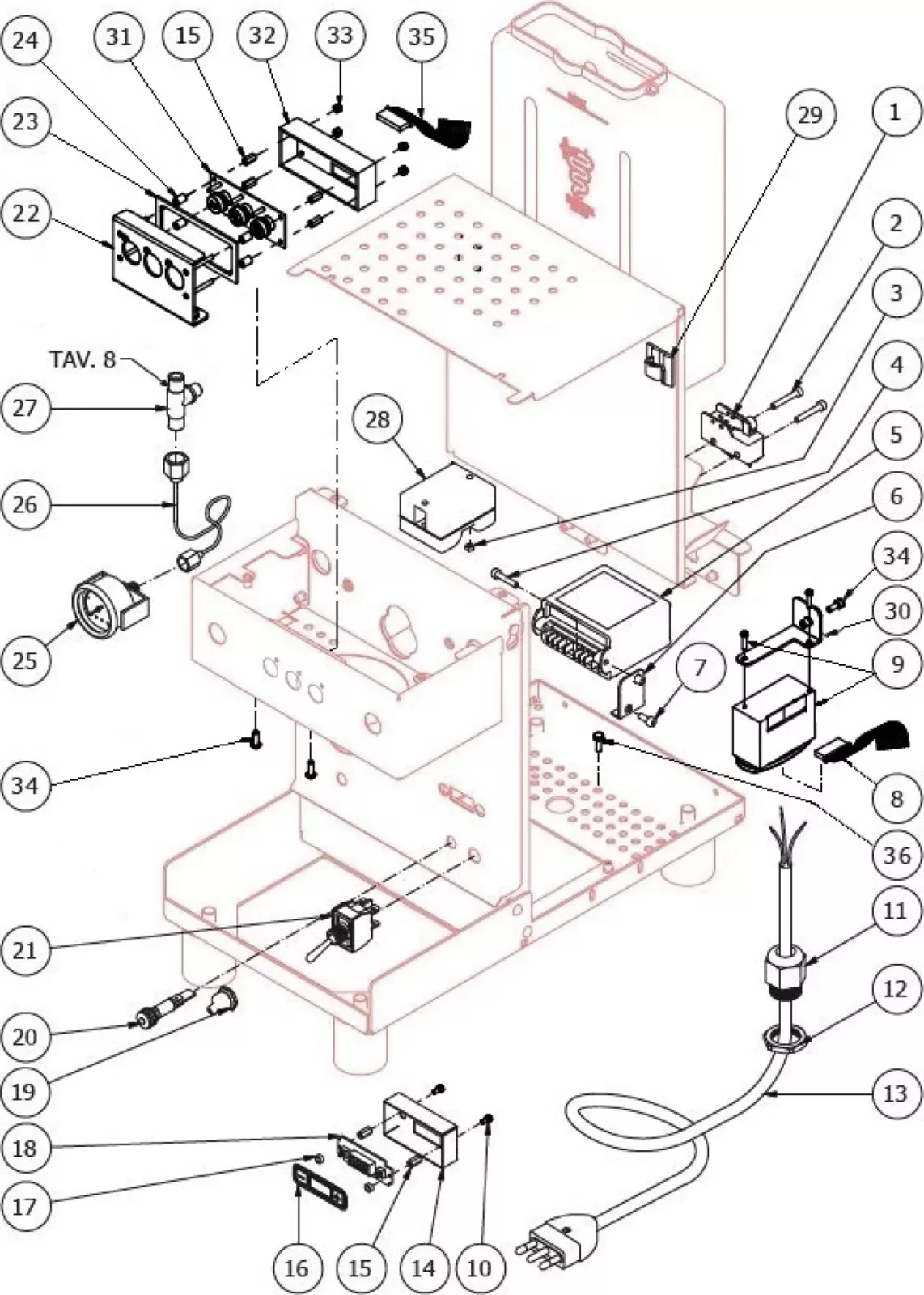

Exploded diagram of a coffee machine showing individual labeled components, including wiring, switches, a heating element, internal panels, screws, a power cord, and assembly instructions, with connecting lines indicating placement. © 2025 1st-line.com
under construction

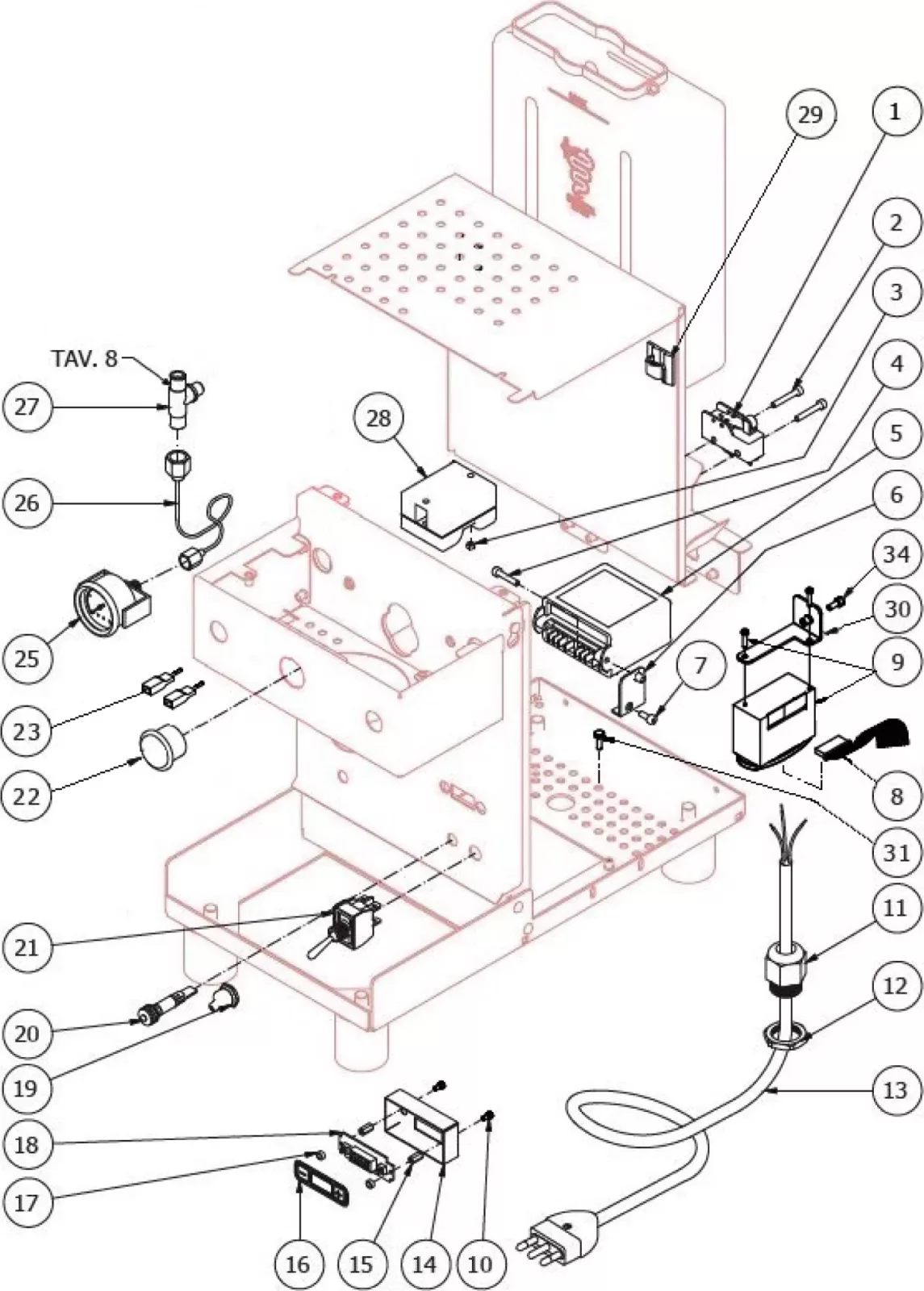

Exploded diagram of a coffee machine with numbered components, including a metal frame, power cord, switches, and various internal parts, all labeled with lines pointing to each part for assembly reference. © 2025 1st-line.com
under construction

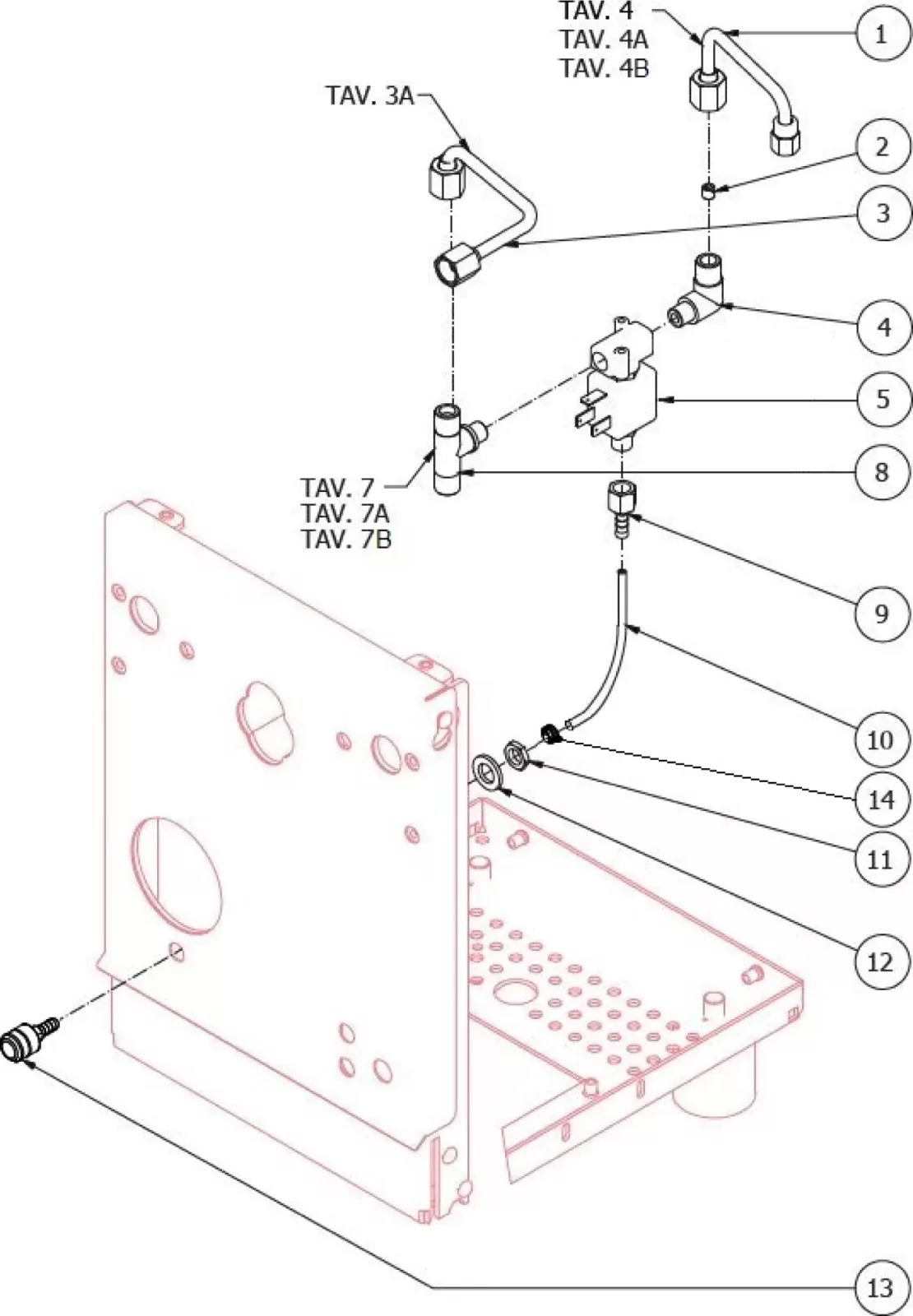

Exploded view diagram of a machine component, showing numbered parts such as pipes, valves, and connectors, with each part labeled and connected to a base panel structure. © 2025 1st-line.com
under construction

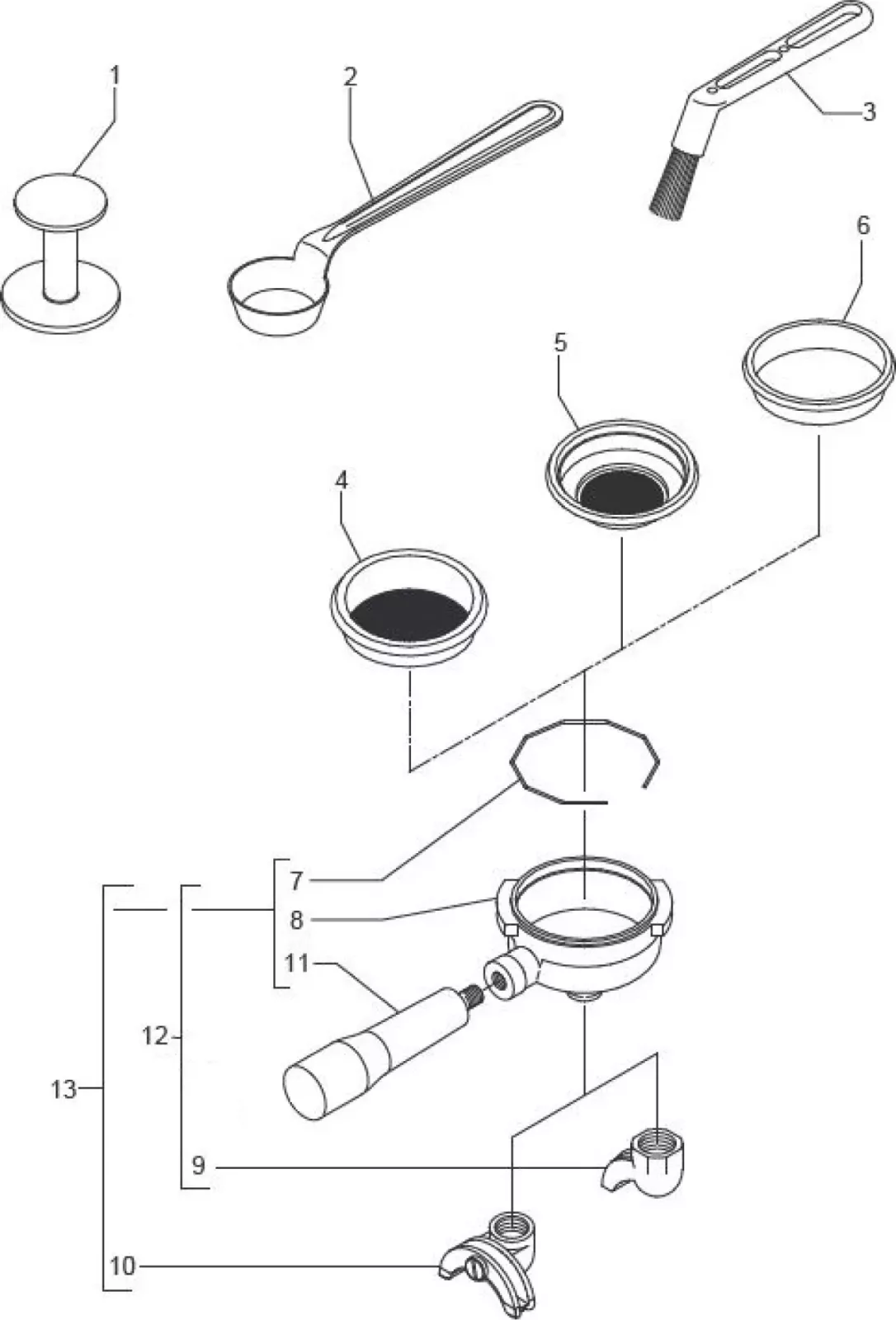

Line drawing showing labeled parts of an espresso machine portafilter assembly, including a tamper, scoop, brush, filter baskets, spring, handle, and spout, arranged in an exploded view. © 2025 1st-line.com
under construction
