Parts Diagram – Bellezza Inizio

Finding your part
  • Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website.
    Note: These parts diagrams are provided by the manufacturers. We list them on our site for informational purposes only. We do not stock every single part listed nor can we guarantee that every part is available to order.
  • If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
  • Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
  • Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
  • Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
  • Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
  • Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.

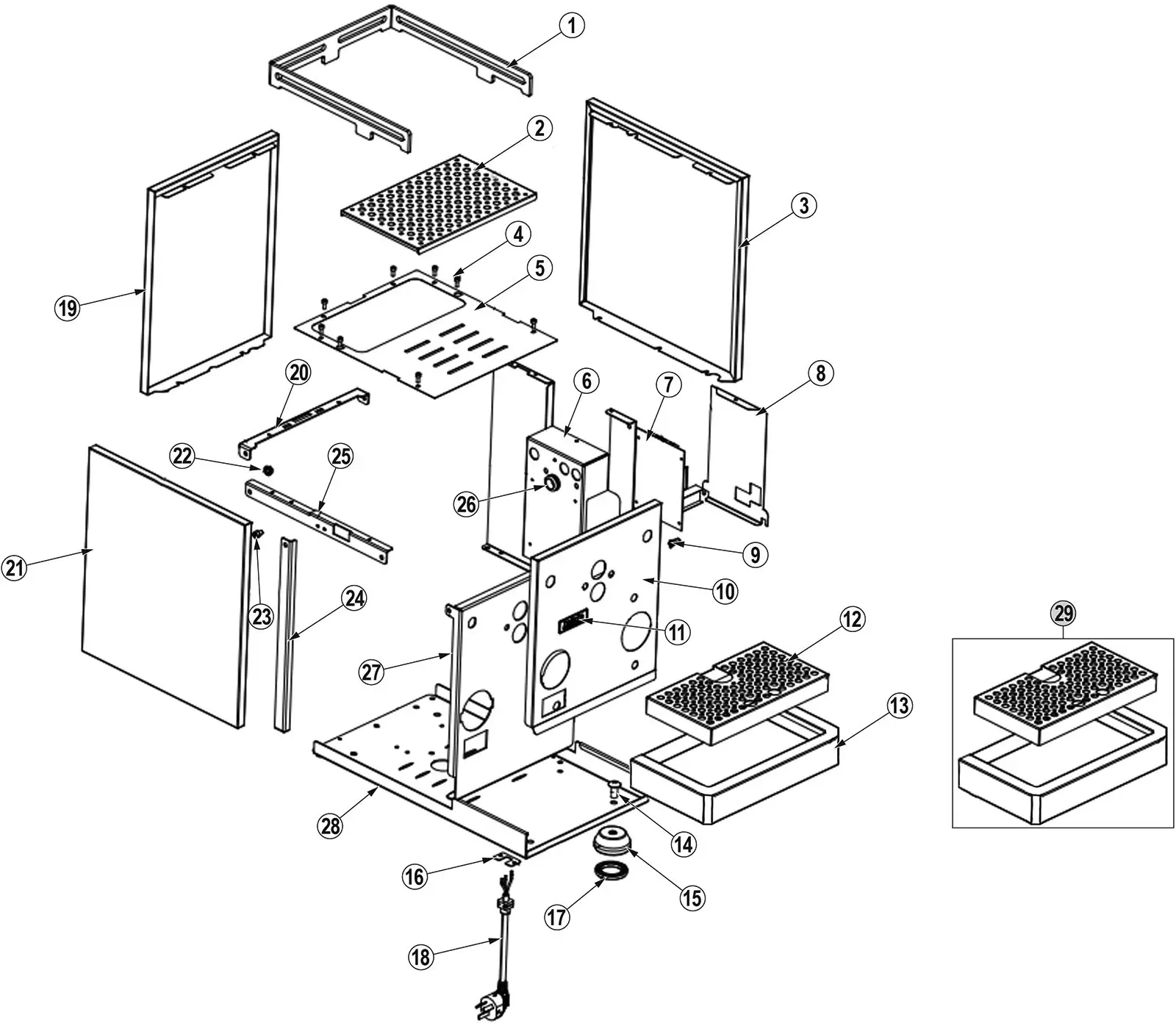

Exploded Parts Diagram of the Bellezza Inizio electronic device showing 29 numbered components, including panels, circuit boards, screws, wiring, and structural frames, with a detailed inset view of items 28 and 29 on the right.
# SKU
1 IN.005.011
2 IN.005.022
3 95.05598.VE01
95.05598.VE02
95.05598.VE03
4 IN.005.030
5 IN.005.015
6 IN.005.002
7 96.05905
96.05915.00.23
96.05915.00.42
8 IN.005.017
9 95.05564
10 IN.005.007
11 95.05524
12 95.05612
13 95.05614.VE01
14 91.05119
15 IN.005.012
16 95.0556
17 87.05076
18 96.05887
19 95.05600.VE02
20 IN.005.006
21 95.05597.VE01
95.05597.VE02
95.05597.VE03
22 IN.005.027
23 IN.005.028
24 IN.005.004
25 IN.005.005
26 IN.005.033
27 IN.005.034
28 IN.063.700
29 4.05359

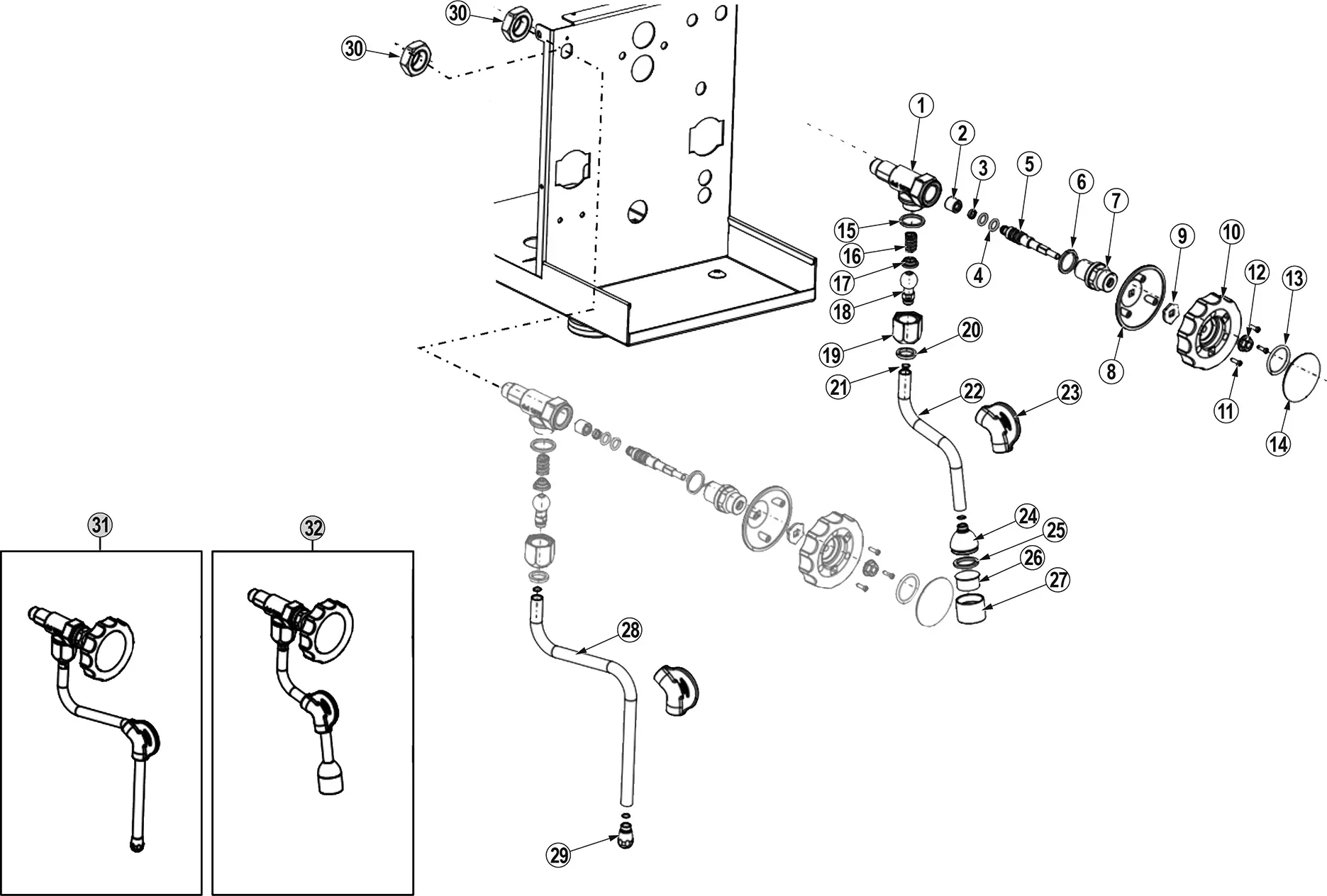

Exploded Parts Diagram of a Bellezza Inizio wall-mounted faucet assembly, showing individually numbered pipes, washers, valves, screws, and mounting bracket; inset images display two different faucet configurations.
# SKU
1 IN.096.001
2 IN.096.002
3 IN.096.003
4 IN.096.004
5 IN.096.005
6 IN.096.006
7 IN.096.007
8 87.05064
9 IN.096.009
10 IN.096.010
11 IN.096.011
12 IN.096.012
13 IN.096.013
14 IN.096.014
15 87.05064
16 13.05036
17 IN.096.017
18 22.05123
19 22.05129
20 87.05065
21 87.0507
22 22.05178
23 95.05482
24 IN.096.024
25 IN.096.025
26 IN.096.026
27 IN.096.027
28 22.05176
29 22.05134
30 IN.096.030
31 IN.096.000
32 IN.097.000

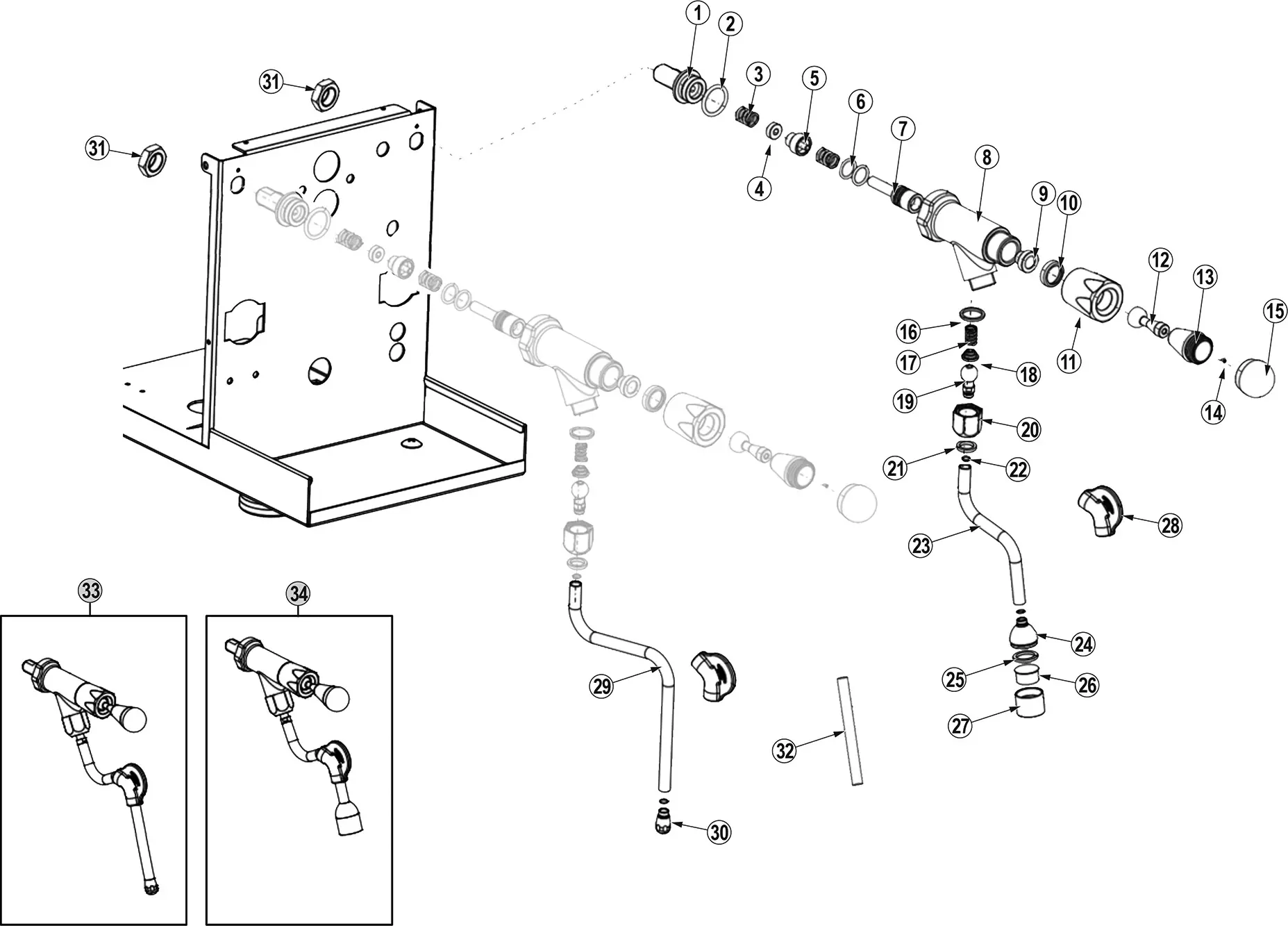

Black-and-white technical Parts Diagram showing an exploded view of a Bellezza Inizio wall-mounted faucet assembly with numbered parts, mounting plate, pipes, handles, and two detailed insets of the faucet from different angles.
# SKU
1 IN.196.103
2 IN.196.104
3 IN.196.105
4 IN.196.106
5 IN.196.107
6 IN.196.108
7 IN.196.109
8 IN.196.110
9 IN.196.111
10 IN.196.112
11 IN.196.113
12 IN.196.114
13 IN.196.115
14 91.05118
15 IN.196.116
16 87.05064
17 13.05036
18 IN.096.017
19 22.05123
20 22.05129
21 87.05065
22 87.0507
23 22.05177
24 IN.096.024
25 IN.096.025
26 IN.096.026
27 IN.096.027
28 95.05482
29 22.05126
30 22.05134
31 IN.096.030
32 IN.096.031
33 IN.196.000
34 IN.197.000

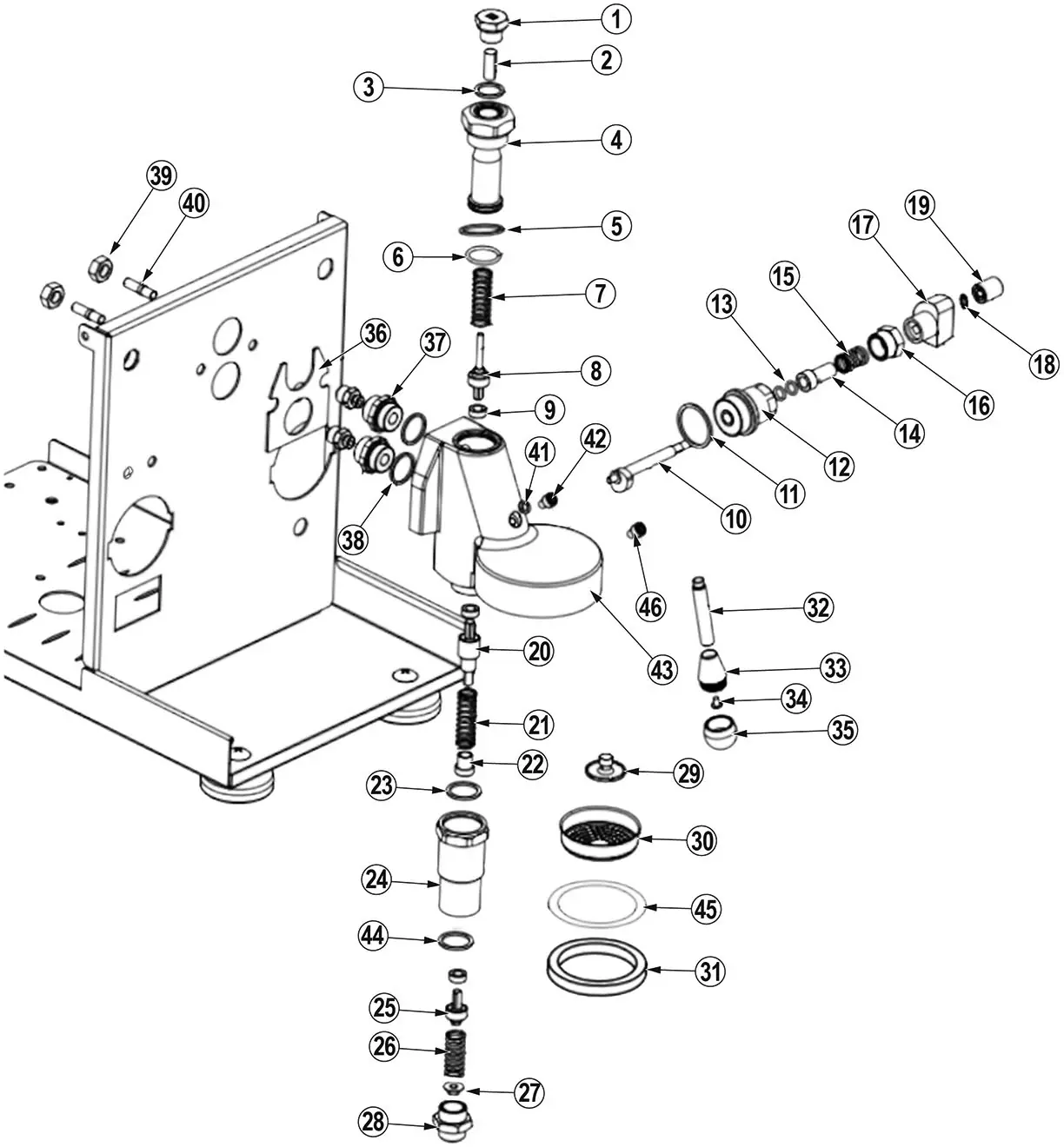

Exploded parts diagram of a Bellezza Inizio mechanical assembly showing individual components such as screws, washers, springs, and metal parts, all labeled with numbers and arranged in a detailed, organized layout.
# SKU
1 22.05161
2 95.05588
3 87.05084
4 22.05157
5 87.05085
6 87.05082
7 13.05038
8 22.05162
9 87.05088
10 22.05171
11 87.05085
12 22.0516
13 87.05087
14 22.05167
15 13.05039
16 22.05166
17 22.05165
18 93.0502
19 22.0517
20 22.05172
21 13.0504
22 22.05159
23 87.05085
24 22.05163
25 22.05169
26 13.05041
27 22.05164
28 22.05158
29 22.05168
30 14.0539
31 87.05069
32 95.05548
33 95.05563
34 91.05118
35 95.05557
36 95.05546
37 22.05153
38 87.05079
39 92.05017
40 91.05122
41 87.05083
42 91.05121
43 22.05173
44 87.05086
45 95.05601
46 91.05123

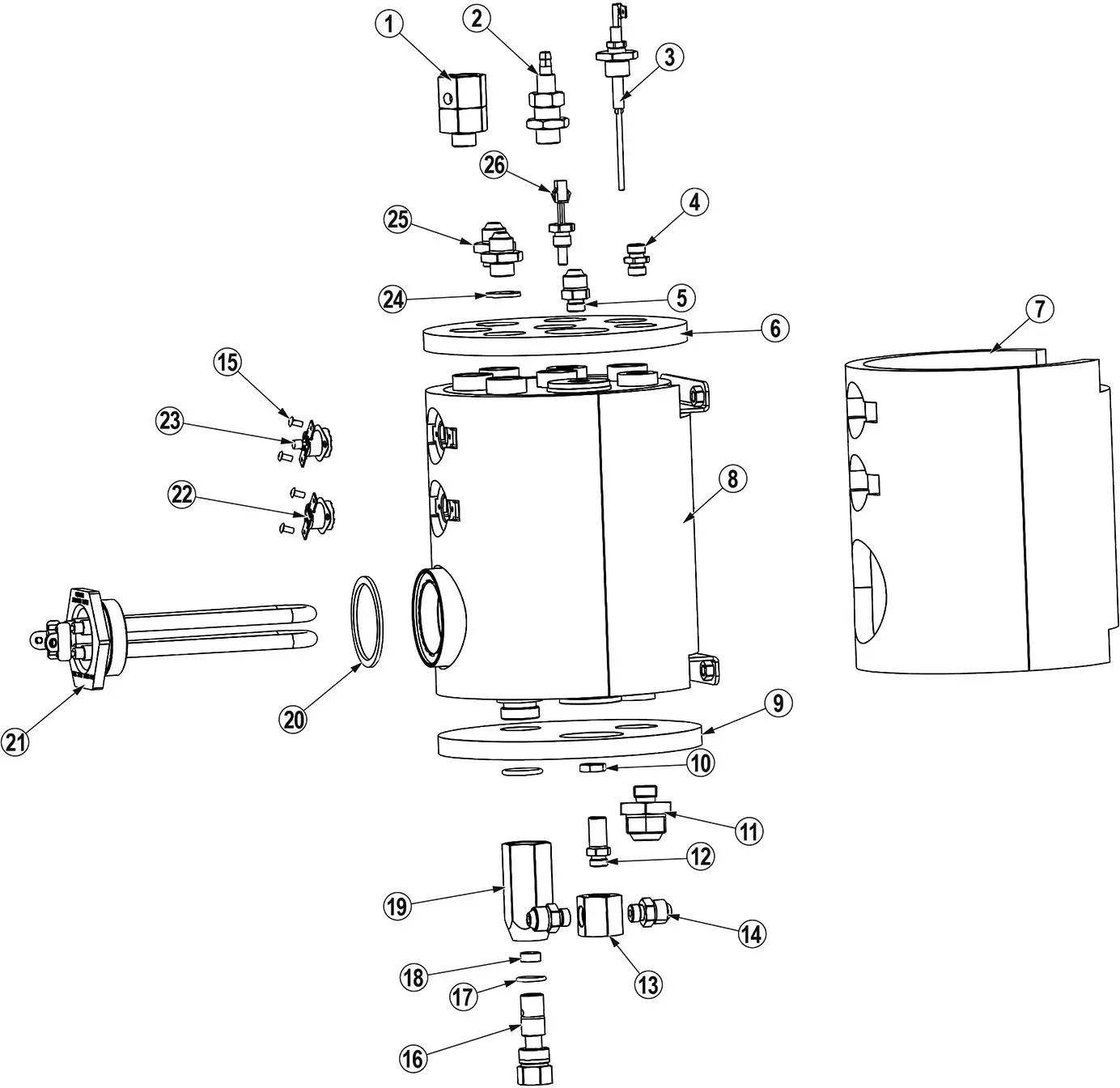

Exploded Parts Diagram of a cylindrical mechanical component, such as the Bellezza Inizio, with numbered bolts, washers, O-rings, electrical connectors, cover, heating element, and fittings clearly arranged to show assembly order.
# SKU
1 97.05155
2 22.05148
3 96.05899
4 22.05144
5 22.05151
6
7
8 2.05272
9
10 92.0501
11 22.05175
12 22.05127
13 22.05152
14 22.05174
15 91.0512
16 97.05157
17 97.05157
18 97.05157
19 97.05157
20 87.05078
21 96.05904
22 96.05882
23 96.05884
24 87.05077
25 22.05149
26 96.05878

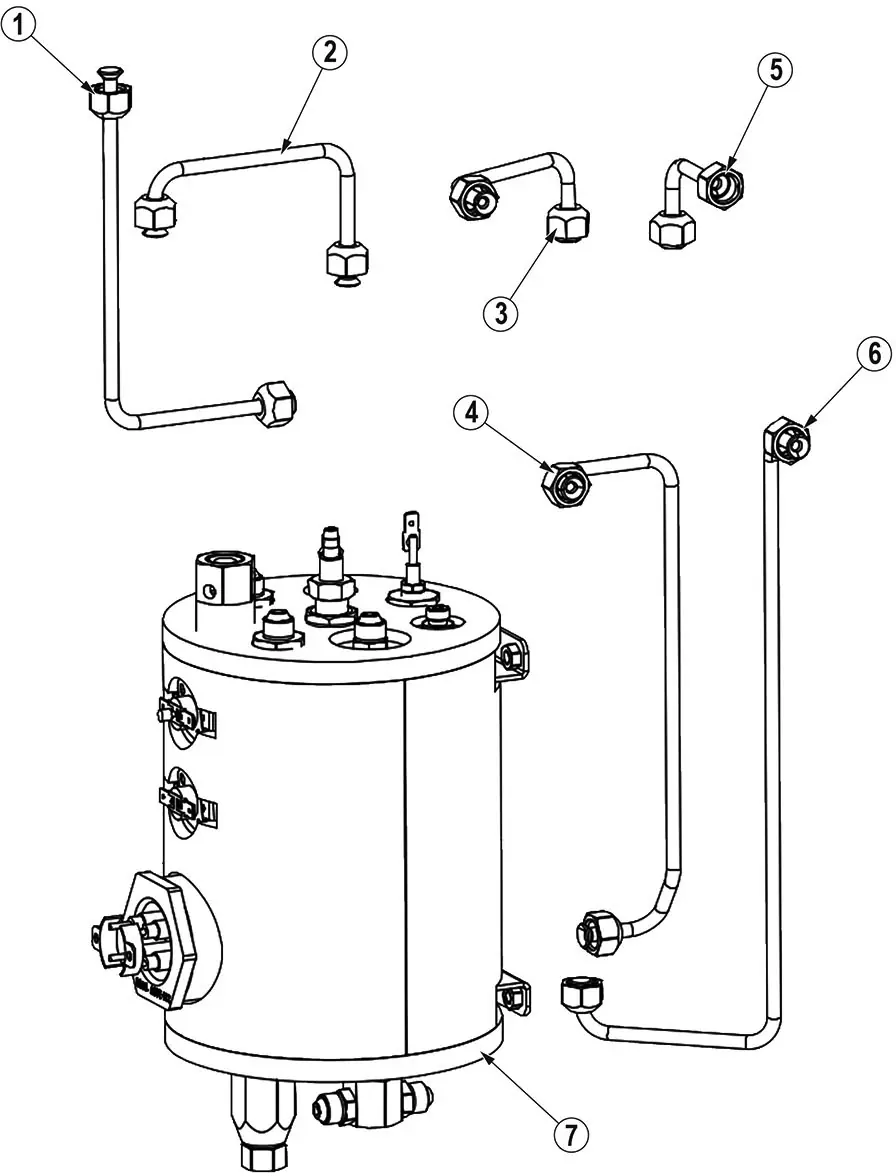

Line drawing of a cylindrical mechanical component—such as found in a Bellezza Inizio—shows seven labeled parts, including various bent pipes, connectors, and fittings arranged around the main body for easy assembly identification in a parts diagram.
# SKU
1 2.05271
2 2.05269
3 2.0527
4 2.05271
5 2.05267
6 2.05266
7

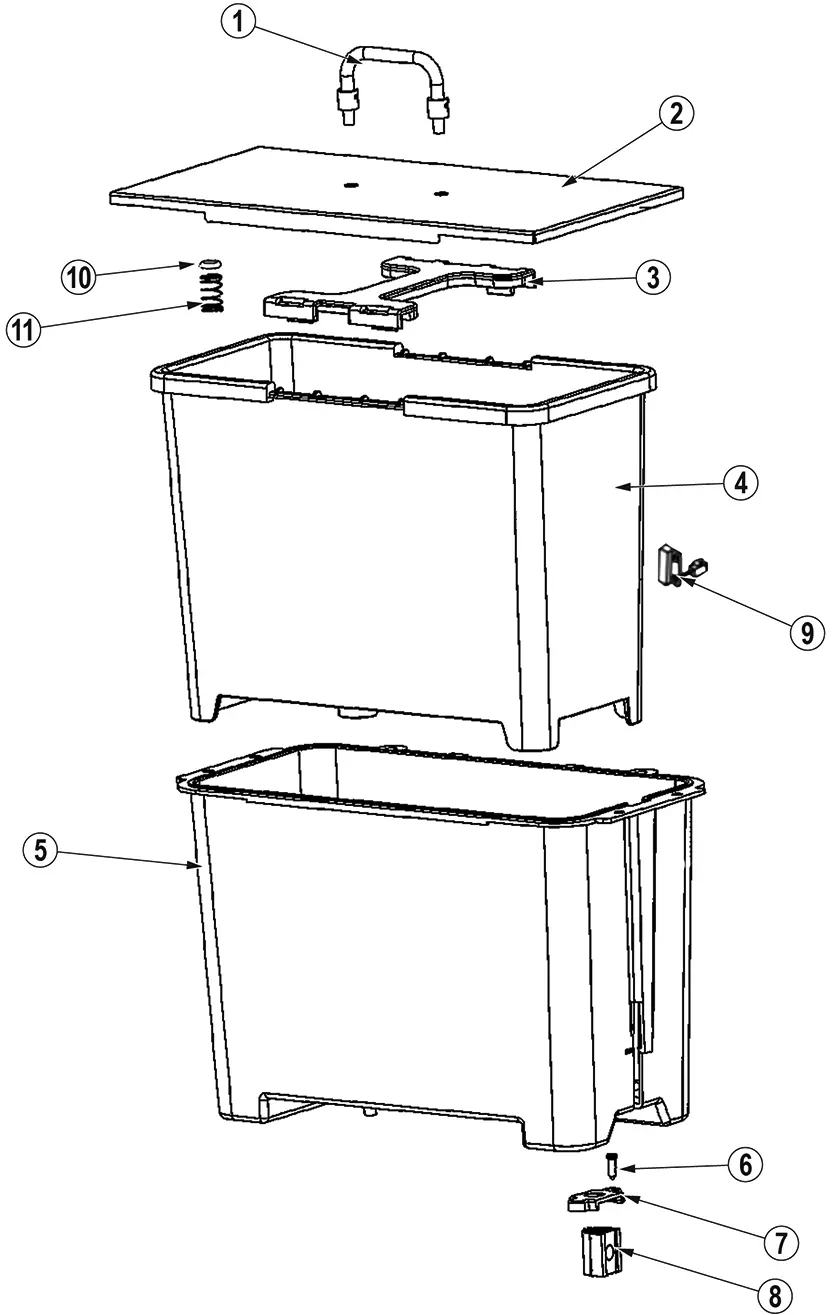

Parts Diagram of a rectangular container with lid, handle, inner tray, Bellezza Inizio stacking bins, small components, and attachment points—clearly showing assembly order and part positions.
# SKU
1 95.05552
2 IN.030.002
3 IN.030.103
4 IN.030.003
5 IN.030.004
6
7 37.05774
8 95.05581
9 3.0568
10 87.05081
11 13.05037

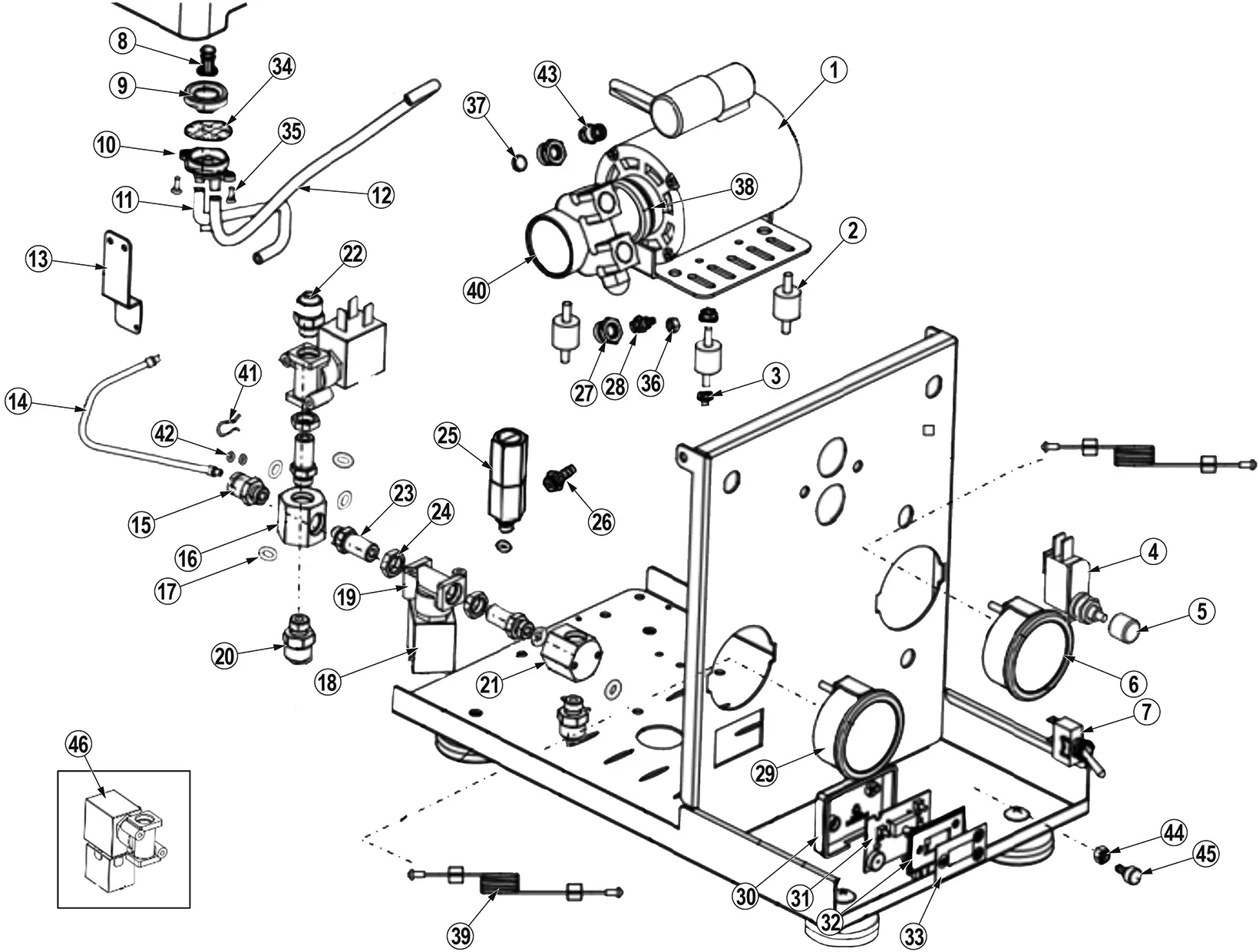

Exploded Parts Diagram of a mechanical device, including a base plate, gears, motor, rods, and electrical parts—showing how Bellezza Inizio components fit together for easy assembly or repair.
# SKU
1 IN.064.500
2 IN.064.003
3 IN.064.105
4 96.05901
5 IN.005.035
6 95.05556
95.05591
95.05592
7 96.05902
8 97.05156
9 87.0508
10 37.05775
11 IN.030.011
12 IN.030.008
13 95.05549
14 IN.080.008
15 IN.080.009
16 22.0515
17 IN.080.012
18 IN.080.602
19 IN.080.601
20 IN.080.005
21 22.05152
22 22.05151
23 IN.080.017
24 IN.080.011
25 IN.080.002
26 IN.080.015
27 IN.064.008
28 IN.064.101
29 95.05555
95.05589
95.0559
30 95.05565
31 96.05903
96.05908
96.05909
32 95.05562
33 95.05561
34 14.05389
35 91.00178
36 IN.064.102
37 IN.064.054
38 IN.064.901
39 95.0549
40 IN.064.001
41 95.05533
42 IN.080.019
43 IN.064.005
44 IN.005.090
45 22.05156
46 96.0588

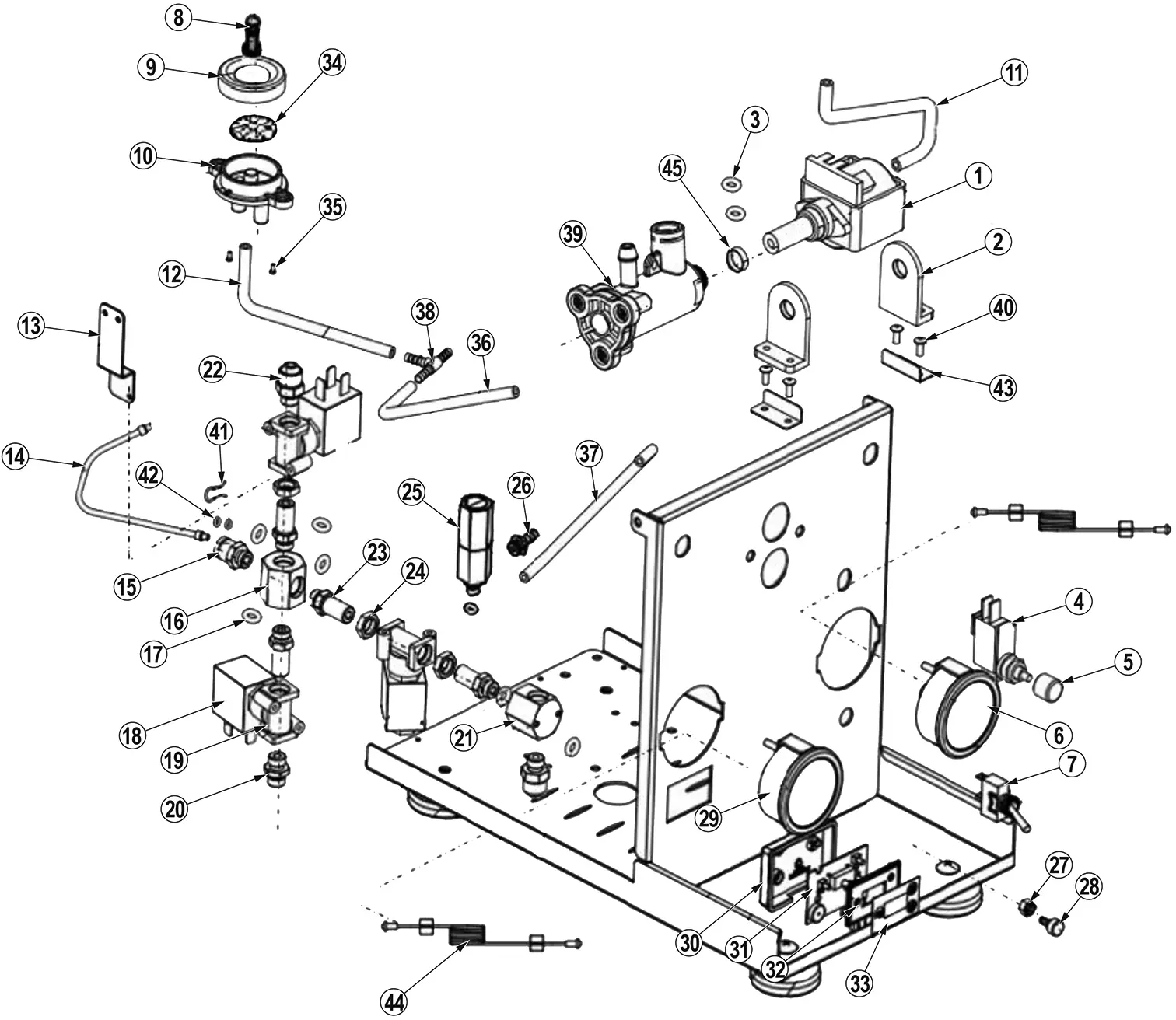

Exploded Parts Diagram of mechanical components for Bellezza Inizio, including gears, brackets, screws, and a base plate. Each item is labeled with numbers for easy assembly reference.
# SKU
1 96.059
2 95.05477
3 IN.063.008
4 96.05901
5 IN.005.035
6 95.05556
95.05591
95.05592
7 96.05902
8 97.05156
9 87.0508
10 37.05775
11 IN.030.011
12 IN.063.002
13 95.05549
14 IN.080.008
15 IN.080.009
16 22.0515
17 IN.080.012
18 96.0588
19 IN.080.601
20 IN.080.005
21 22.05152
22 22.05151
23 IN.080.017
24 IN.080.011
25 IN.080.002
26 IN.080.015
27 IN.005.090
28 22.05156
29 95.05555
95.05589
95.0559
30 95.05565
31 96.05903
96.05908
96.05909
32 95.05562
33 95.05561
34 14.05389
35 91.00178
36 IN.063.004
37 IN.063.005
38 IN.063.006
39 95.05532
40 IN.063.019
41 95.05533
42 IN.080.019
43 95.05533
44 95.0549
45 22.05156

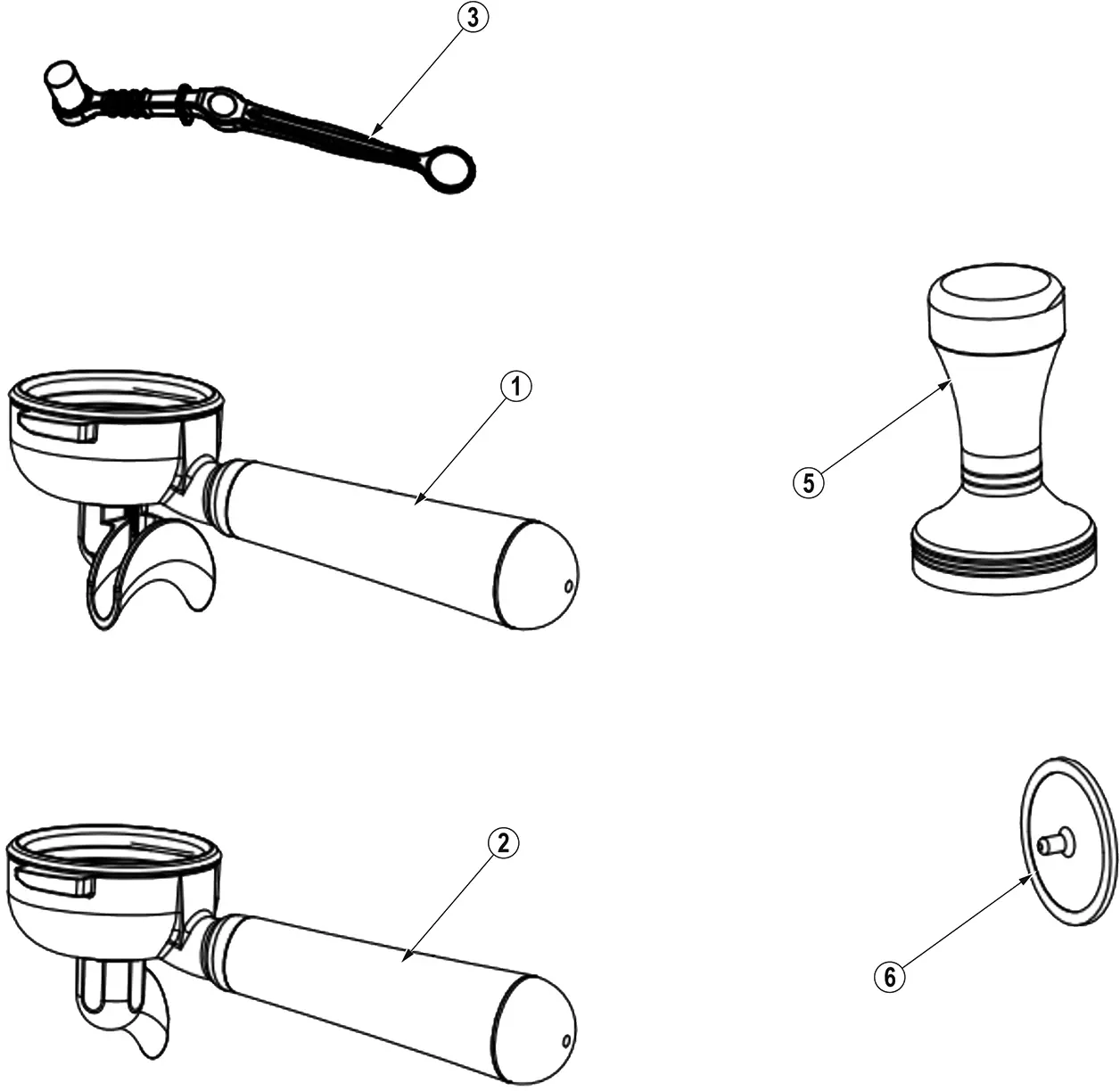

Line drawing of Bellezza Inizio espresso machine accessories: two portafilters (1, 2), a cleaning brush (3), a tamper (5), and a filter basket (6)—each part illustrated separately and numbered like in a parts diagram.
# SKU
1 ZB.200.002
2 95.05584
3 95.05585
4 95.05586
5 95.05582
