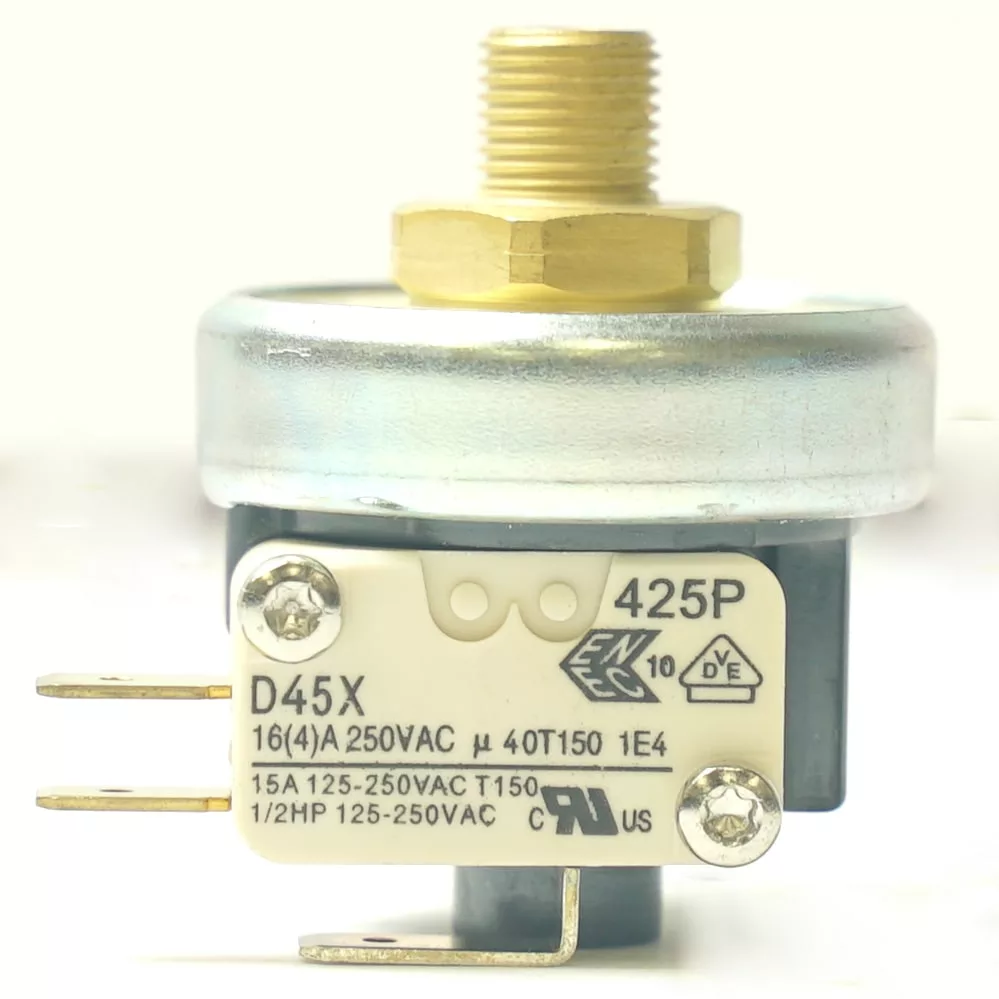

A close-up of the discontinued ASCASO V.1540 1-2.5 Bar 1/8 pressure switch, showing a threaded metal connector on top, two electrical terminals below, and a label displaying ratings and certifications. © 2025 1st-line.com

DISCONTINUED ASCASO V.1540 1-2.5 Bar 1/8″ Pressure Switch

0 reviews

This product has been discontinued at 1st-line Equipment.
Please visit one of the links below for more comparable products.

.

Request a Quote for Custom Package Builds


SKU: V.1540 Category: Tag:

V.1540 1-2.5 Bar 1/8″ Pressure Switch



1-2.5 Bar 1/8″ Pressure Switch for selected ASCASO, BRASILIA AND MAGISTER espresso machines.

connection 1/8″
diameter 38mm
voltage 250V
type pressure connection vertical
switching capacity 16A
ambient temperature max. 125°C
pressure range 1-2.5 bar
pressure preset at 1.2 bar

Brand

ANA, Ascaso, Brasilia, Magister
