DISCONTINUED Panamax 20 Amp M2 Surge Protector


This product has been discontinued at 1st-line. Please visit one of the categories below for more comparable products.
SKU: M2-20A Categories: , ,

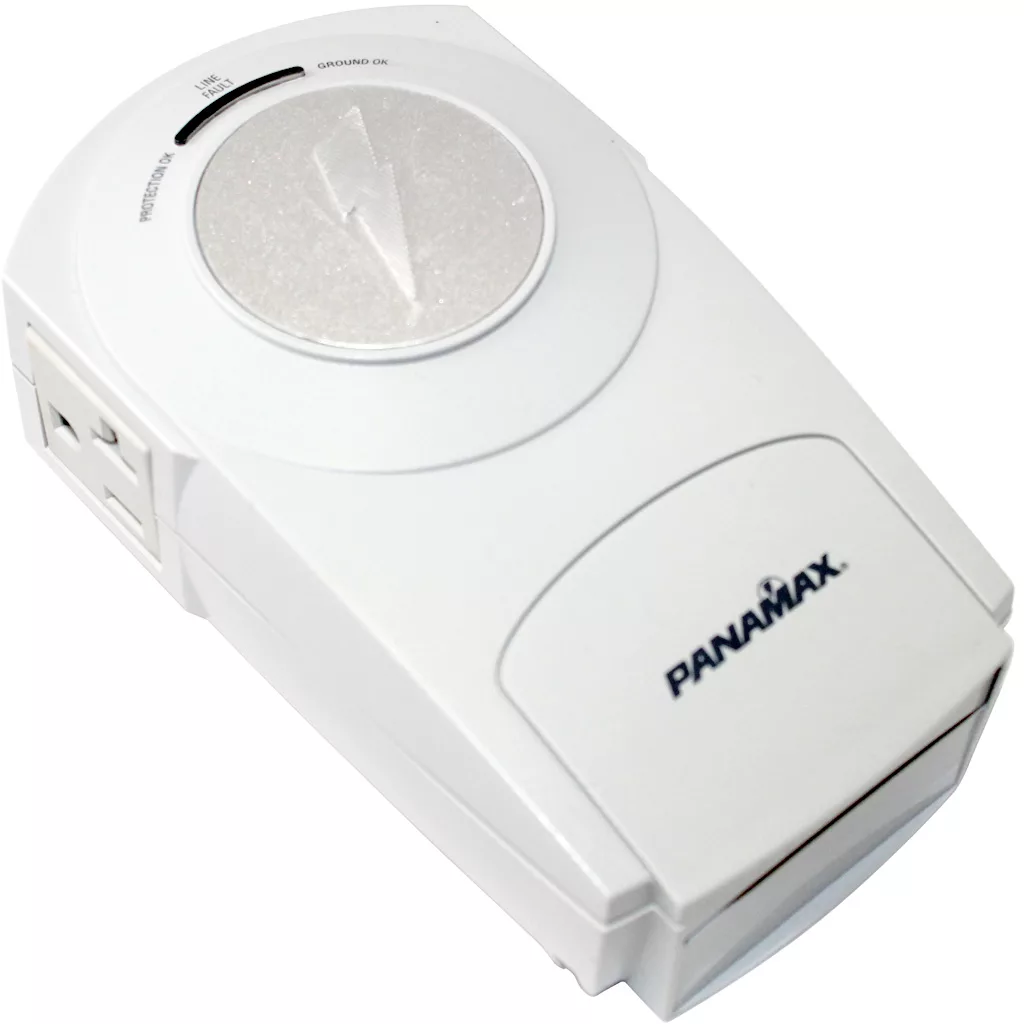

Panamax 20 Amp M2 Surge Protector

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.


  • Space-saving design – plugs directly into a 20 amp wall outlet only.
  • Versatile outlet orientation – accommodates the widest range of plug styles including transformers and right angle plugs.
  • 3 diagnostic lights – indicate wiring integrity & protection status.
  • Protect or Disconnect circuitry – protects equipment no matter how big the surge or, in the event of a catastrophic surge, complete disconnects the power.
  • Enhanced 2 stage EMI/RFI filtration – reduces unwanted interference & noise.
  • Convenient security feature – attach the protector to your equipment’s power cords using zip-ties..


  • Line voltage: 120VAC, 50/60Hz.
  • Initial clamping level: 200V.
  • UL1449 suppression rating: 330V.
  • Protection modes: L-N, L-G, N-G.
  • Maximum current rating: 20A (2400W).
  • EMI/RFI noise filtration: 50dB (100kHz – 1 MHz).
  • Response time: <1 nanosecond.
  • Single pulse energy dissipation: 1350 joules.
  • Peak impulse current: 52000A.
  • Catastrophic surge circuit: yes.
  • Thermal fusing: yes.
