DISCONTINUED Ascaso PM.162 Complete Steam Tap Assembly

$0.00

This product has been discontinued at 1st-line. Please visit one of the categories below for more comparable products.
SKU: PM162 Categories: , ,

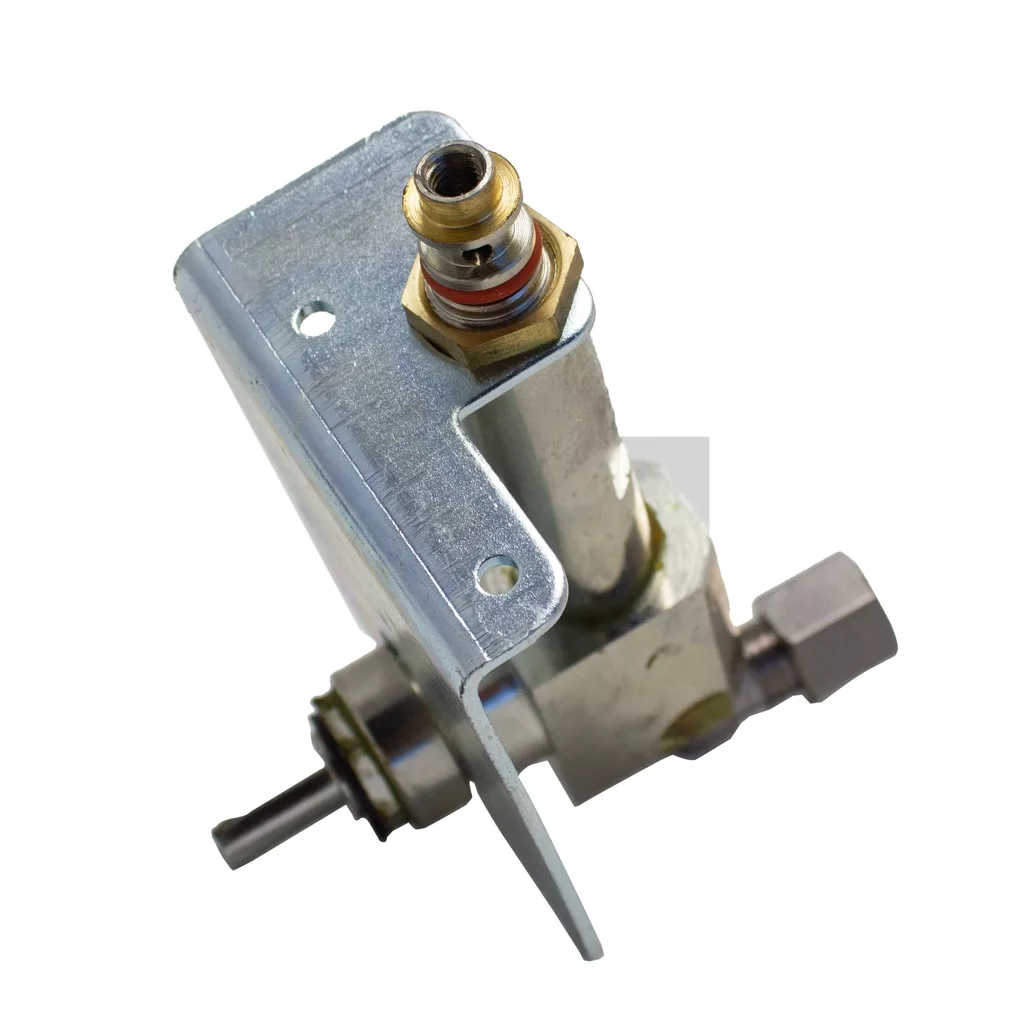

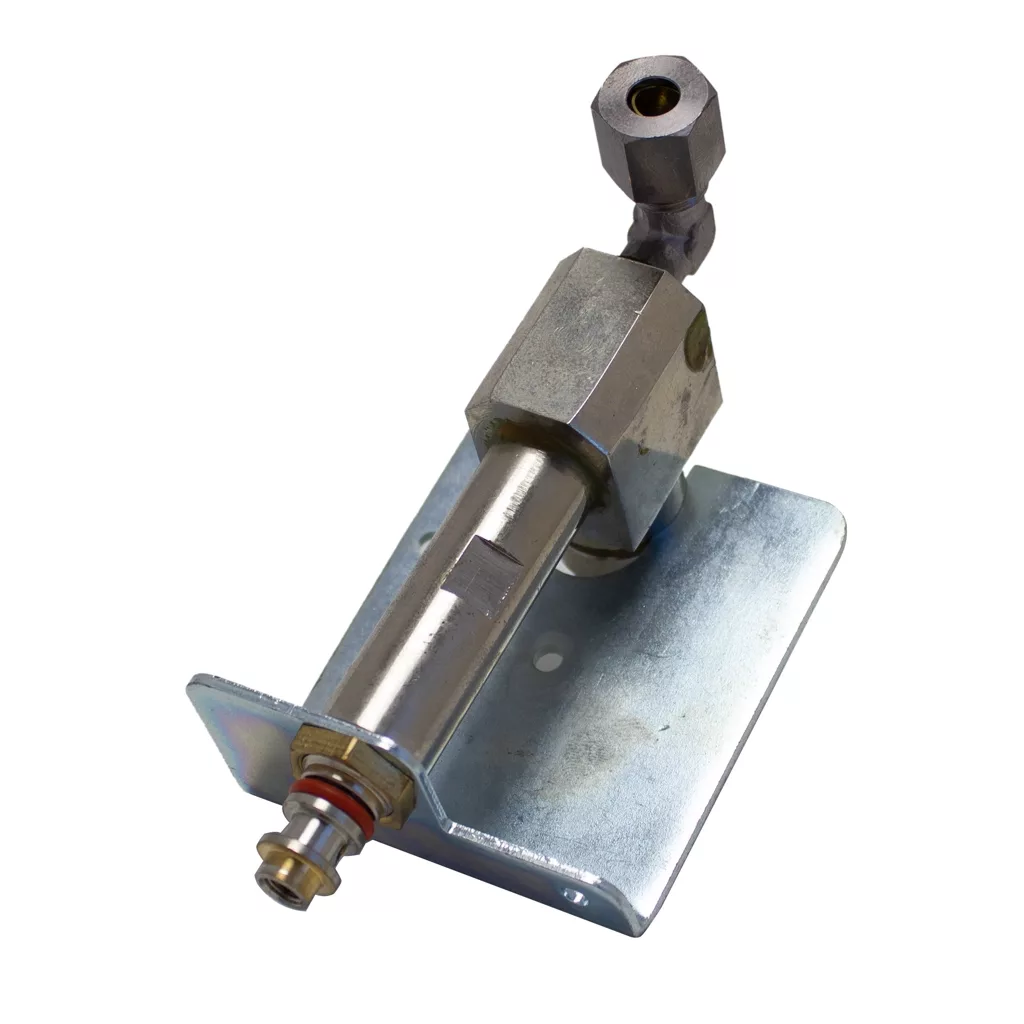

Ascaso PM.162 Complete Steam Tap Assembly

This part assembly (PM.162) fits the Ascaso Arc & Steel Uno espresso machine models. Specifically the versions that have a thermoblock with a manufacture date of 2012 and up.

This part is where the steam knob (PM..95), the swivel steam wand (I.2951), and the inlet hose for the solenoid valve (I.1652) all connect to.

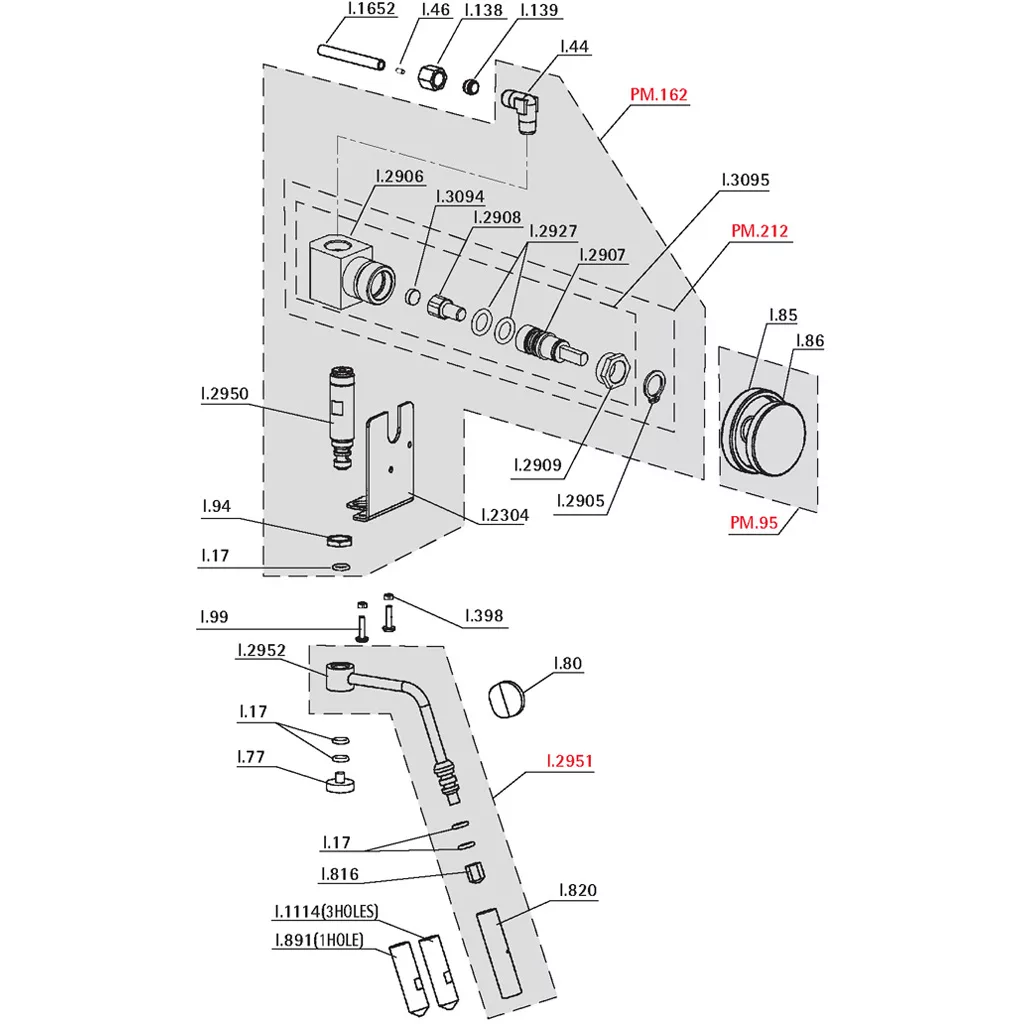

Here is a list of the individual parts in this assembly:

  • I.2906 – Tap Body
  • I…44 – Fitting that connects to the inlet hose for the solenoid valve (I.1652) to the Tap Body (I.2906)
  • I.2908 – Closing Peg Support that connects the Tap Body to the Tap Shaft (I.2907)
  • I.3094 – Closing Peg that goes between the Tap Body and the Closing Peg Support (I.2908)
  • I.2907 – Tap Shaft that connects the Closing Peg Support (I.2908) to the Steam Knob (PM..95)
  • I.2927 – O-ring that is threaded on the Tap Shaft (I.2907). There are 2 of this O-ring in this assembly.
  • I.2909 – Nut that goes between the Tap Shaft (I.2907) and the Steam Knob (PM..95)
  • I.2905 – Lock ring that goes between the Tap Shaft (I.2907) and the Steam Knob (PM..95)
  • I.2950 – Tap extension that connects the Tap Body to the Swivel Steam Wand
  • I.2304 – Bracket that holds everything
  • I…94 – Nut
  • I…17 – O-ring that goes between the Tap Extension (I.2950) and the Swivel Steam Wand (I.2951)
For more Ascaso parts & diagrams, please visit our Ascaso parts page. If you have any questions, please reference the Q&A tab on each product page.

Please read the Terms & Conditions before ordering this part or any other part on our website.

Brand

Ascaso

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “DISCONTINUED Ascaso PM.162 Complete Steam Tap Assembly”

Use one of the allowed file type: jpg,png. The max size allowed is : 3 MB.

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    Ask a question

    Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

      Is the I.3094 closing peg that is part of this assembly available separately?
    1. 0 votes
      Q Is the I.3094 closing peg that is part of this assembly available separately? answer now
      Asked by David on November 17, 2020 9:51 pm
      Answered by the admin

      Sorry, this item is not available separately.
