Spring Clip Replacement – Rancilio Rocky Doser

Disclaimer: The technical statements, support, information and recommendations contained herein are believed to be accurate as of the date hereof, but 1st-line Equipment, LLC does not make representations or warranties, express or implied, as to its accuracy, its completeness, or the results to be obtained. The information is being provided for informational purposes only and is intended for use by persons having adequate skill and expertise regarding the proper selection, use and application of the products and recommendations and at their own risk and discretion.

1st-line Equipment, LLC is not responsible for any injury or damages from such information. Please note that parts are available for purchase from 1st-line Equipment, LLC self service parts portal. These parts do not include any technical support. If you're unfamiliar with the technical aspects of repairing equipment, please contact a professional for proper evaluation.

By continuing to read further, you agree to abide by all the terms and conditions on this website. If you disagree, please leave our website.

A close-up of a person using a screwdriver to remove a screw from the inside of a Rancilio coffee grinder, with visible gears and a transparent plastic hopper, possibly for technical support or repair. © 2025 1st-line.com

Remove the silver screws inside the doser. There are 3. Two are located in the front, one in the rear.

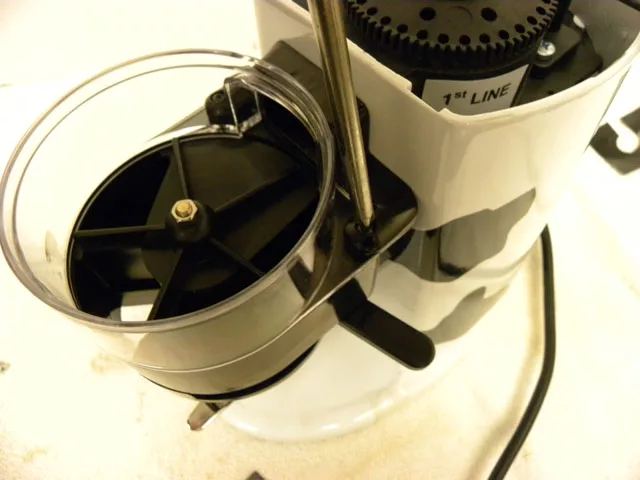

Close-up of a Rancilio electric coffee grinder, showing the hopper lid, part of the grind adjustment dial marked “1st line,” and the power cord on a light-colored surface. © 2025 1st-line.com

Remove the two black screws on the outside of the doser. It will come off the grinder.

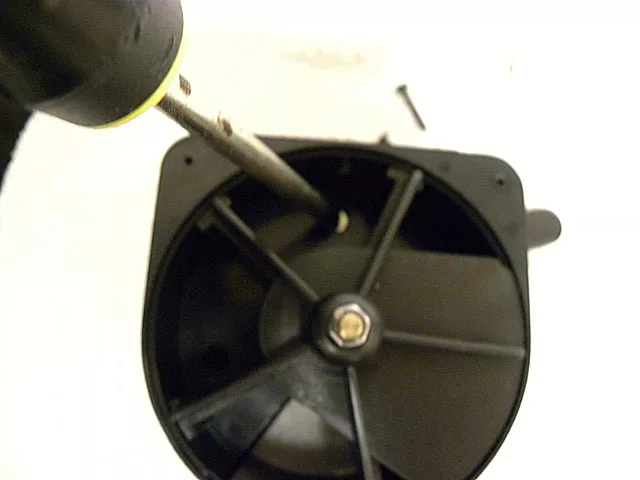

A screwdriver is being used to unscrew a screw from a black plastic fan or vent cover, with one screw already removed and lying nearby—possibly as part of Rancilio Support or technical maintenance. © 2025 1st-line.com

This is the third, rear screw inside the doser. After all three are removed, you can open the doser.

Close-up of the inside of a black retractable cord reel, showing gears, a metal spring, and a metal arm on a plastic base. Some screws and mechanical components are visible—ideal for Rancilio technical support reference. © 2025 1st-line.com

This is the internals, with the spring on the lower left edge. It is held in place by 1 screw and a peg.

Close-up of a mechanical device with a screwdriver adjusting a screw. Visible parts include a spring, metal lever, and black plastic housing, common in Rancilio machines. A soft white cloth is underneath for technical support maintenance. © 2025 1st-line.com

Remove the single screw.

A hand uses tweezers to adjust a small metal part inside a partially disassembled black Rancilio device resting on a white surface, with screws and a screwdriver nearby, illustrating detailed technical support work. © 2025 1st-line.com

Replace with new part. Reassemble in reverse order.
