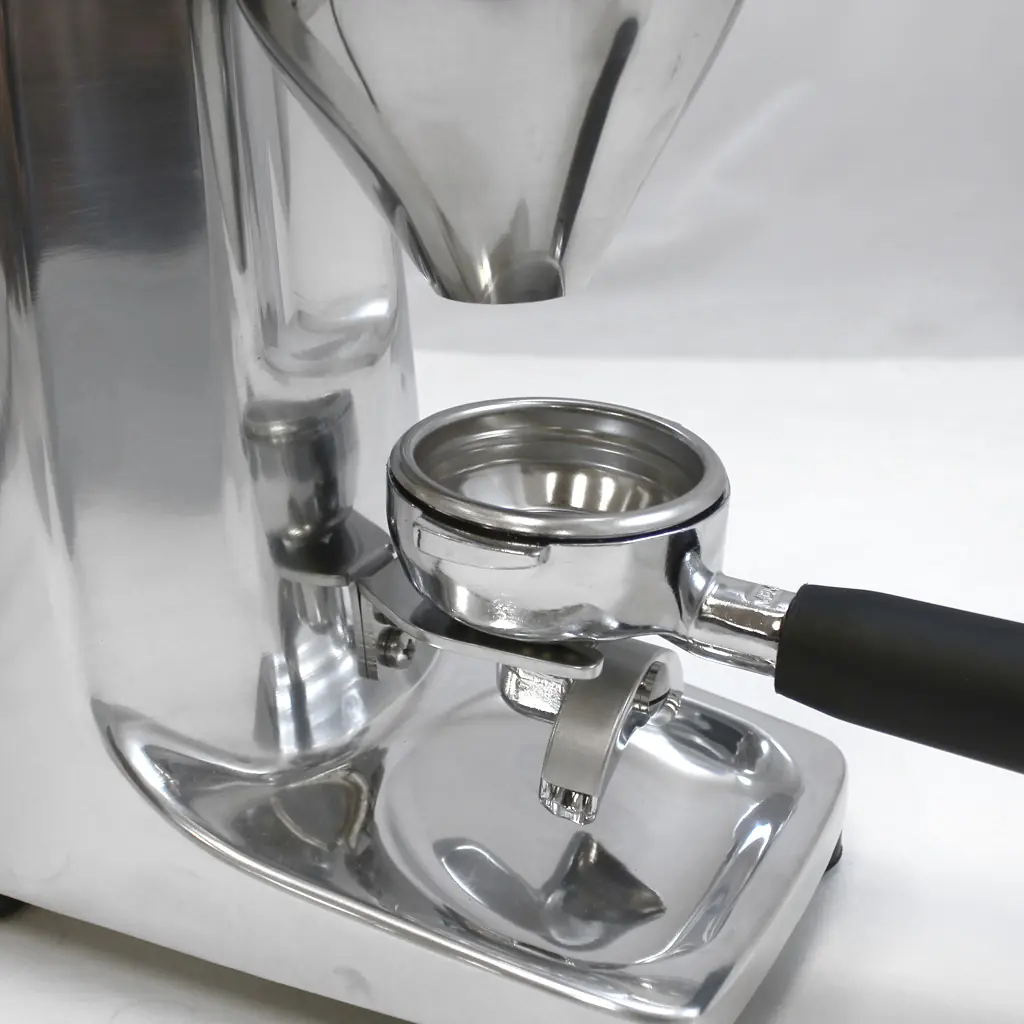

The portafilter fork can accomodate most portafilters. The clearance from the fork to the funnel is approximately 2.625 inches.

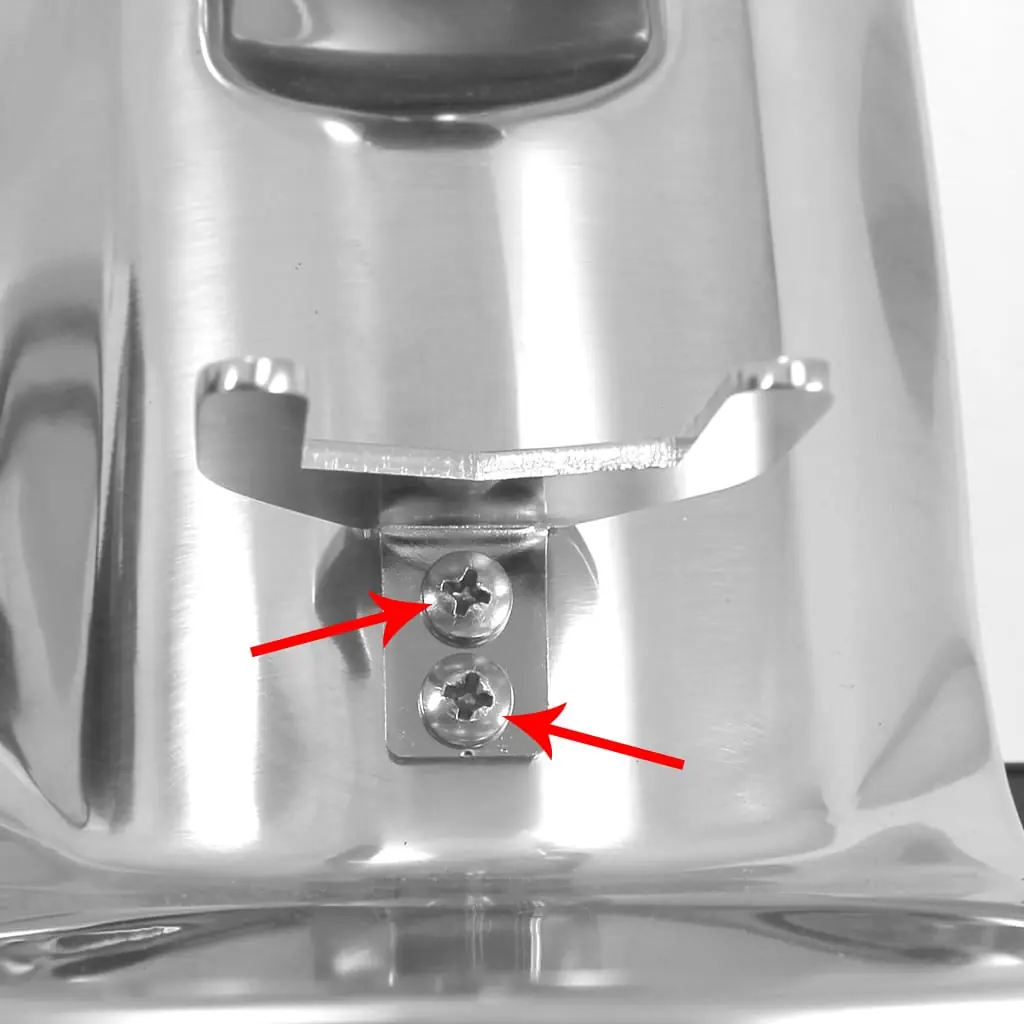

The fork can be removed if you need to grind into a large container. There are 2 Phillips screws that hold the fork in place.

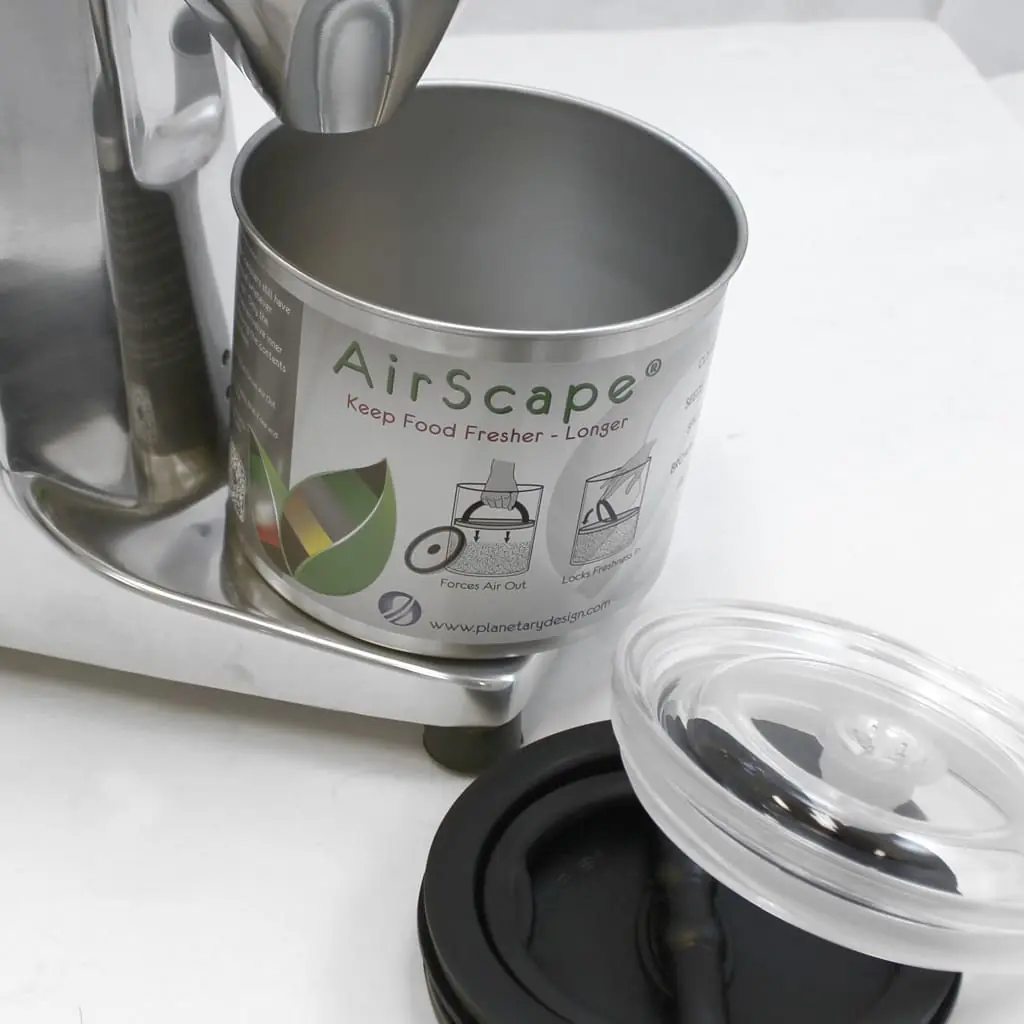

The clearance from the grinds catch basin to the funnel is approximately 5 inches.
