Lelit Mara X Water Tank Connection Repair

Disclaimer: The technical statements, support, information and recommendations contained herein are believed to be accurate as of the date hereof, but 1st-line Equipment, LLC does not make representations or warranties, express or implied, as to its accuracy, its completeness, or the results to be obtained. The information is being provided for informational purposes only and is intended for use by persons having adequate skill and expertise regarding the proper selection, use and application of the products and recommendations and at their own risk and discretion. 1st-line Equipment, LLC is not responsible for any injury or damages from such information. Please note that parts are available for purchase from 1st-line Equipment, LLC self service parts portal. These parts do not include any technical support. If you're unfamiliar with the technical aspects of repairing equipment, please contact a professional for proper evaluation. By continuing to read further, you agree to abide by all the terms and conditions on this website. If you disagree, please leave our website.

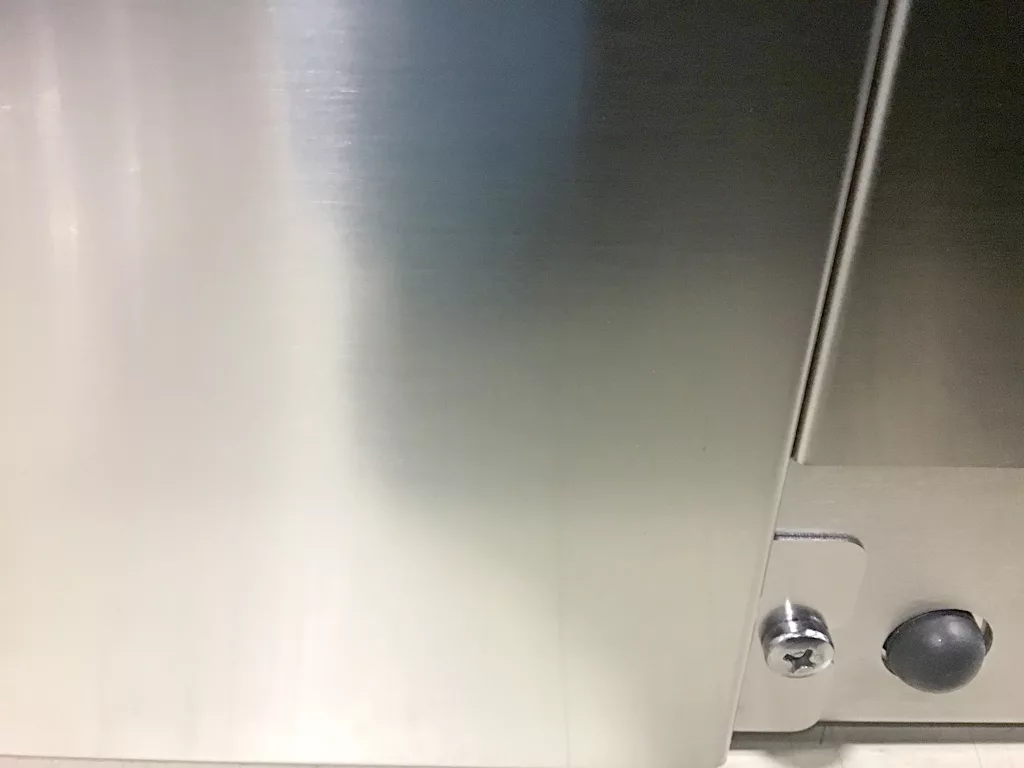

Close-up view of a metallic surface with a seam, a screw, and part of a black round knob on the right side, likely from a Lelit Mara X. The smooth, reflective surface highlights details near the water tank connection repair area. © 2025 1st-line.com

Unplug from electrical outlet and remove water reservoir.

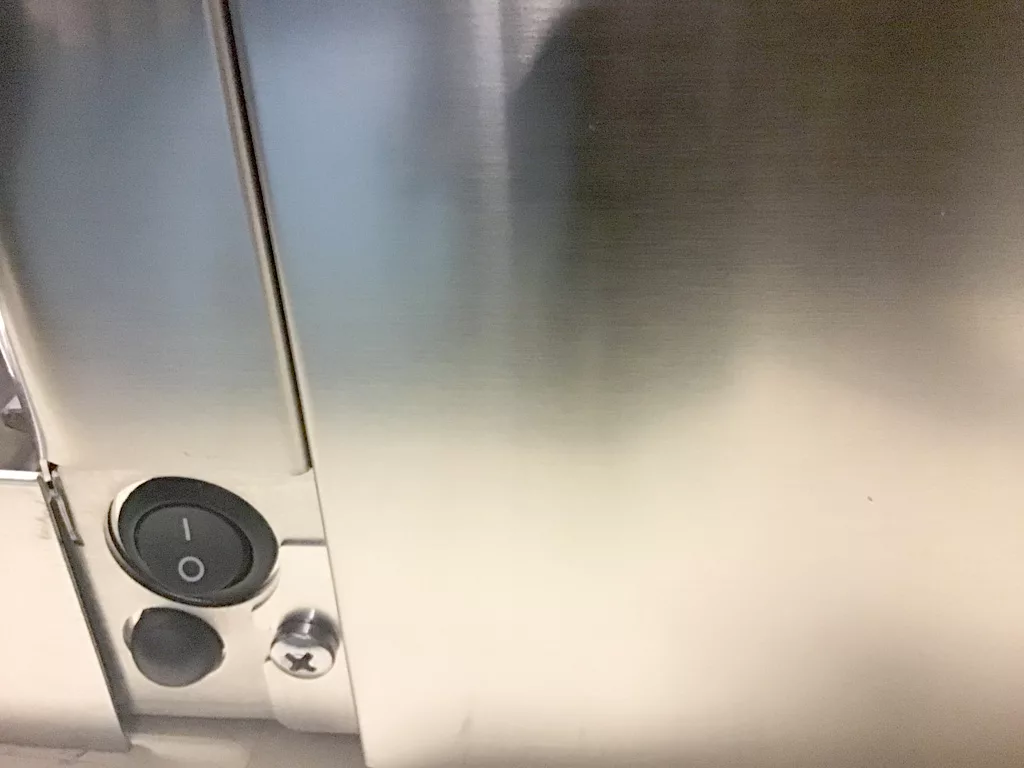

A close-up of a metallic surface featuring a round black power switch set to off, a small round button, and a screw—possibly part of an appliance like the Lelit Mara X or its water tank connection, ideal for repair scenarios. © 2025 1st-line.com

Take off screw on each side by inside of drip tray after removal

Close-up of a metallic surface on a Lelit Mara X showing a black power socket on the left and a small round screw or button by the water tank connection, both reflecting light and colors—ideal for repair reference. © 2025 1st-line.com

Unplug unit and remove screw on rear

A metal surface with evenly spaced horizontal slots, black rubber feet in each corner, and several screws—possibly from a Lelit Mara X repair—partially inserted and angled in different directions. © 2025 1st-line.com

Remove top screws

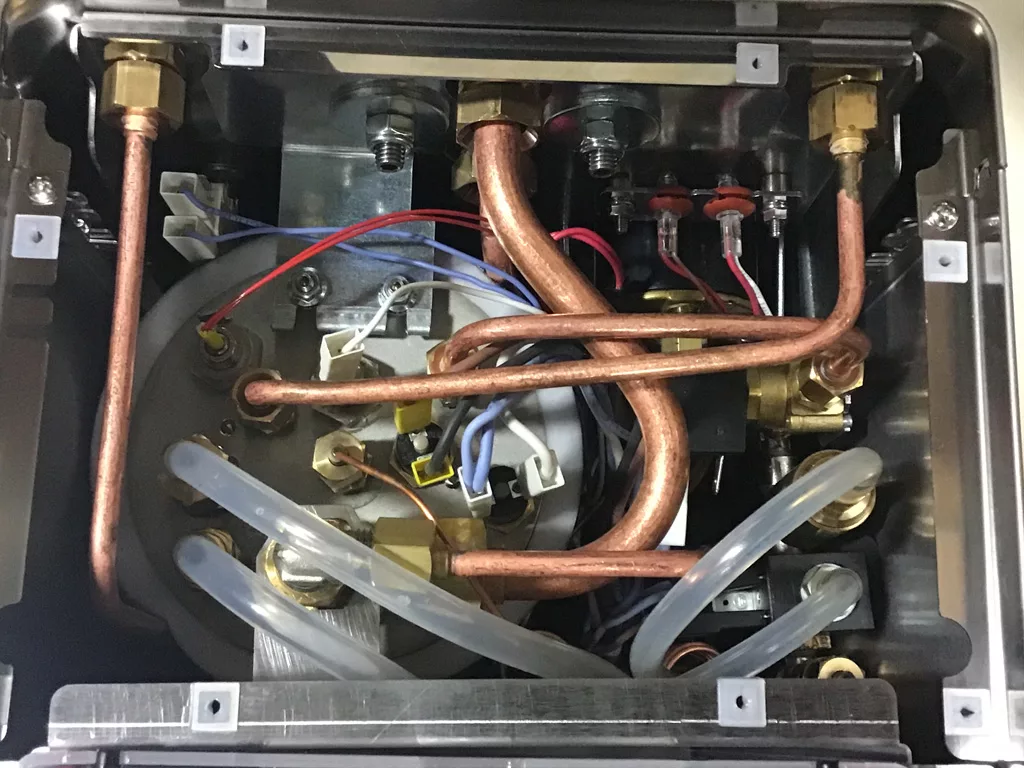

Close-up view of the inside of a Lelit Mara X machine, highlighting copper pipes, wires, clear plastic tubes, and metal fittings arranged in a compact layout—perfect for understanding repair or water tank connection details. © 2025 1st-line.com

Remove top panel

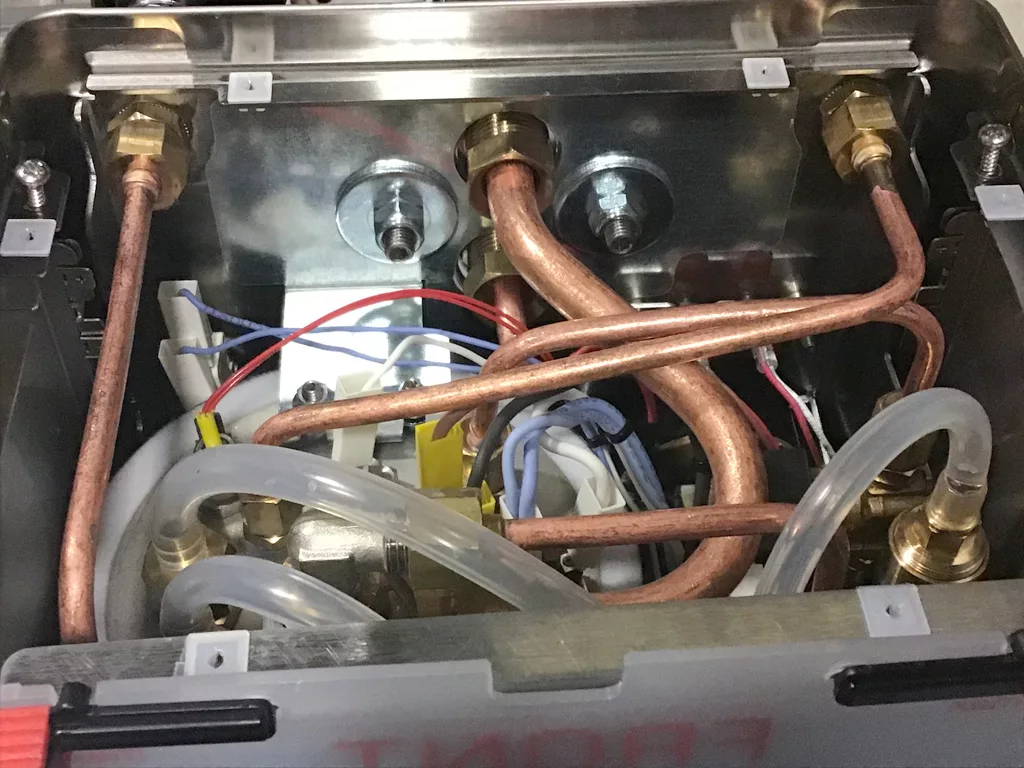

Close-up of the inside of a Lelit Mara X machine showing copper pipes, white and blue wires, and clear plastic tubing connected to various metal fittings, highlighting the water tank connection for repair or maintenance. © 2025 1st-line.com

Remove remaining two screws

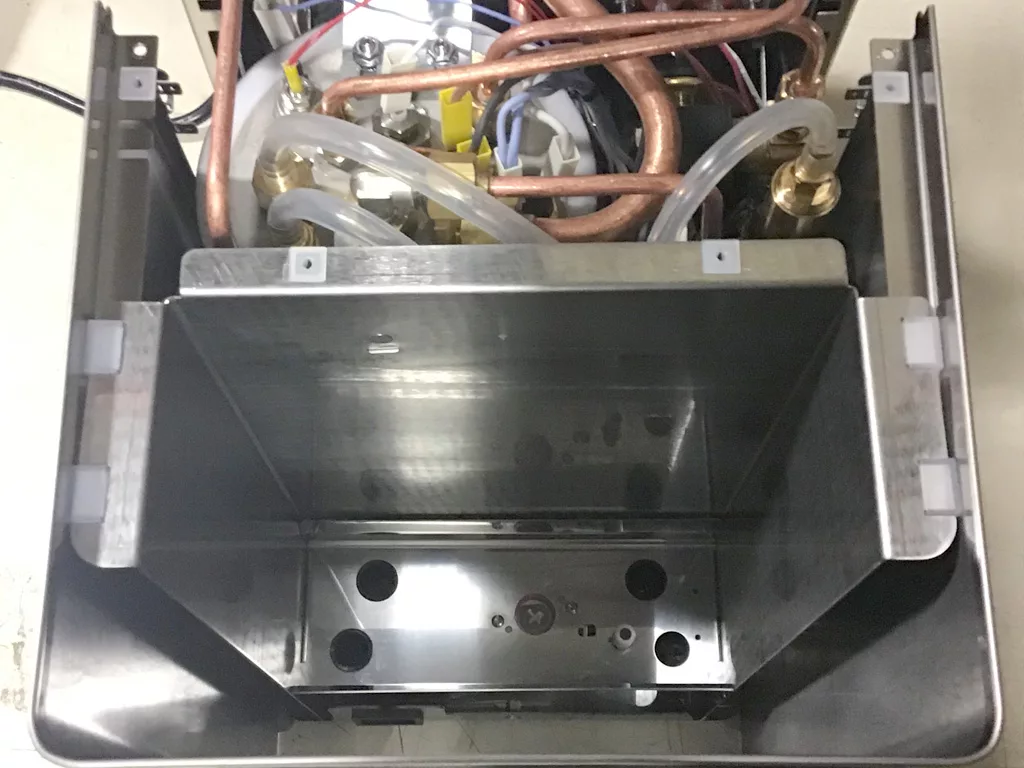

Top-down view of the inside of a Lelit Mara X, showing various copper pipes, wires, transparent tubes, and an empty rectangular steel compartment near the water tank connection, ideal for repair or maintenance insights. © 2025 1st-line.com

Remove bottom rear feet and slide panel toward back

Close-up of an electrical component with wires inside a metal casing, possibly part of a Lelit Mara X repair. A white switch marked CE is visible among various colored wires and connectors, suggesting a water tank connection. © 2025 1st-line.com

Locate switch under reservoir and remove. Be careful not to break holding tab

Close-up of electrical wiring and connectors inside an electronic device, highlighting white, red, and black cables attached to plastic connectors and metal components—ideal for Lelit Mara X repair or checking the water tank connection. © 2025 1st-line.com

Slide off as such

A close-up view of a metallic surface with circular cutouts and a central red-bordered hole, revealing screws and a white cylindrical component on the right, possibly part of a Lelit Mara X water tank connection or equipment panel repair. © 2025 1st-line.com

Remove 2 screws

Close-up of two metal bolts with nuts connecting shiny metal and black ribbed surfaces, possibly part of a Lelit Mara X water tank connection or machine repair, on a light-colored, marked surface. © 2025 1st-line.com

Loosen two bolts

Close-up of two shiny metal bolts with washers and nuts securing metal plates together, possibly part of a Lelit Mara X water tank connection repair. The smooth, polished surfaces reflect light against a scratched, light-colored background. © 2025 1st-line.com

Loosen two bolts

The inside of an opened electronic device, such as the Lelit Mara X, showing various wires, tubes for water tank connection, circuits, and components—including a power switch and connectors—with the metal outer casing partially lifted for repair. © 2025 1st-line.com

Remove connector and replace. Pay attention to metal tab inserted.
