Dispersion Screen Upgrade – Lelit PL41 Anna

Disclaimer: The technical support below for information purposes only. 1st-line Equipment, LLC is not responsible for any injury or damages resulting from such information. Please note that parts are available for purchase from 1st-line Equipment. These parts do not include any technical support. If you're not familiar with the technical aspects of repairing equipment, please order a diagnosis on our website. By continuing to read further, you agree to abide by all the terms and conditions on this web site. If you do not agree, please stop here.

The instructions below are for the older PL41 Anna espresso machine models. These versions were released around 2006. This is before the QE versions.

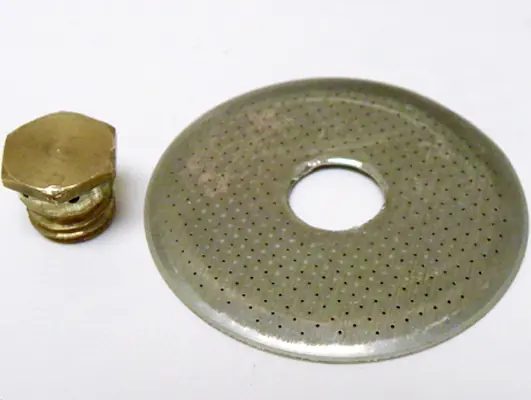

Pictured to the right is the Nut and the dispersion screen. The dispersion screen has had its center hold drilled out to allow the gold nut to fit through.

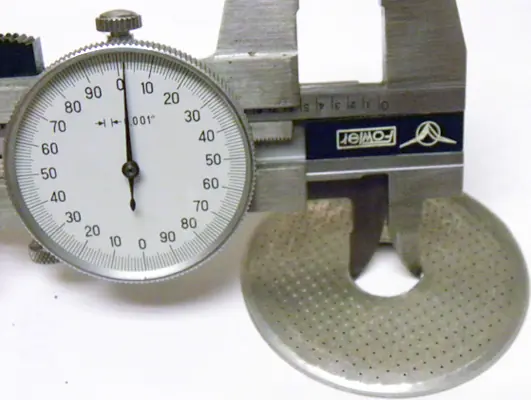

The approximate size of the hold is slightly larger than 0.5″.

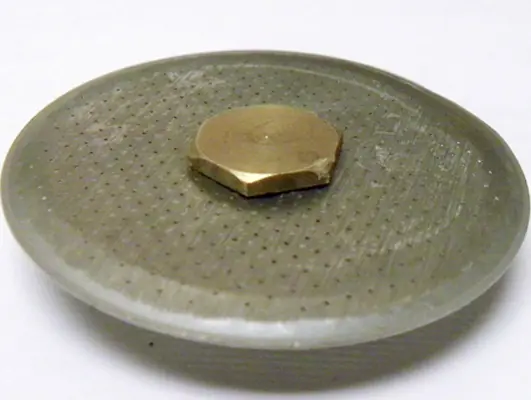

After the hold is drilled, the gold nut should fit through the center. This is how it will reattach to the boiler.

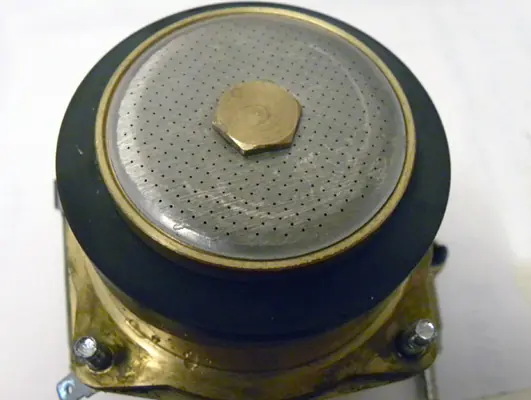

Reassembled, we see the old style gold nut holding the new screen to the boiler.
