Parts Diagram – ECM Classika II / Classika PID

Please use the diagrams below to help find the exact part you are looking for. After you find the part, copy the SKU #. Then use the search bar at the top of our website. If there are no results in the search, we most likely do not have the part. We only special order parts if the specific model was purchased through 1st-line Equipment. For general questions, please use our parts inquiry page.

1

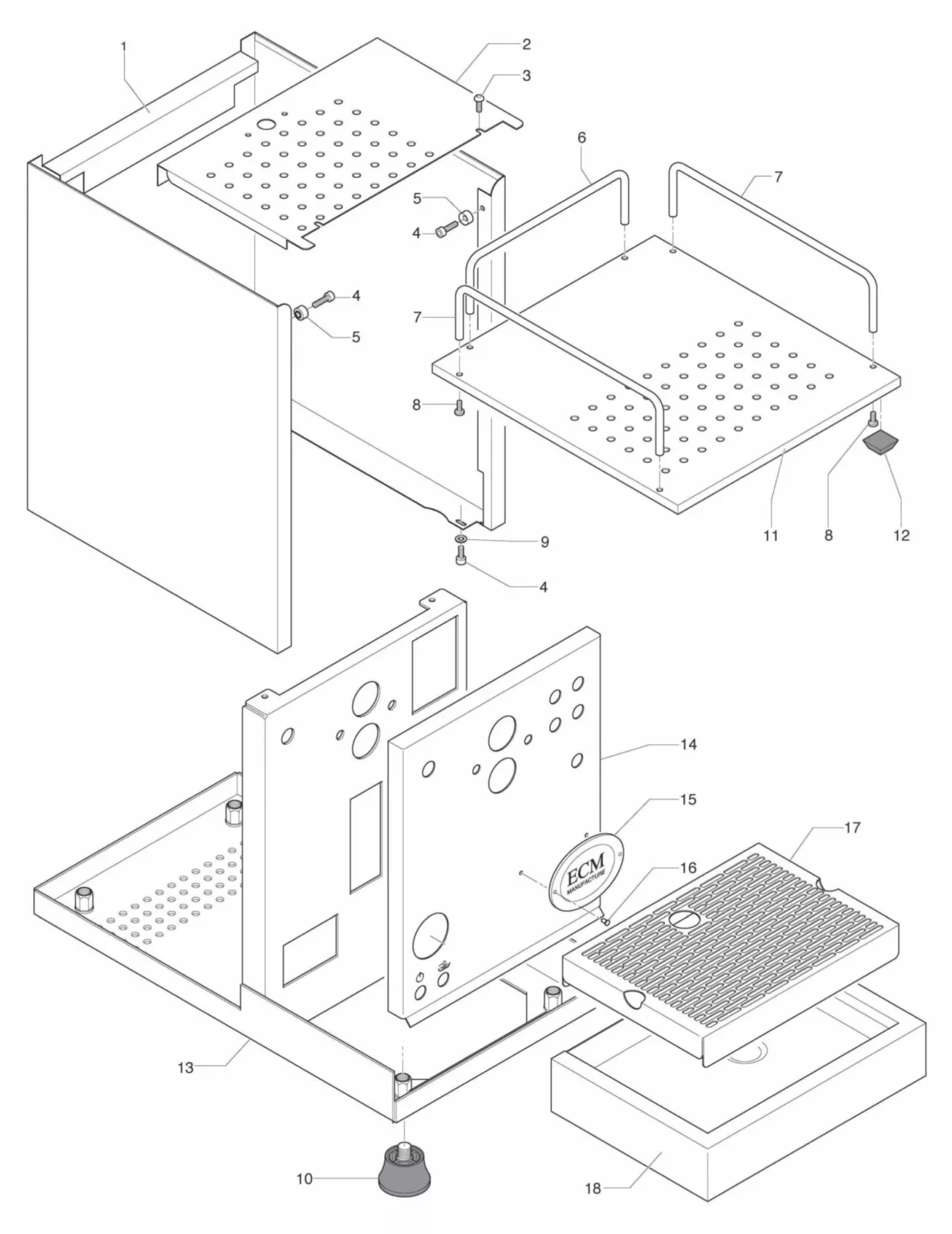

ECM-Classika-parts-diagram-01
# SKU
1 P9002
2 P9008
3 P2022
4 P2006
5 B5220818
6 P9028
7 P3002
8 B7826212
9 P2009
10 B7474216
11 P9001
12 B7474212
13 P9005
14 P9006
15 E81100
16 P1999
17 P9004
18 P9003

2

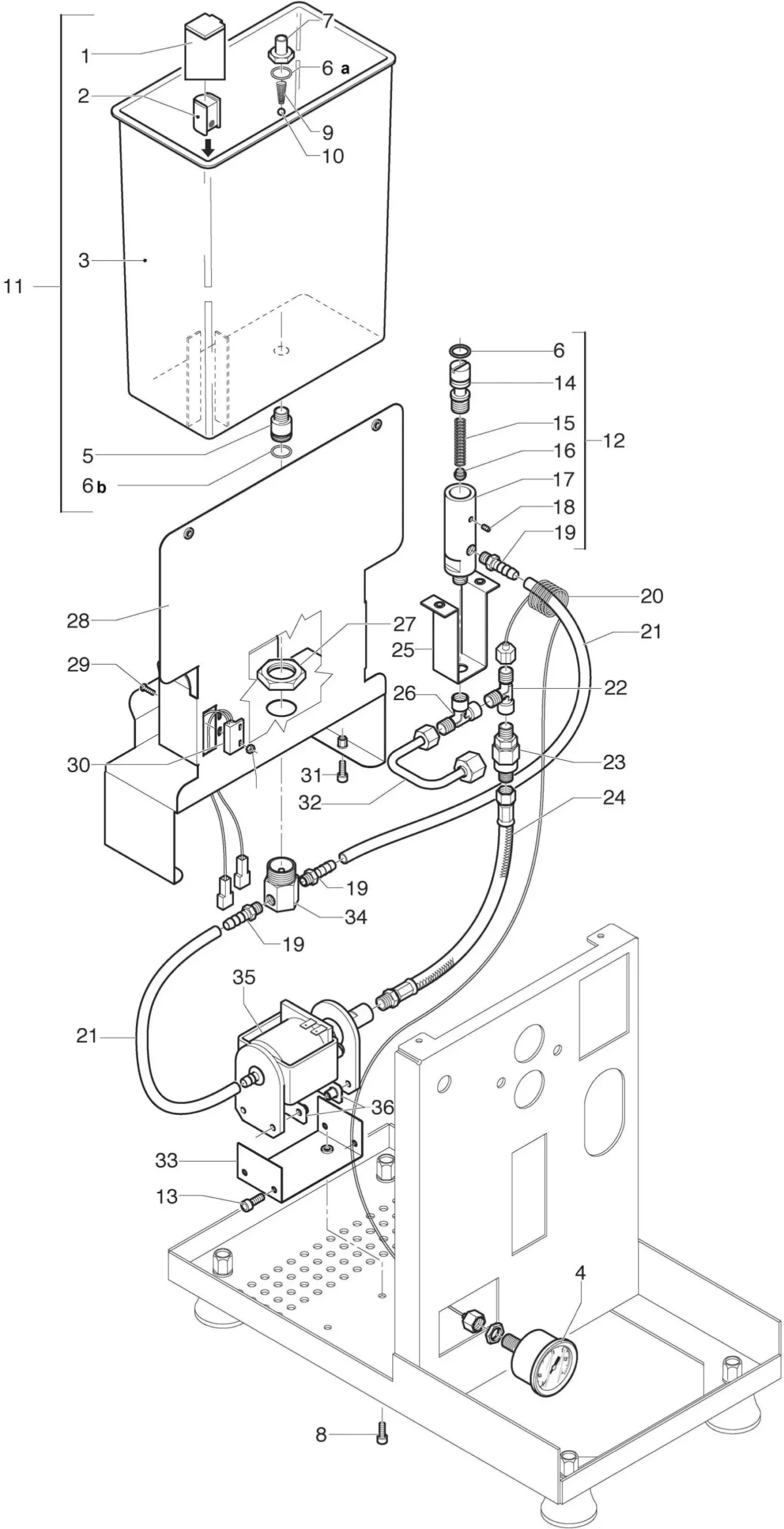

ECM-Classika-parts-diagram-02
# SKU
1 P6016
2 P6021
3 P9010
4 B7432517
5 P6020.N
6a P6020.3
o.Nr. P6025
6b B7496076
7 P6017.N
8 P2006
9 P6023
10 B5471509
11 P9010.K1
12 P7000
13 P2007
14
15 P7000.3
16 P7000.4
17
18 P7000.6
19 P6052
20 P6051
21 C499900769
22 C229900644
23 C229900548
24 P8012
25 P9026
26 E2113001
27 P6020.K3
28 P9007
29 P2021
30 P6022
31 P2006
32 P9118
33 P9027
34 P6020.K4
35 C199900280
35 US1001
36 P3004

3

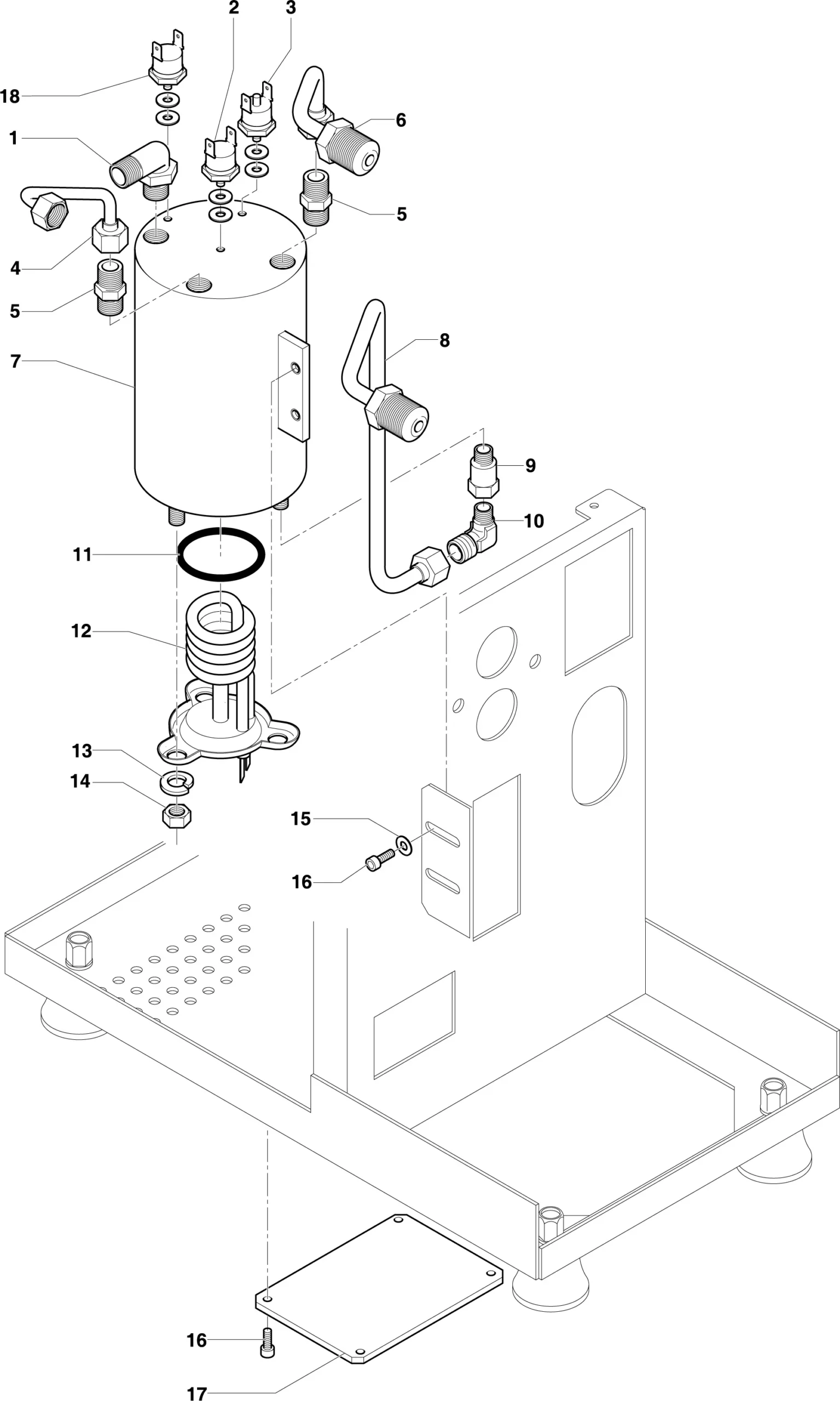

ECM-Classika-parts-diagram-03
# SKU
1 P2040
2 C100001816
3 C199901549
4 P9022
5 C229900520
6 P9020
7 P9012
o.Nr. P7051
8 P9021
9 P2047
10 P9015
11 P9013
12 P9011 (230V)
12 US1008 (110V)
13 P2011
14 C309900127
15 P2009
16 P2006
17 P9009
18 C100001815

4

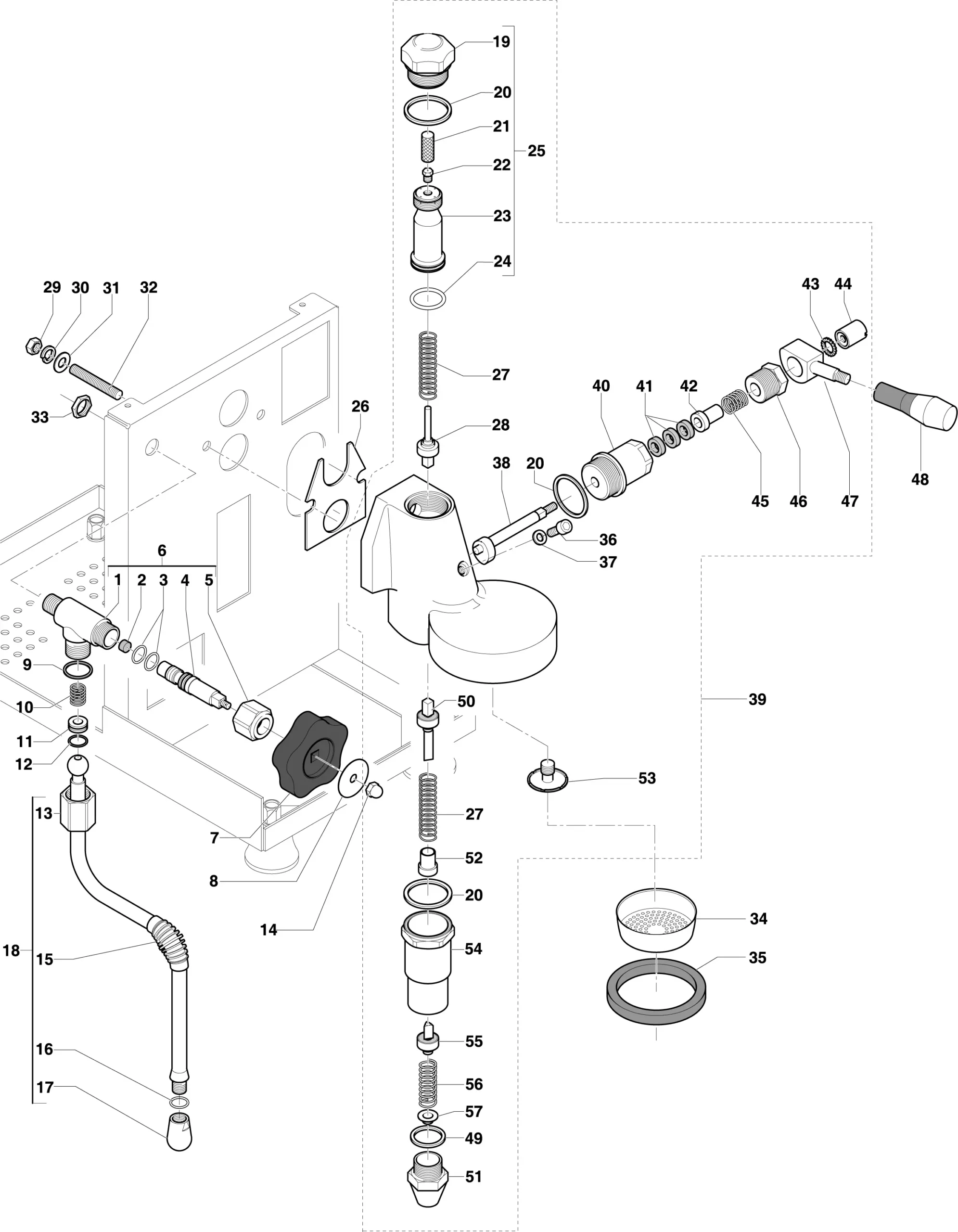

ECM-Classika-parts-diagram-04
# SKU
1
2 P6000.2
3 P6000.3
4 P6000.4
5 P6000.5
6 P6000
7 B7371509
8 B5522057
9 P6015
10 P6011
11 P6010
12 B7496073
13 P6002.5
14 P6000.6
15 P6002.2
16 P6002.1
17 P6002.4
18 P6002
19
20 C469900421
21 C619900554
22 C229900549
23
24 C469900422
25 P1000.1
26 C449900767
27 C219900423
28 C219900424
29 C309900127
30 P2011
31 P2010
32 C309900131
33 C329900682
34 C519900103
35 C449900229
36 C309900164
37 C469901132
38 C219900425
39 P1009
40 R000002142
41 C219900426
42 P1004
43 B7479947
44 R000002146
45 C219900427
46 R000002144
47 P1000.2
48 P1002
49 C469900783
50 C219903081
51 P1000.5
52 B7479942
53 C229901128
54 C229901165
55 C219900430
56 C219900431
57 R000002148

5

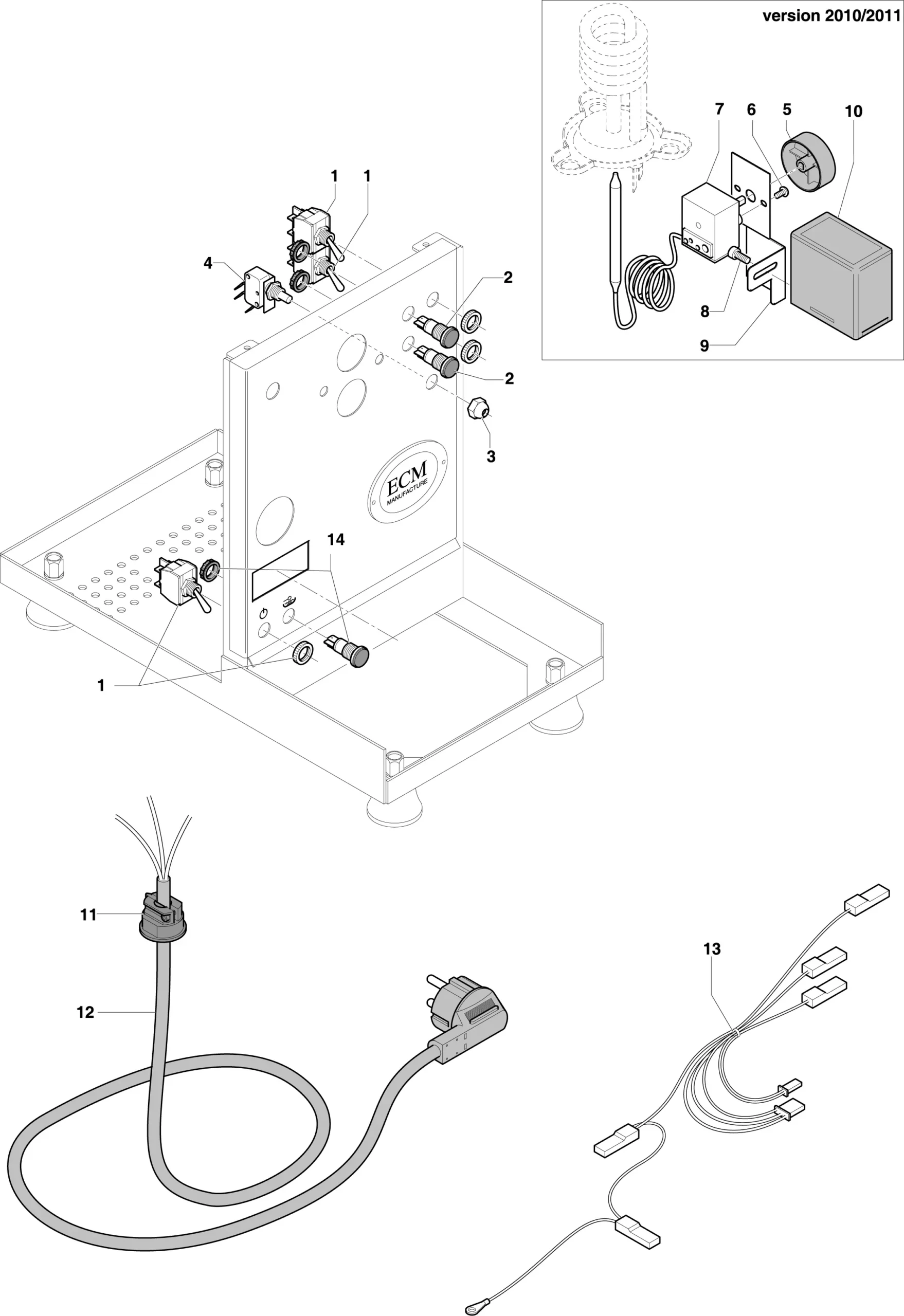

ECM-Classika-parts-diagram-05
# SKU
1 C199900087
2 B7633617
3 B5221875CM
4 C199900306
5 B7434012
6 P2055
7 B7434011
8 P2007
9 P9023
10 P9025
10 US1009
11 P2070
12 C199900957 (DE)
12 P2034 (US)
12 P2035 (UK)
12 P2036 (AU)
13 P9024
14 B7633618

6

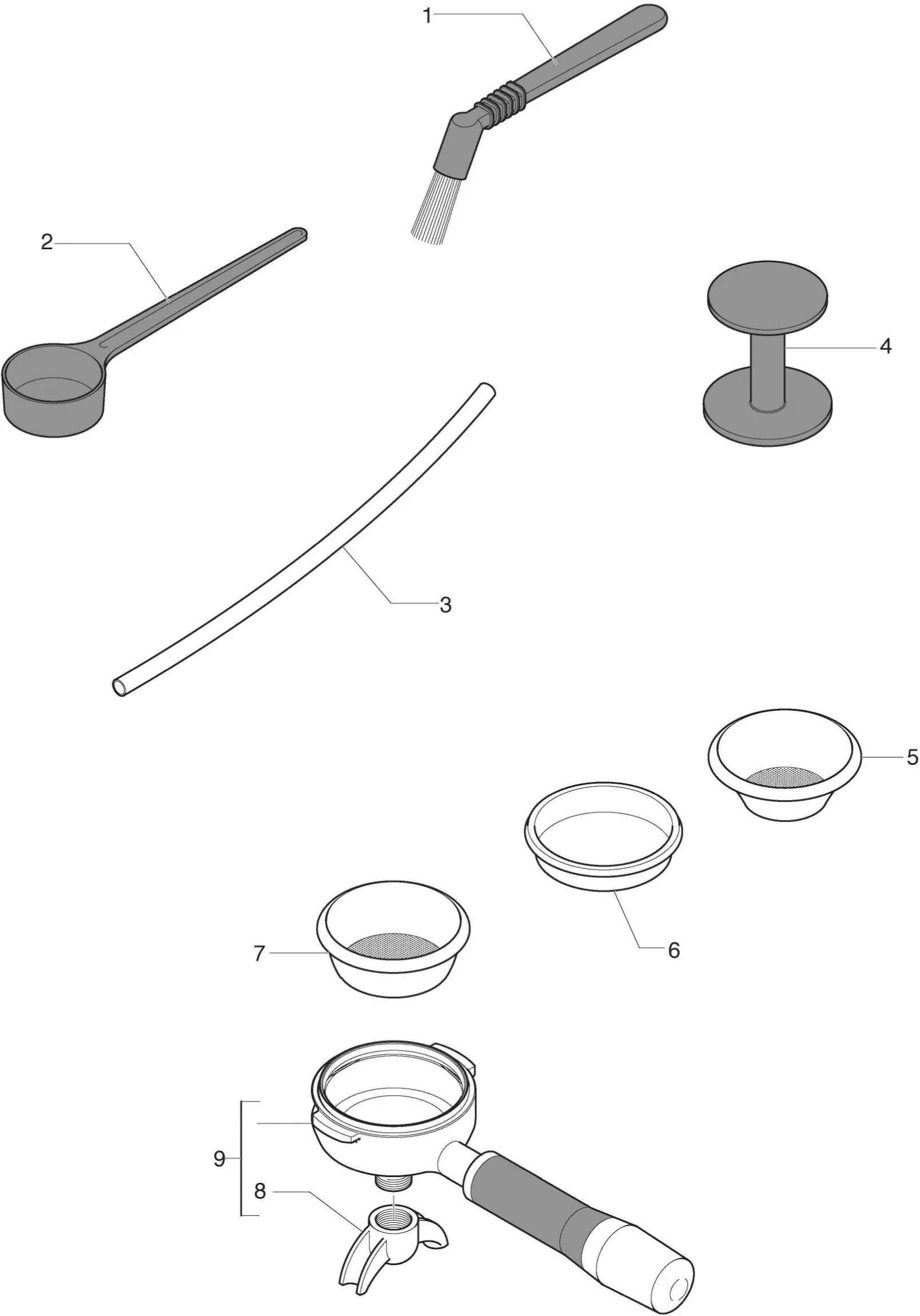

ECM-Classika-parts-diagram-06
# SKU
1 R210
2 C639900710
3 C499900769
4 C639900764
5 C619900104
6 C619900106
7 C619900105
8 P9120
9 89423

7

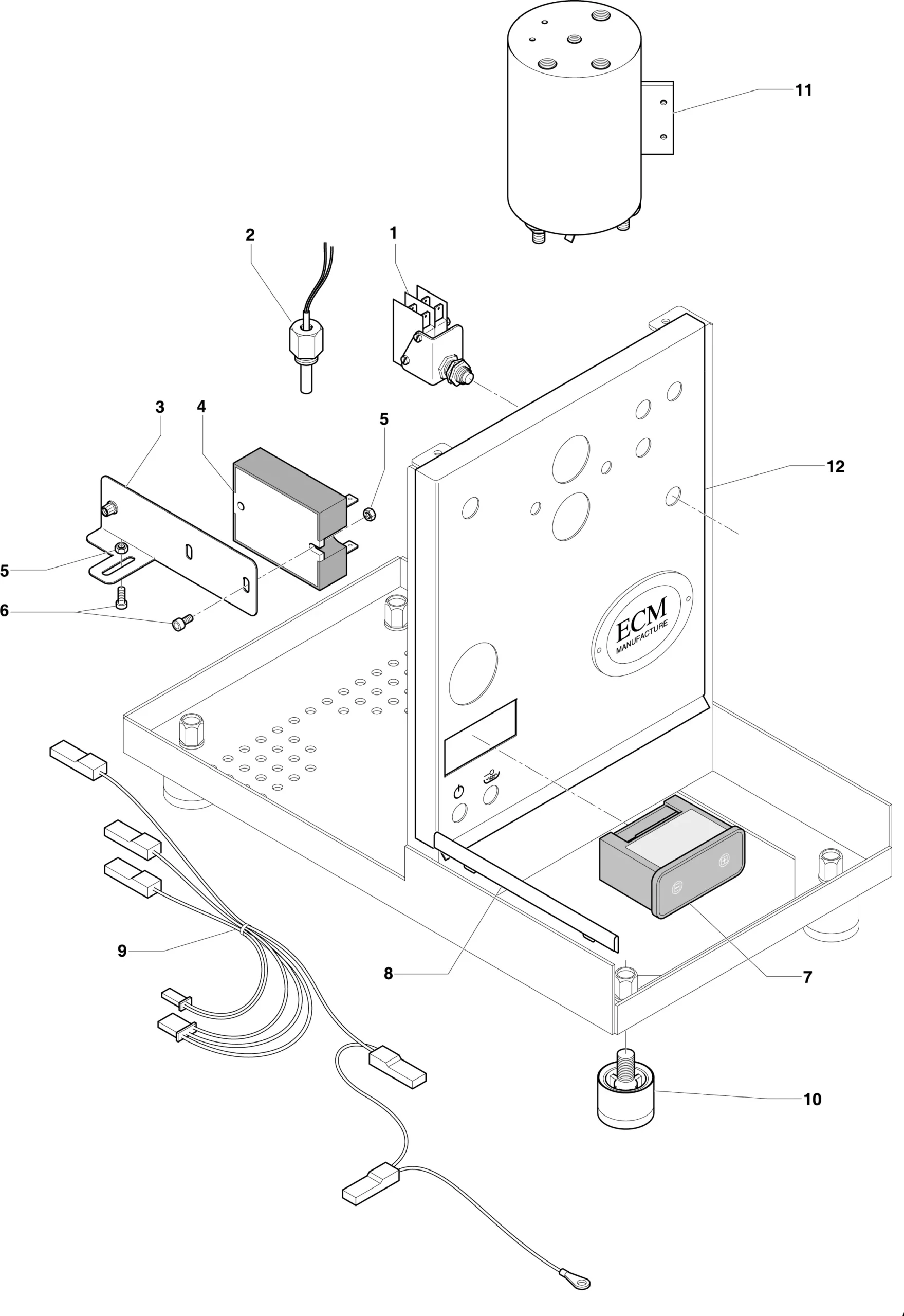

ECM-Classika-parts-diagram-07
# SKU
1 P2080
2 P6037
3 P9023
4 P6031
5 P2026
6 P2006
7 P6039 (230V)
7 US1040 (110V)
8 P3001.6
9 P2583
10 P7025
11 P2508
o.Nr. P7051
12 P9006.1
