Installing water tank adapter – ECM Switchable models

Disclaimer: The technical support below for information purposes only. 1st-line Equipment, LLC is not responsible for any injury or damages resulting from such information. Please note that parts are available for purchase from 1st-line Equipment. These parts do not include any technical support. If you're not familiar with the technical aspects of repairing equipment, please order a diagnosis on our website. By continuing to read further, you agree to abide by all the terms and conditions on this web site. If you do not agree, please stop here.

Warning!

To prevent damage in transport, we have removed the manifold on the reservoir and loosened the manifold on the platform below the reservoir.

Please perform the following prior to start up:

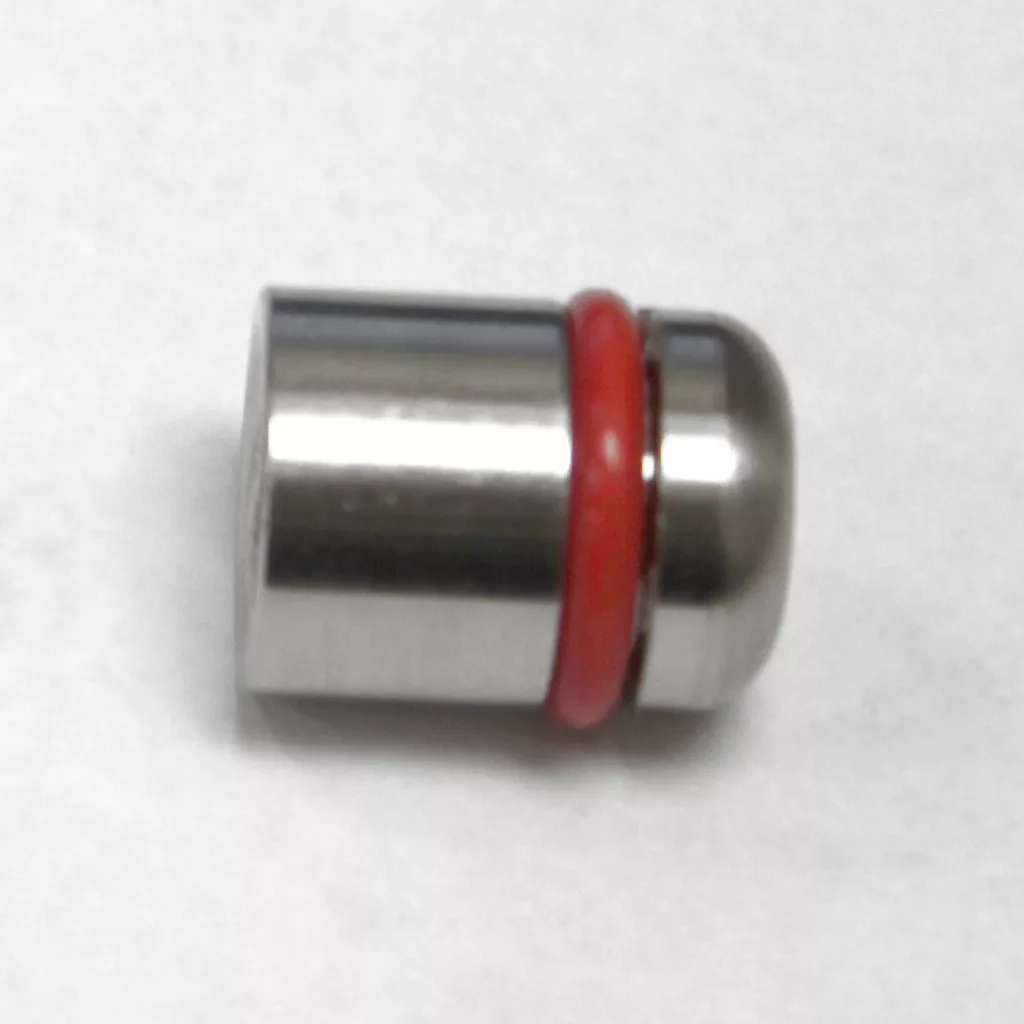

part

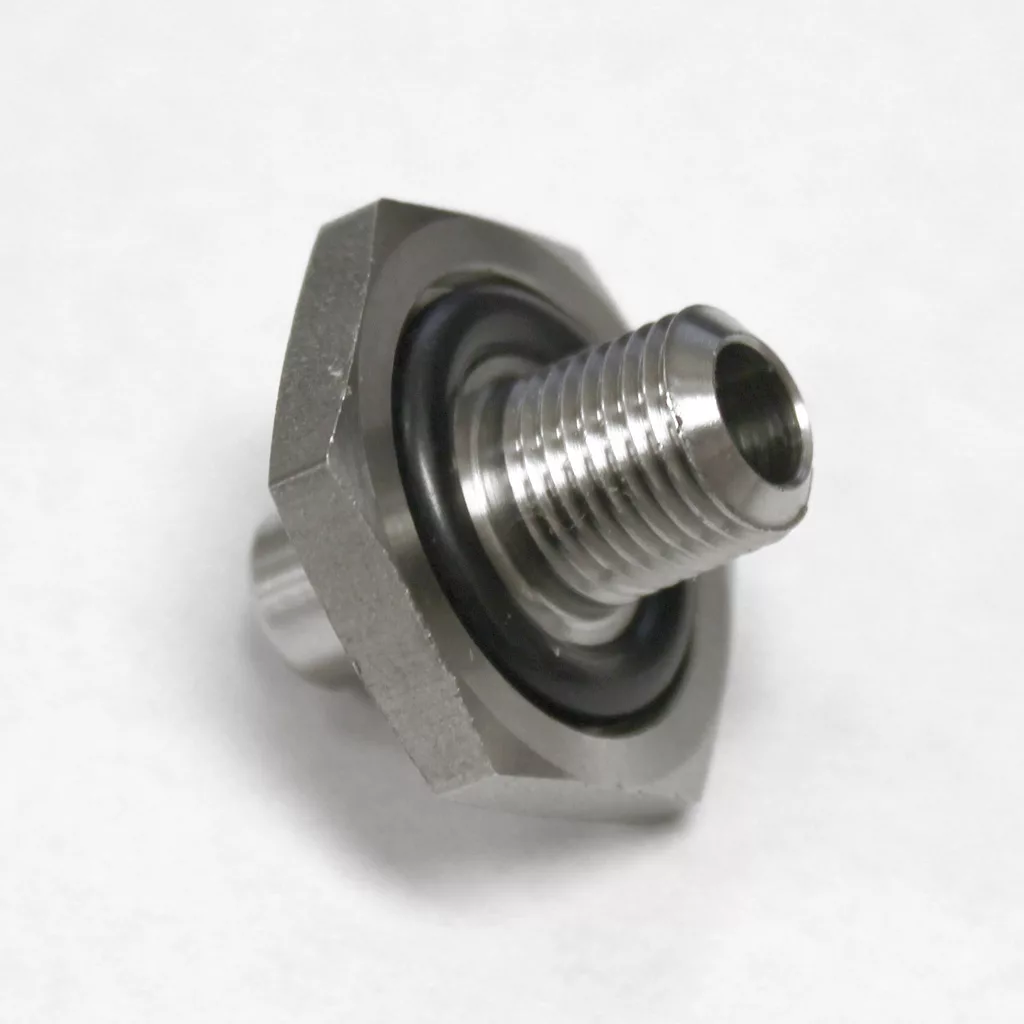

part (separated)

  1. Place the larger o-ring onto the adapter. At the bottom of the water tank there is a hole. Insert the adapter so that the threads are sticking out the bottom. The o-ring will be on the inside of the water tank. You may have to screw it in.

part

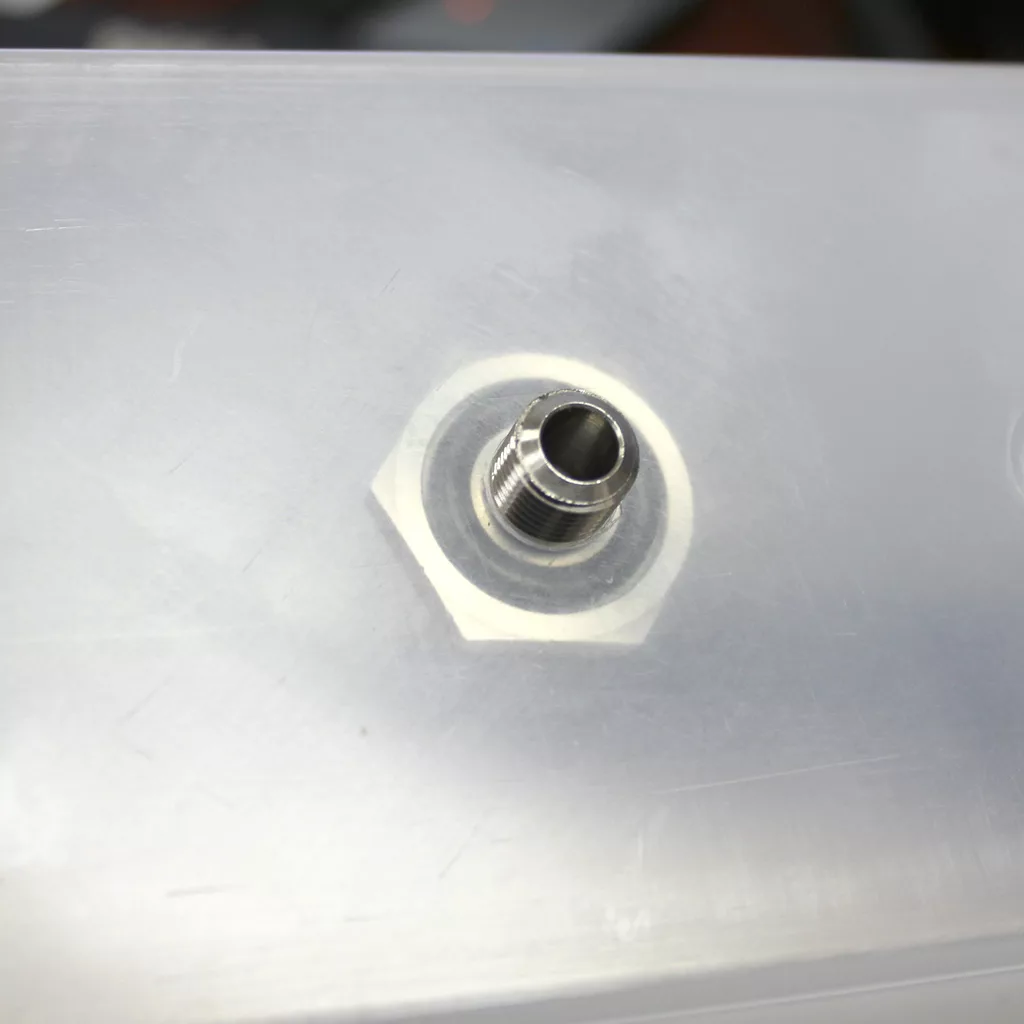

installed

  1. Place the smaller o-ring on the threads and insert the spring into the bottom hole of the adapter. The o-ring should be on the outside of the water tank.

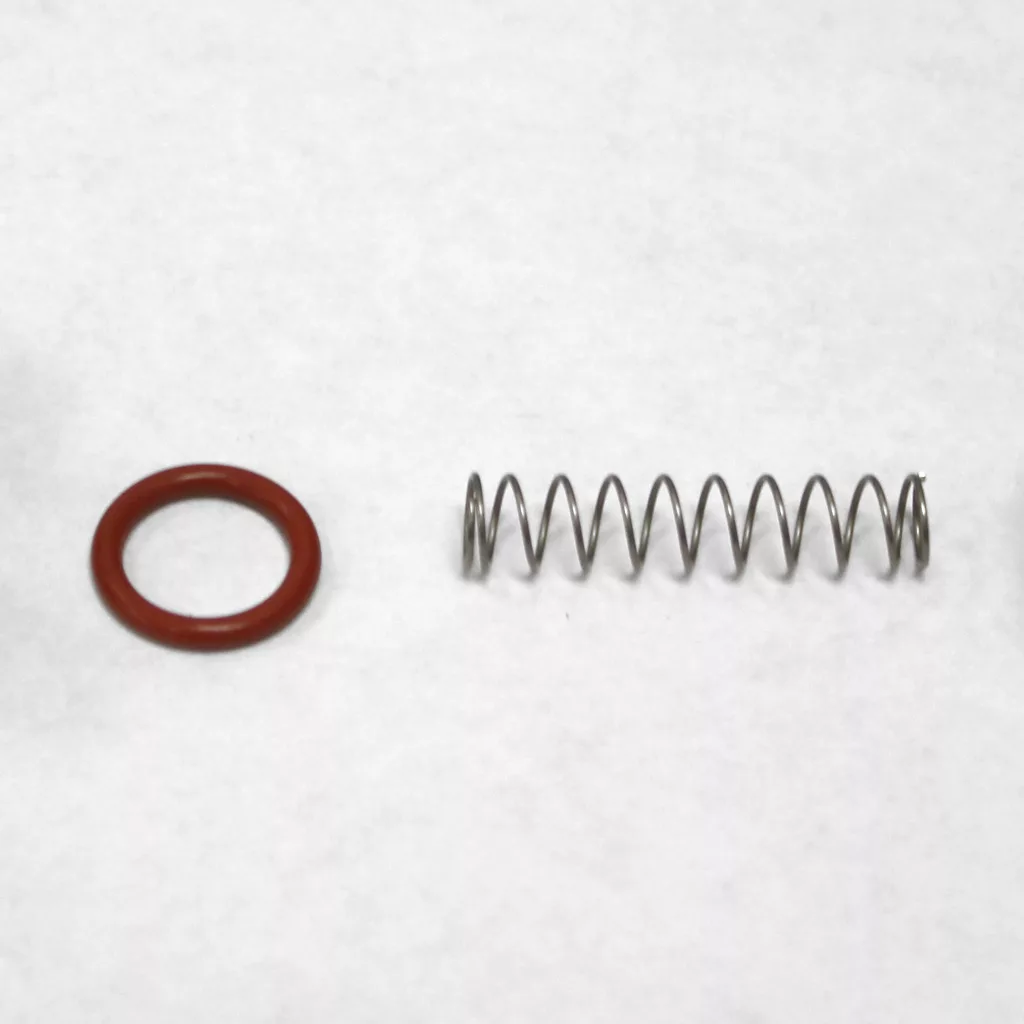

part

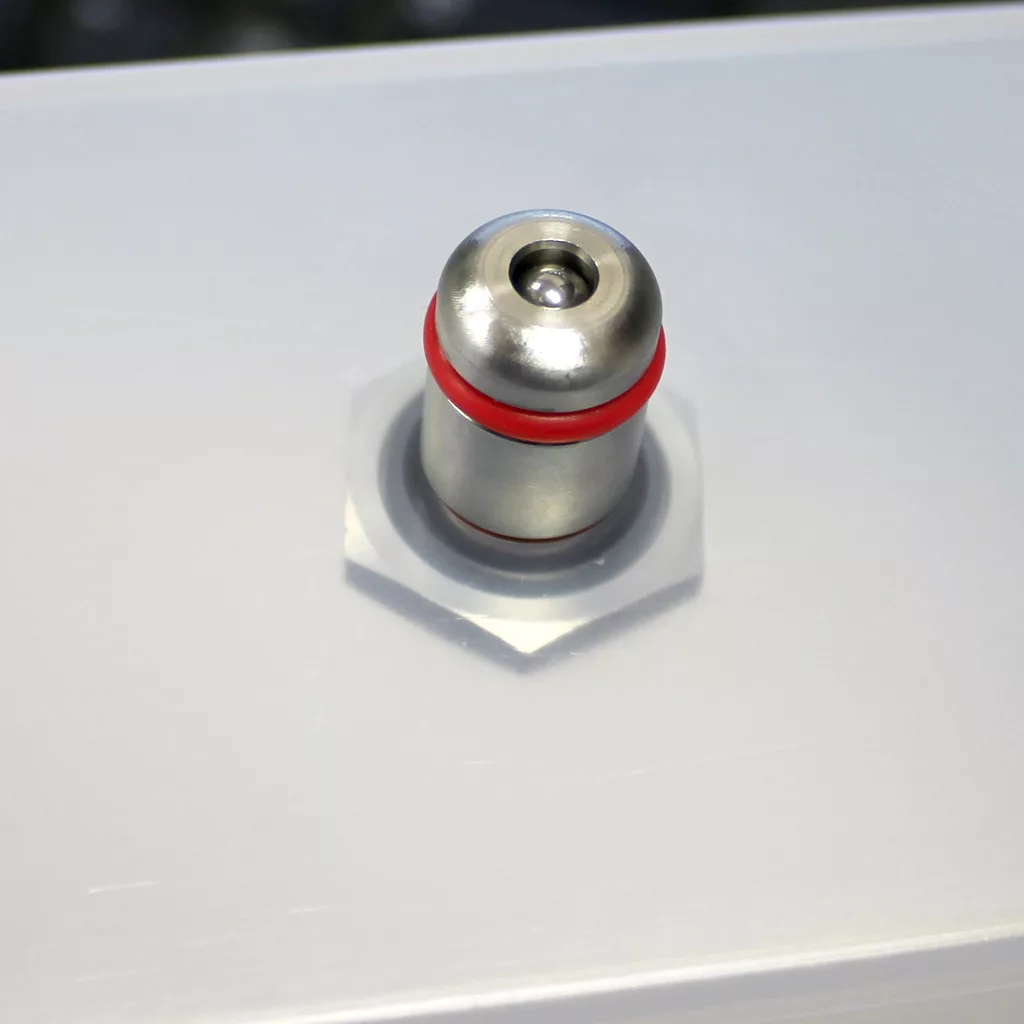

installed

  1. Screw the nut onto the bottom part of the adapter.

    Please email us at [email protected] if you need additional assistance.

part

installed


Please note the above information is subject to copyright. It cannot be published by any means without the expressed written consent of 1st-line Equipment, LLC.
