Check Wiring / Circuits Before Use – Ceado grinders

Ceado E37 models / E92 / E9

Sometimes, a wire will get loose in transport. Although you do not have to, it is a good idea to check the wires inside.

First power off & unplug the grinder. Remove the bean hopper and any excess beans. Turn the grinder upside down.

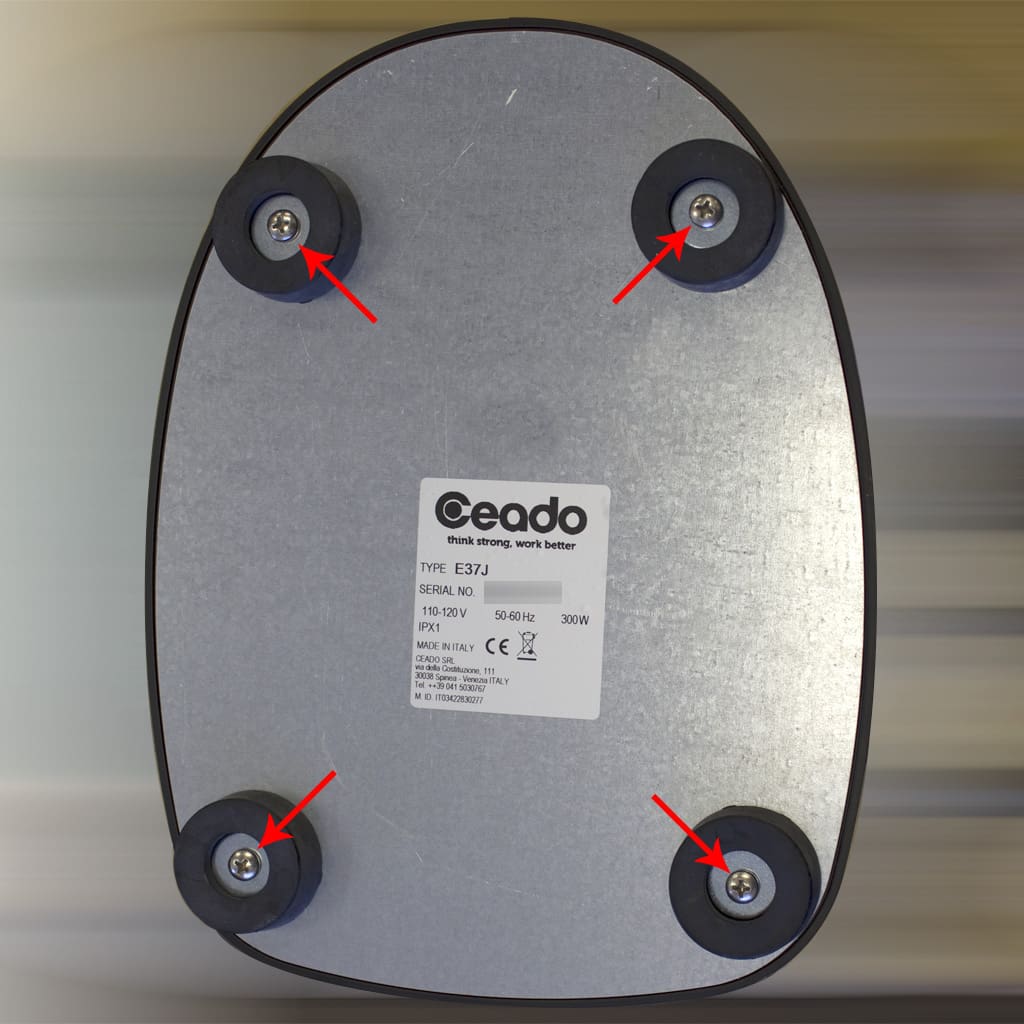

There are 4 Philips screws on each foot that you need to remove.

Ceado E37J

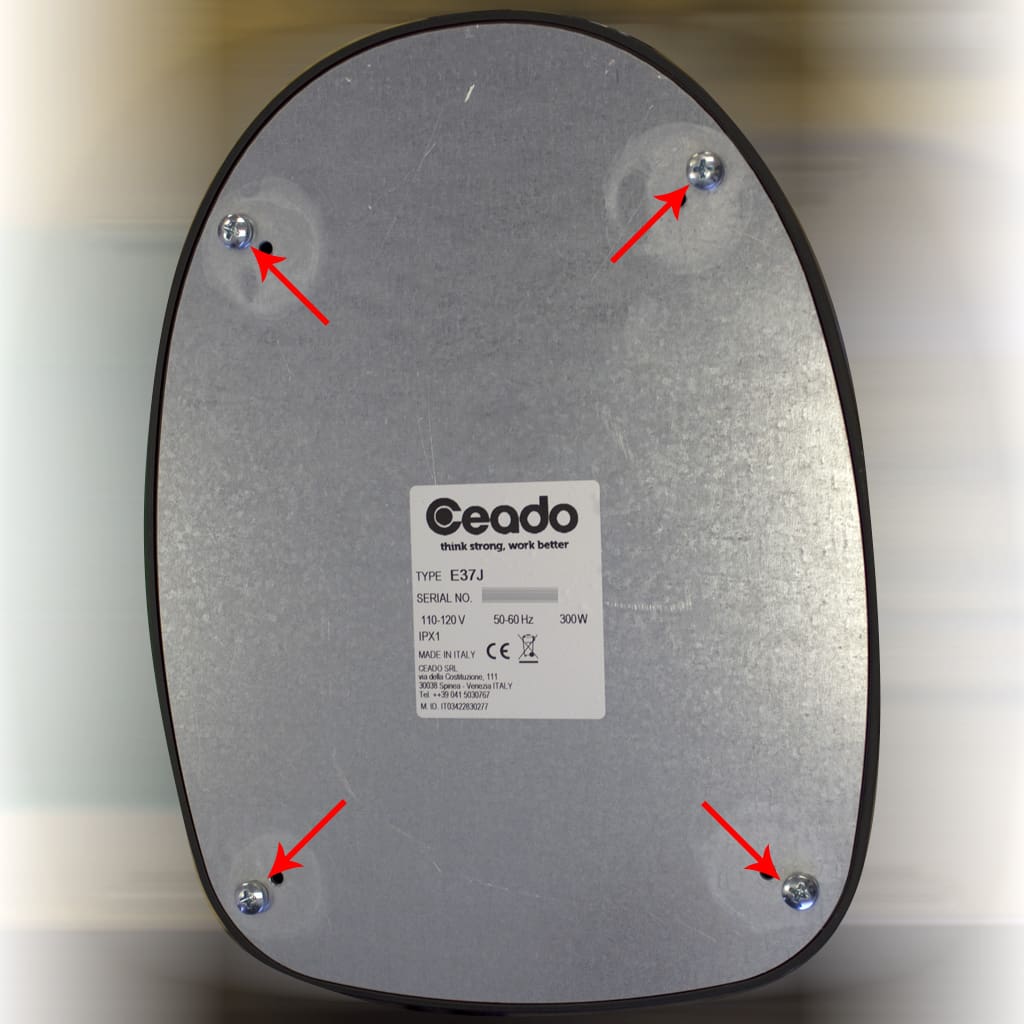

Underneath each foot is another Philips screw that you need to remove. Ceado E37J

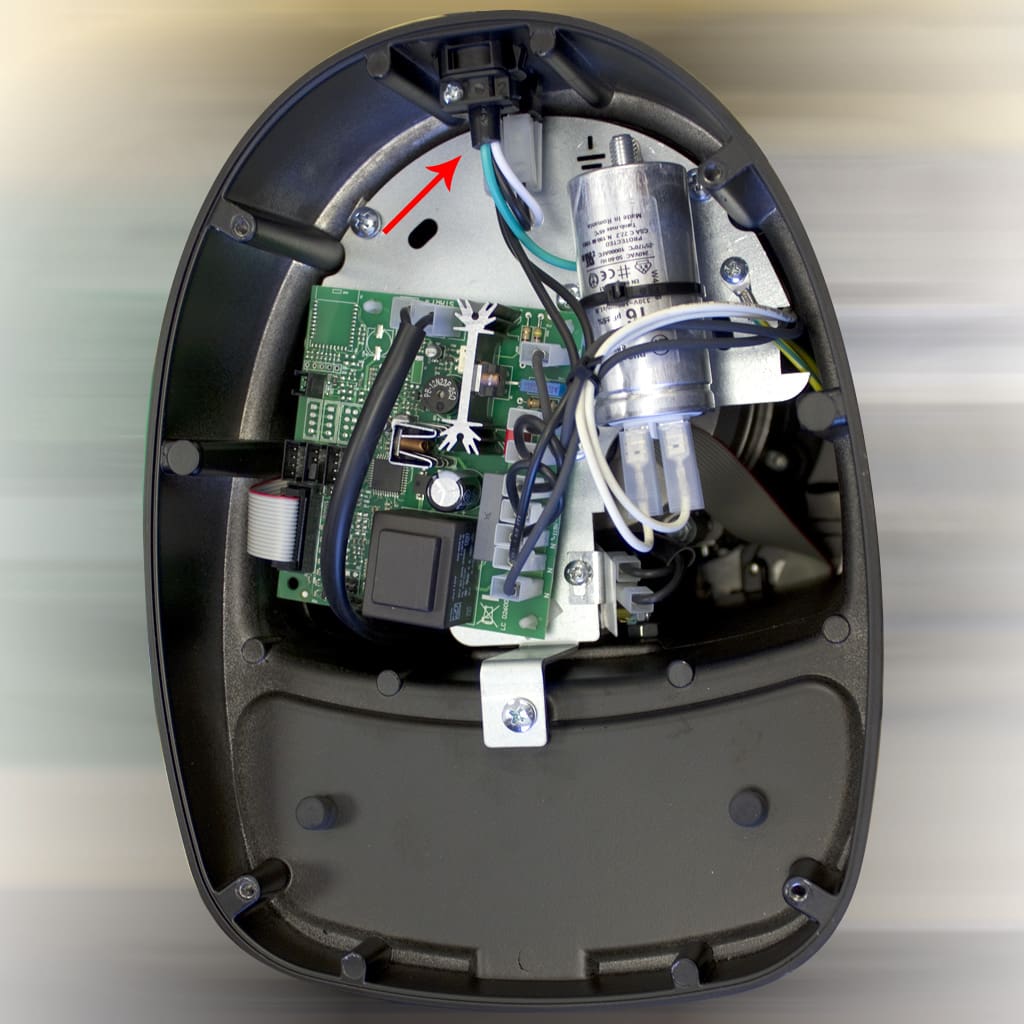

After you remove the bottom plate, you will have access to the wiring and circuits. Ceado E37J

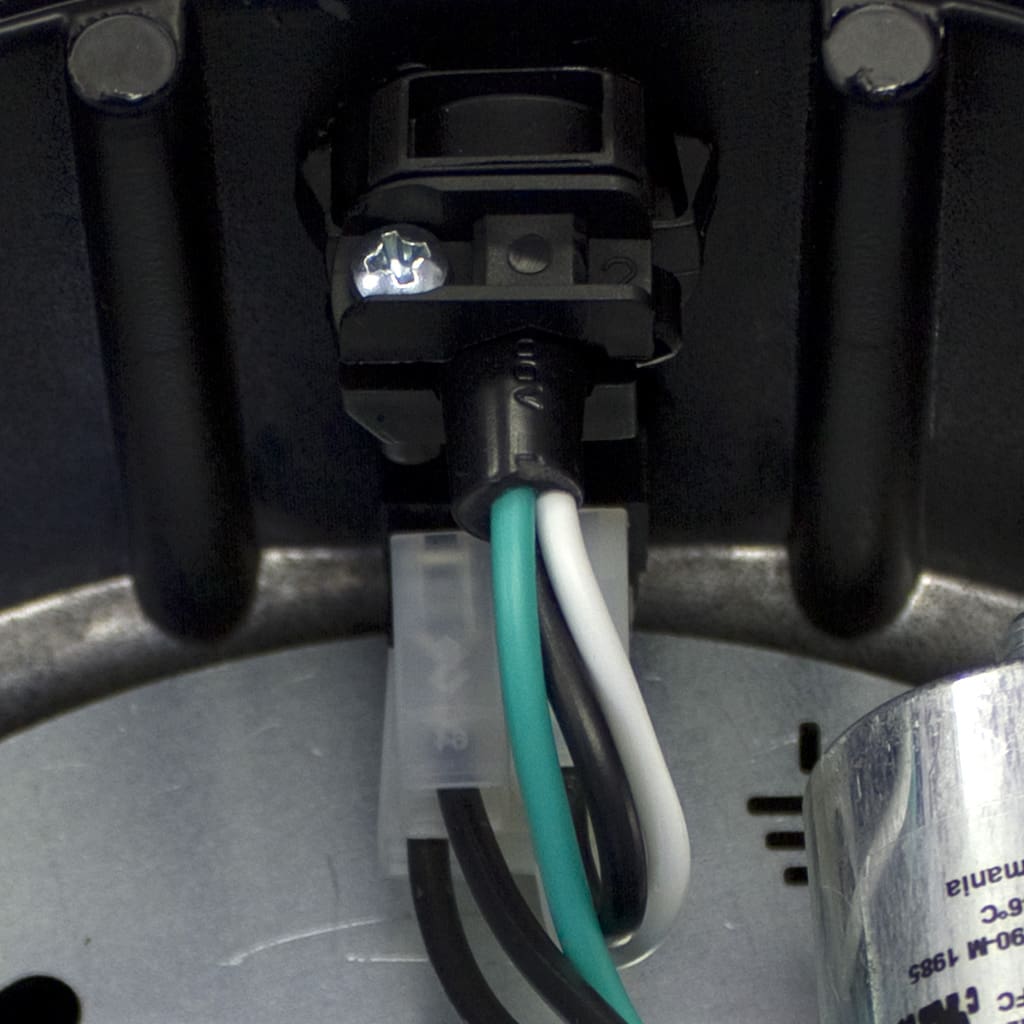

Check that no wires disconnected and if the motherboard came off the friction hold on the bottom base. Ceado E37J

Ceado E6P / E6X / E5P

First power off & unplug the grinder. Remove the bean hopper and any excess beans. Turn the grinder upside down.

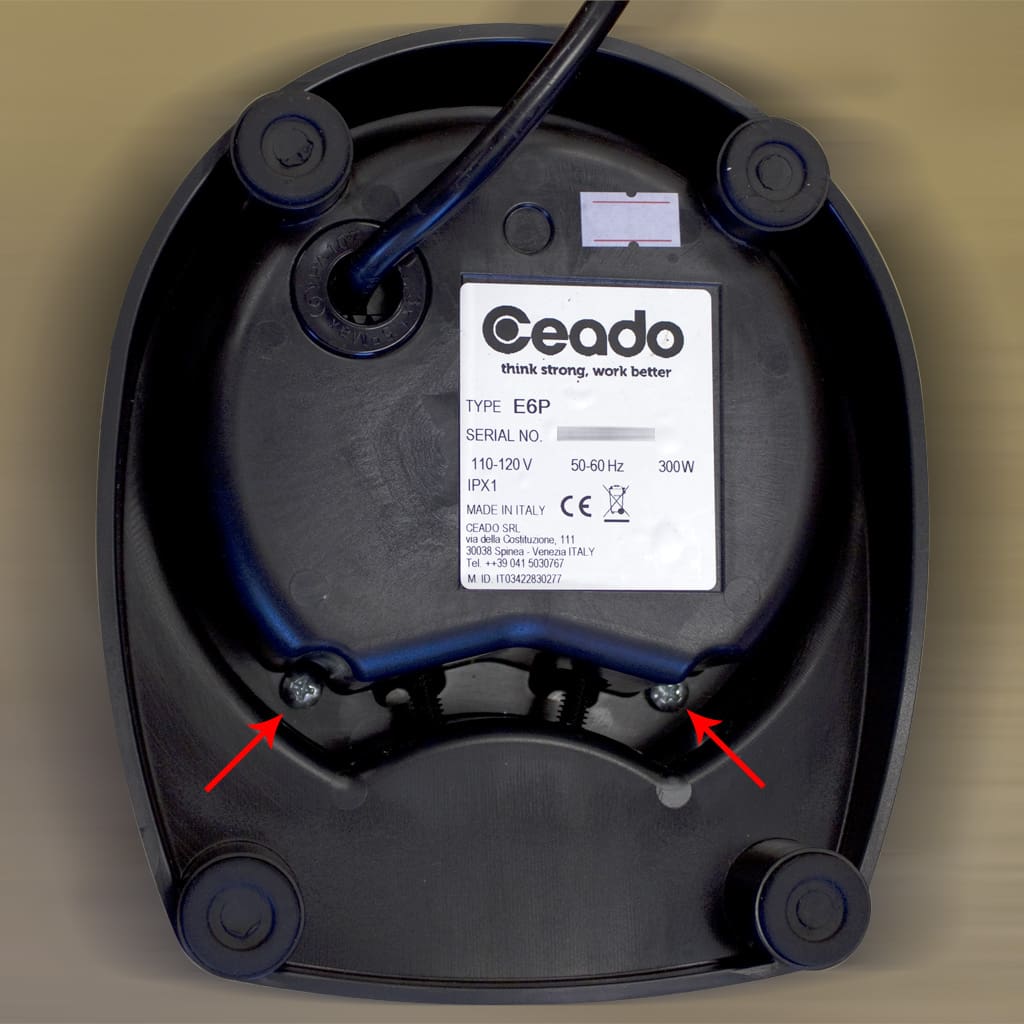

There are 2 Philips screws  near the front feet that you need to remove.

Ceado E6P

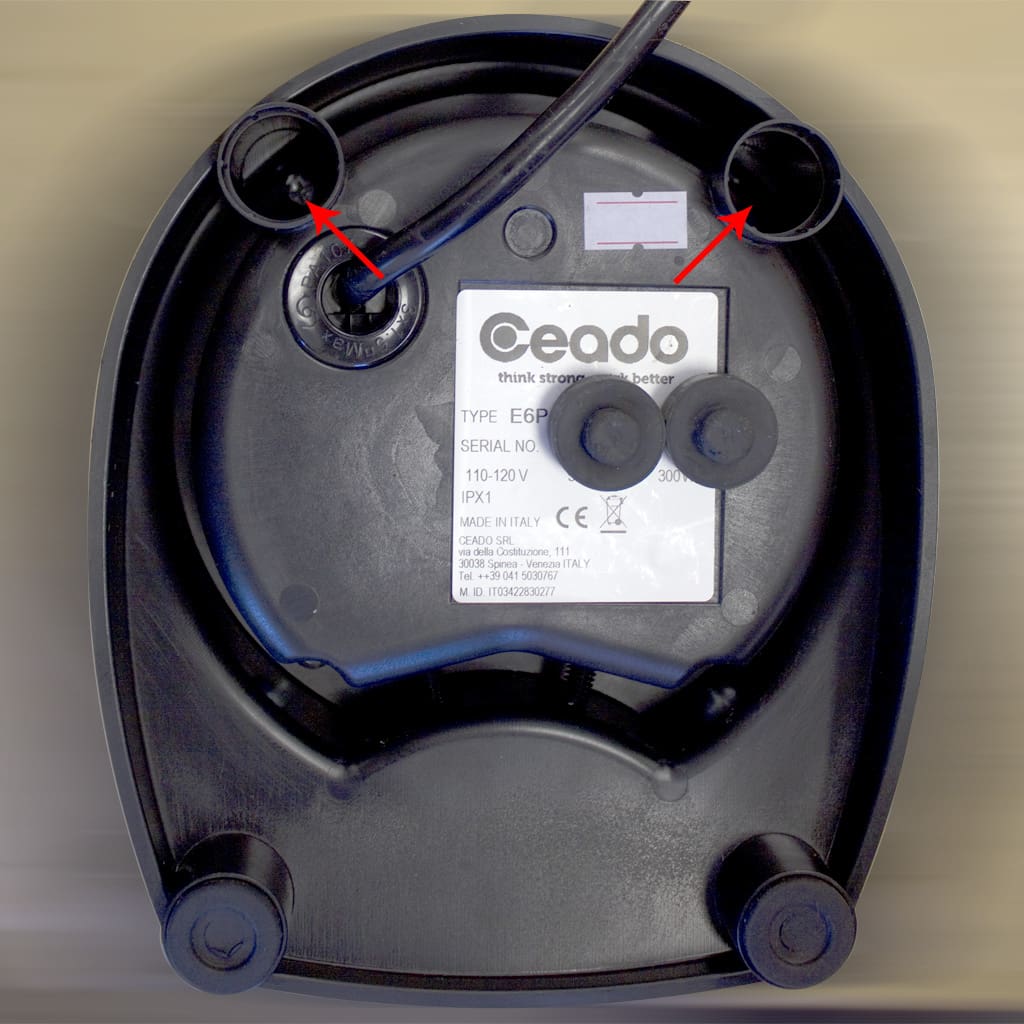

Underneath each back foot is another Philips screw that you need to remove. After you remove the bottom plate, you will have access to the wiring and circuits.

Check that no wires disconnected and if the motherboard came off the friction hold on the bottom base.

Ceado E6P
