Tank to Direct Connect Conversion – Strega switchable

Disclaimer: The technical support below for information purposes only. 1st-line Equipment, LLC is not responsible for any injury or damages resulting from such information. Please note that parts are available for purchase from 1st-line Equipment. These parts do not include any technical support. If you're not familiar with the technical aspects of repairing equipment, please order a diagnosis on our website. By continuing to read further, you agree to abide by all the terms and conditions on this web site. If you do not agree, please stop here.

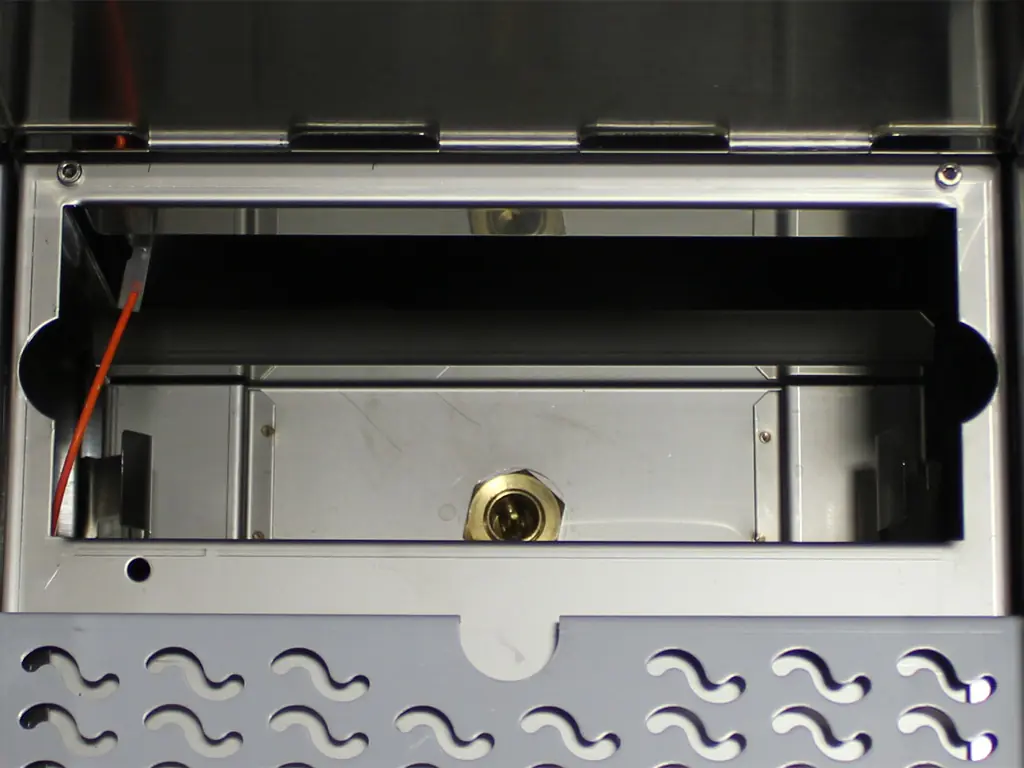

Here is a picture of the inside. There is a wire on the left hanging. The opening on the bottom is where the water tank will sit on top. inside tank set up

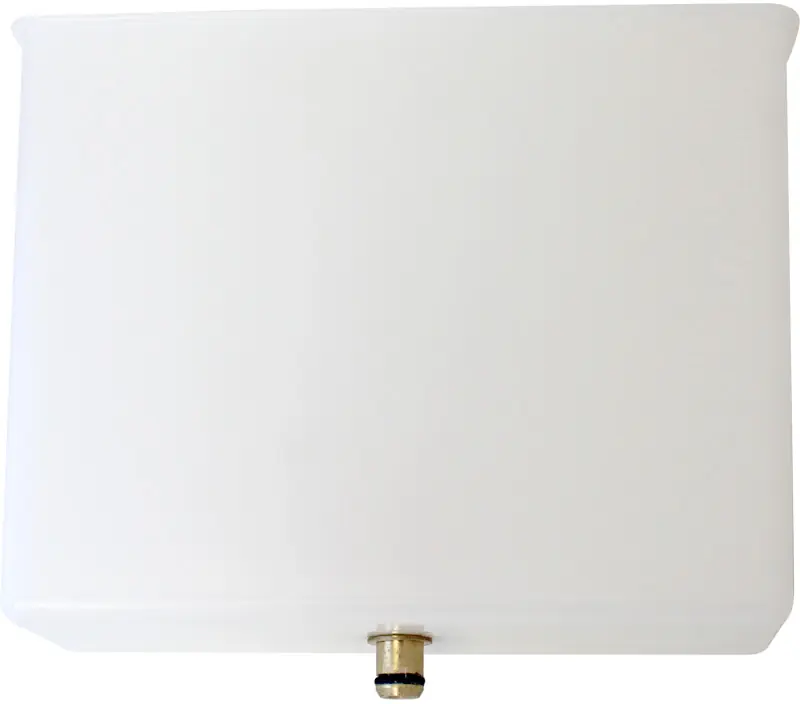

water tankThis is the tank. The bottom valve will be inserted into the opening in the picture above.

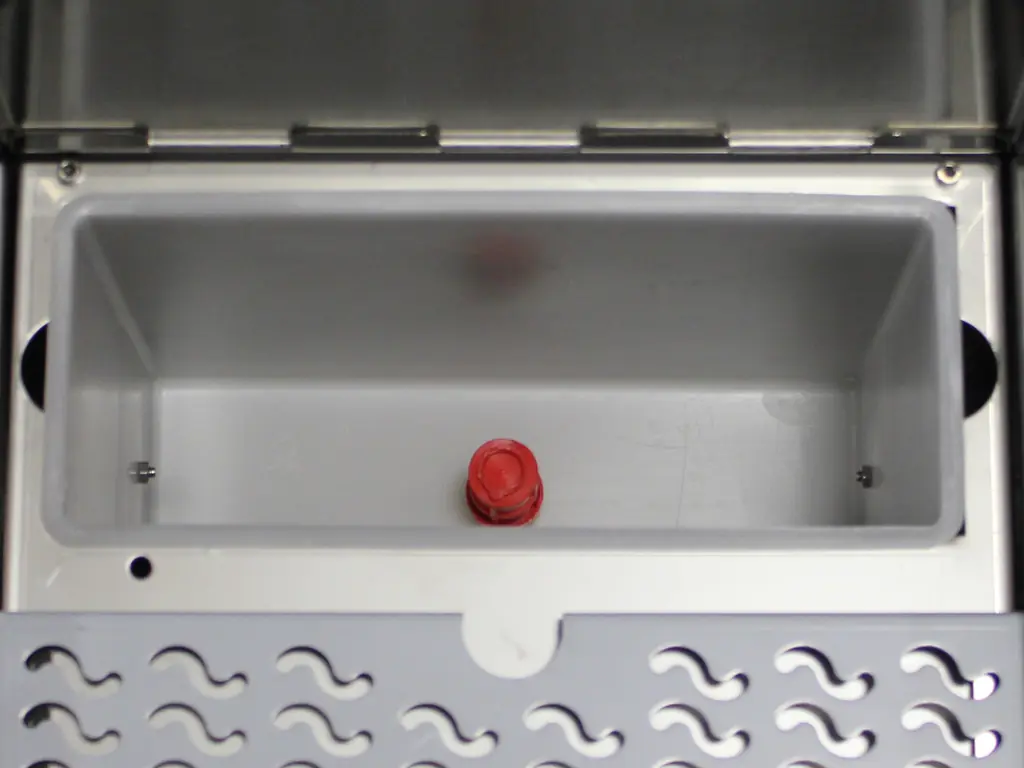

The picture on the right shows the tank inserted. The wire will be left hanging.

inside water tank

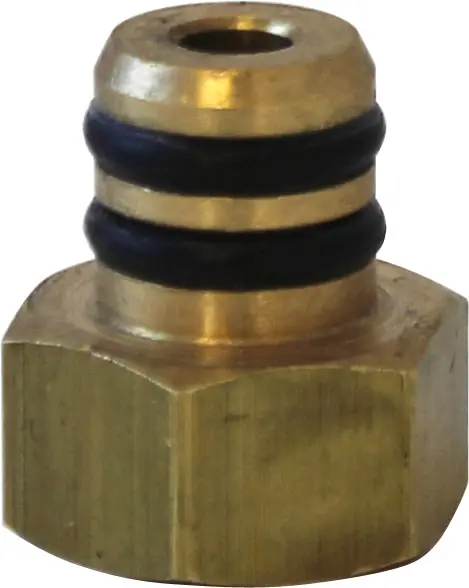

plugTo convert from a tank to a direct connect, you will need this nut which comes in the accessory box. Please note that there are no rivets on the nut.

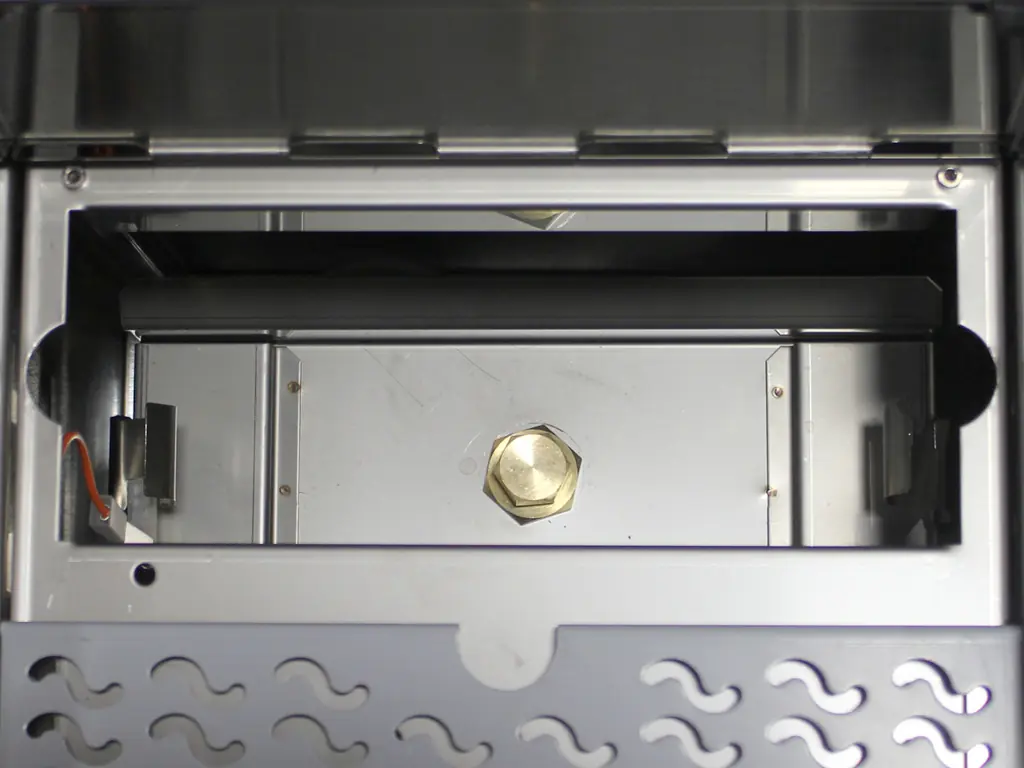

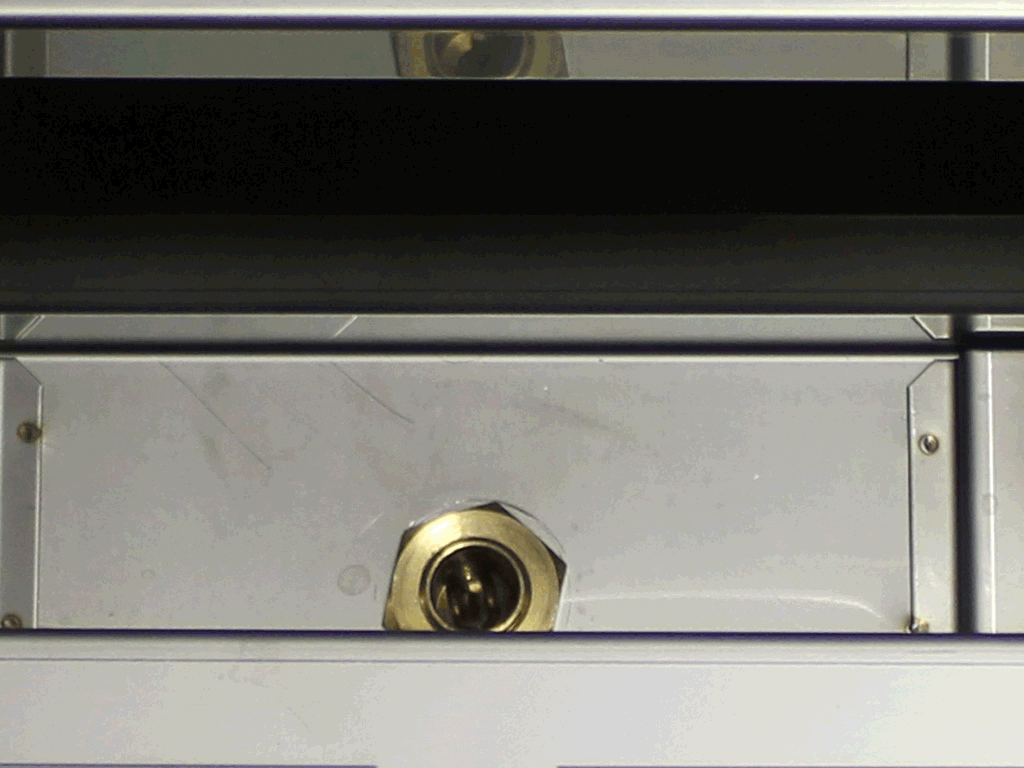

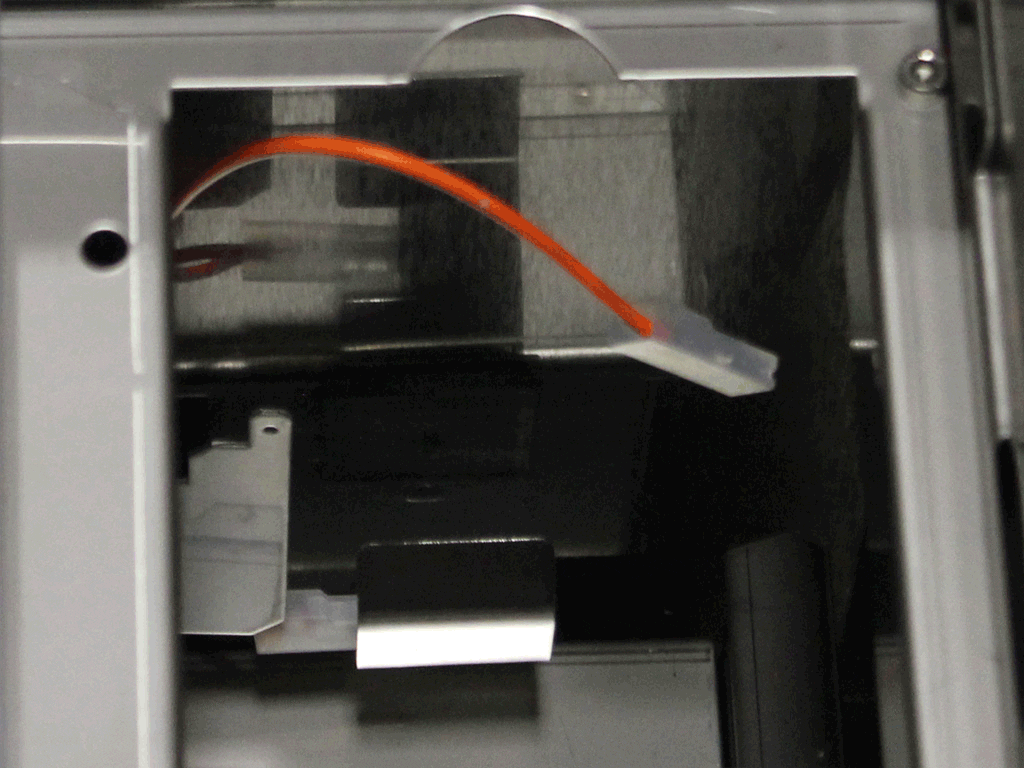

The picture on the right shows the direct connect setup. The wire is attached to a metal piece. The nut covers the opening. The best way to insert the nut is by “screwing” it in.

inside direct connect set up
wire plug
