Parts Diagram – Bezzera Duo MN
Finding your part
- Please use the parts diagrams provided below to determine the part(s) you need. Then use our search box above to find the part(s) on our website. If no results come up, more than likely we do not stock the part.
- If uncertain, please go to the equipment model or part product page. Then use the Q&A tab found on that web page to ask your question.
- Lastly, and only if the first 2 options were exhausted, please use our parts inquiry page.
- Our call center does not have the training to handle parts inquiries for over 60,000 different parts items. Asking any questions regarding parts will more than likely result in you being referred to the above steps.
- Please note also that all parts purchases are non-returnable or refundable and do not include technical support, instructions, or warranties as the purchase price of any part does not cover the cost of technical support. Technical support is available for repairing equipment in our shop.
- Sorry, we will only special order a part for a model we carry AND was purchased through our supply chain.
- Since we are unaware of the mechanical, electrical, and/or plumbing expertise of a parts buyer or the tools owned by a parts buyer, we are never able to advise if a self-repair can be performed.
COD. 9942067 REV. 04

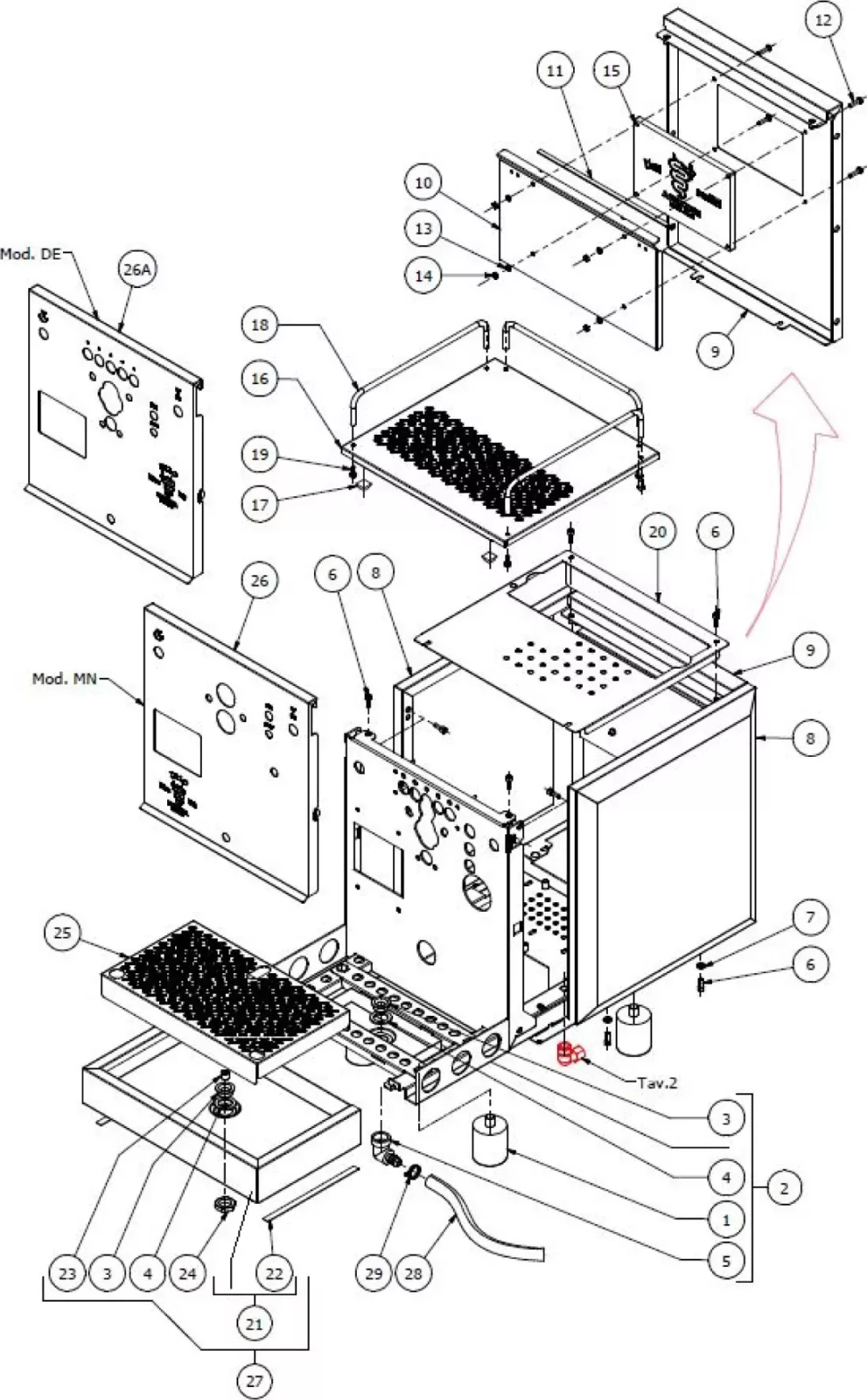

TABLE 1 (MN/DE)
| # | SKU |
| 1 | 7474218 |
| 2 | 5964676 |
| 3 | 5225230 |
| 4 | 5492022 |
| 5 | 5224403.01 |
| 6 | 7816002 |
| 7 | 7815003 |
| 8 | 5073640LL |
| 9 | 5073641DL |
| 10 | 5058453LW |
| 11 | 7663625LL |
| 12 | 7819919 |
| 13 | 7804401 |
| 14 | 7812601 |
| 15 | 5370012 |
| 16 | 5074671LW |
| 17 | 7474217 |
| 18 | 5163205.01CM |
| 19 | 7818604 |
| 20 | 5056350LW |
| 21 | 5968127R |
| 22 | 7497009 |
| 23 | 7823001 |
| 24 | 5221826 |
| 25 | 5074672LW |
| 26 | 5074924SG1 |
| 26A | 5074923SG |
| 27 | 5968124 |
| 28 | 5194654 |
| 29 | 7611502 |
| # | SKU | # | SKU |
| 1 | 5283062 | 34 | 5301504TR |
| 2 | 7815001 | 35 | 5162412LL |
| 3 | 5221844 | 36 | 5302057AL |
| 4 | 7816002 | 37 | 7816027 |
| 5 | 7304507TR | 38 | 7814002 |
| 6 | 7304517 | 39 | 5058411LL |
| 7 | 7666005 | 40 | 7470604 |
| 8 | 5162421LL | 41 | 7474219 |
| 9 | 7304502TR | 42 | 5055752LW |
| 10 | 5162415LL | 43 | 7374002 |
| 11 | 5162414LL | 44 | 5302065.01AL |
| 12 | 5492019 | 45 | 7496073.01 |
| 13 | 5221835 | 46 | 5471521.01 |
| 14 | 7815003 | 47 | 5471509 |
| 15 | 7812601 | 48 | 5224617 |
| 16 | 5058463LL | 49 | 7496076 |
| 17 | 7474212 | 50 | 7373012 |
| 18 | 5221830 | 51 | 7611508 |
| 19 | 7633012 | 52 | 7730509 |
| 20 | 7819901 | 53 | 5963171 |
| 21 | 7666006.01 | 54 | 7741005.01 (110V) |
| 22 | 5162413LL | 7742404.01 (220/240V) | |
| 23 | 5194554 | 55 | 7703018 |
| 24 | 7611516 | 56 | 7630339 (110V) |
| 25 | 7303001TR | 7630341 (220/230V) | |
| 26 | 7304505TR | 7630343 (240V) | |
| 27 | 7304538TR | 57 | 7701123 (110V) |
| 28 | 5194617 | 7702322 (220/230V) | |
| 29 | 5225228.01 | 7702415 | |
| 30 | 7304534TR | 58 | 7200514 |
| 31 | 7826206 | 59 | 7492004 |
| 32 | 7304001TR | 60 | 5226416AL |
| 33 | 5223003 |
| # | SKU |
| 1 | 5493042 |
| 2 | 5471539 |
| 3 | 7496018 |
| 4 | 5471505 |
| 5 | 7496052 |
| 6 | 5471019 |
| 7 | 5283053TP |
| 8 | 5224615TP |
| 9 | 5302017TP |
| 10 | 5302077TP |
| 11 | 5224620TP |
| 12 | 5965212.01AL |

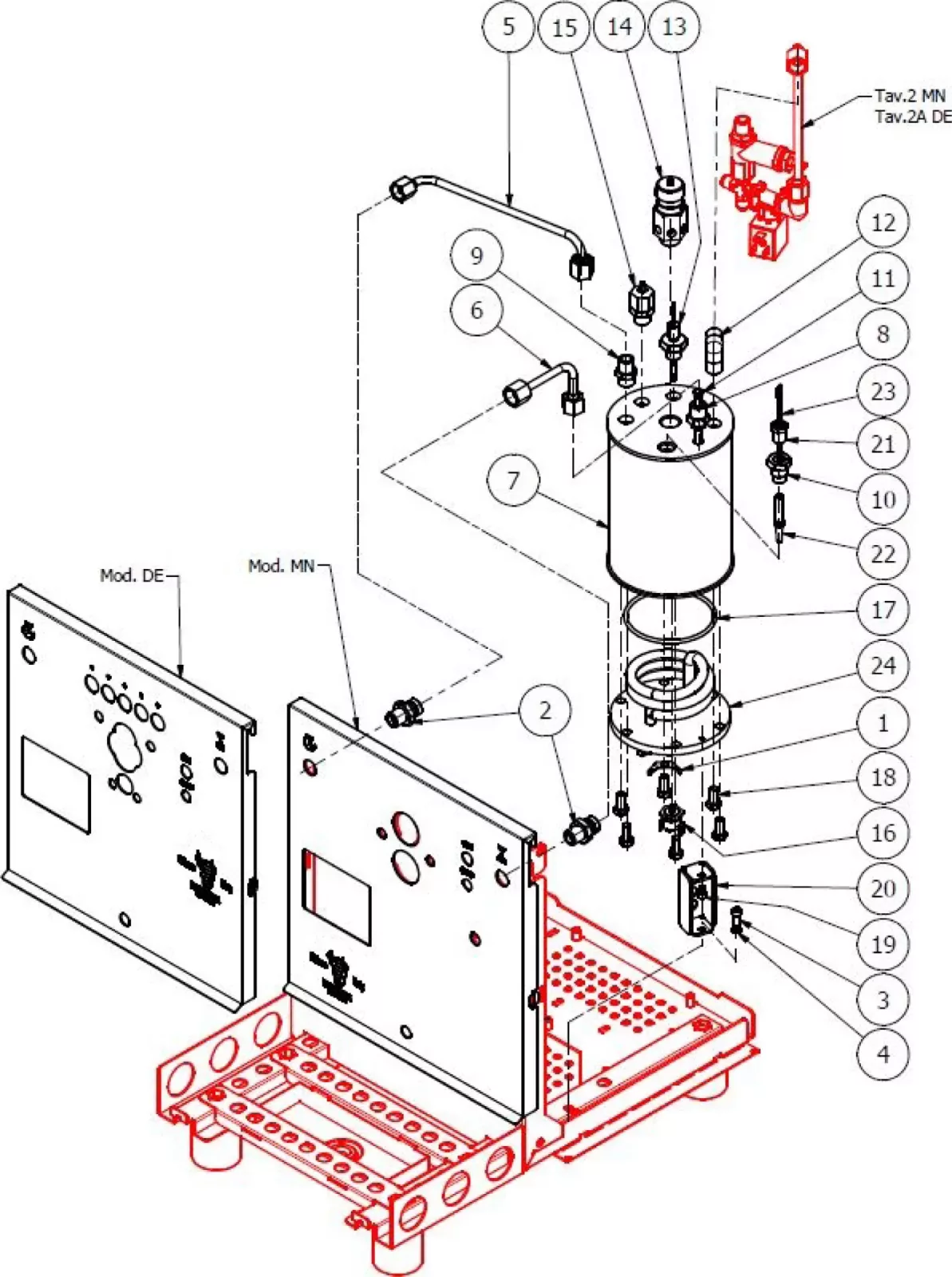

| # | SKU |
| 1 | 5163374LL |
| 2 | 5164092LL |
| 3 | 5320527BL |
| 4 | 5494016 |
| 5 | 5302006TP |
| 6 | 5192320 |
| 7 | 7666008 |
| 8 | 7814001 |
| 9 | 7663573 |
| 10 | 5722312TP (230V) |
| 5722313TP (115V) | |
| 11 | 5301507TR |
| 12 | 7826212 |
| 13 | 7434009 |
| 14 | 5164091R |
| 15 | 5302011 |
| 16 | 7303044TR |
| 17 | 5495008 |
| # | SKU |
| 1 | 7615002 |
| 2 | 5225416TP |
| 3 | 7816002 |
| 4 | 7814001 |
| 5 | 5162420LL |
| 6 | 5162419LL |
| 7 | 5320528BL |
| 8 | 5302006TP |
| 9 | 5302009 |
| 10 | 5225209TP |
| 11 | 5192321 |
| 12 | 5301506TR |
| 13 | 7666008 |
| 14 | 7452509.02 |
| 15 | 7452511.01 |
| 16 | 7434009 |
| 17 | 7496040 |
| 18 | 7816422 |
| 19 | 7816017 |
| 20 | 5058125LW |
| 21 | 5225205 |
| 22 | 5192001 |
| 23 | 5265807 |
| 24 | 5721128.01AL (120V 1200W) |
| 5722239.01AL (220/240V 1100/1300W) |
| # | SKU |
| 1 | 7811402 |
| 2 | 7493011 |
| 3 | 5267013 |
| 4 | 7479940 |
| 5 | 7479938 |
| 6 | 7479939 |
| 7 | 7479937 |
| 8 | 7479936 |
| 9 | 7479935 |
| 10 | 7479934 |
| 11 | 7479956 |
| 12 | 7479955 |
| 13 | 7479954 |
| 14 | 7479953 |
| 15 | 7479952 |
| 16 | 7479961 |
| 17 | 7479960 |
| 18 | 7479945 |
| 19 | 7479944 |
| 20 | 7479943 |
| 21 | 7479957 |
| 22 | 7479942 |
| 23 | 7479946 |
| 24 | 5493039 |
| 25 | 5471022 |
| 26 | 7479941 |
| 27 | 7479951 |
| 28 | 7479950 |
| 29 | 7479967 |
| 30 | 7479968 |
| 31 | 7479969 |
| 32 | 7479970 |
| 33 | 7479971 |
| 34 | 7479931 |
| 35 | 7479947 |
| 36 | 7479948 |
| 37 | 7372004 |
| 38 | 7479933 |
| 39 | 7479949 |
| 40 | 5963576AL |
| # | SKU |
| 1 | 7496052 |
| 2 | 5283055TW |
| 3 | 5494004 |
| 4 | 5496042 |
| 5 | 5225610 |
| 6 | 5222823CM |
| 7 | 5221826CM |
| 8 | 5260204DL |
| 9 | 5471513 |
| 10 | 7372004 (wood) |
| 7371511.01 (black) | |
| 11 | 5261801 |
| 12 | 5224603TP |
| 13 | 7496072 |
| 14 | 5471532 |
| 15 | 5190501 |
| 16 | 7496073 |
| 17 | 7371004 |
| 19 | 7496095 |
| 20 | 5471037 |
| 21 | 7305019 |
| 22 | 5221872TW |
| 23 | 5226621DL |
| 24 | 5226622DL |
| 25 | 5493046 |
| 26 | 7479990.02TW |
| 27 | 7479985.02TW |
| 28 | 5964101 (wood) |
| 5964085.01AL (plastic) |
| # | SKU |
| 1 | 7615002 |
| 2 | 7812402 |
| 3 | 5057012 |
| 4 | 5493047.01 |
| 5 | 5493049 |
| 6 | 7816002 |
| 7 | 5053044 |
| 8 | 7826402 |
| 9 | 7822603 |
| 10 | 7814001 |
| 11 | 7614007 |
| 12 | 7614006 |
| 13 | 7372507 |
| 14 | 7633628 |
| 15 | 7633906 |
| 16 | 5221875CM |
| 17 | 7633326 |
| 18 | 7637209 |
| 19 | 7635424.01 |
| 20 | 7816203 |
| 21 | 7663007 |
| 22 | 7816017 |
| 23 | 7818009 |
| 24 | 5058124.01LL |
| 25 | 7661047.01PR |
| 26 | 5963187R (SW V1.1) |
| 5963169.03R (SW V2.0) | |
| 27 | 7551001 (USA 125V 15A) |
| 7551003 (USA 250V 20A) | |
| 7555001 (Schuko) | |
| 7554001 (UK) | |
| 7552001 (Australia) | |
| 7555003 (Switzerland) |
| # | SKU |
| 1 | 7990603 |
| 2 | 5372101 |
| 3 | 5373001 |
| 4 | 5471031.01 |
| 5 | 5471035 |
| 6 | 5471003 |
| 7 | 5471527 |
| 8 | 7479972.01TW |
| 9 | 7305006TW |
| 10 | 7305007TW |
| 11 | 5371205 |
| 12 | 7816026 |
| 13 | 7493021 |
| 14 | 5371203 |
| 15 | 5371204.01 |
| 16 | 7809810 |
| 17 | 5978508.02 |
| 18 | 5965588.02R (1-cup) |
| 5965590.02R (2-cup) |
TABLE 9 (MN)
| # | SKU |
| 1 | 7990603 |
| 2 | 5372101 |
| 3 | 5373001 |
| 4 | 5471031.01 |
| 5 | 5471035 |
| 6 | 5471003 |
| 7 | 5471527 |
| 8 | 7479972.01TW |
| 9 | 7305006TW |
| 10 | 7305007TW |
| 11 | 7371520 |
| 12 | 5965630R |
| 13 | 5965629R |
For more information, visit the Bezzera Duo MN product page.
