Drip Tray Conversion – Mitica

Disclaimer: The technical support below for information purposes only. 1st-line Equipment, LLC is not responsible for any injury or damages resulting from such information. Please note that parts are available for purchase from 1st-line Equipment. These parts do not include any technical support. If you're not familiar with the technical aspects of repairing equipment, please order a diagnosis on our website. By continuing to read further, you agree to abide by all the terms and conditions on this web site. If you do not agree, please stop here.

The Bezzera Mitica can work as a tank model using the water from a reservoir or as a direct connect model using the water hooked up to a water line.

The machine comes standard with a drip tray without a drain hole. There is a indent where the hole would be. You can either manually cut out the indent yourself, or purchase a drip tray with the hole seperately.

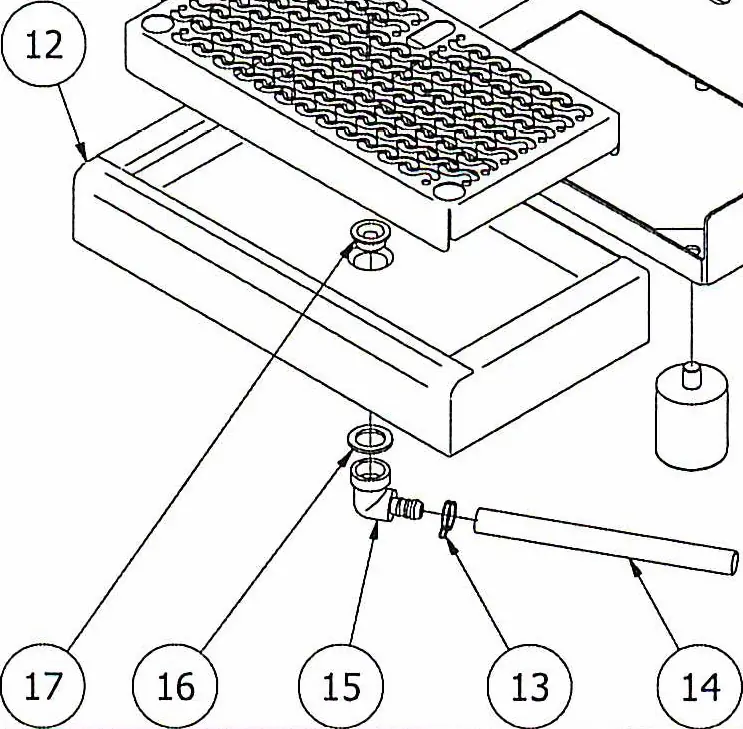

Below is a complete list of the drip tray and the necessary parts needed to hook up a drain line.

# SKU Description
12 5340503LL Drip Tray
13 7611502 Clamp
14 7303502 Hose
15 5224403 Holder
16 5492022 Gasket
17 5225230 Fitting
