Steam Leaking Through Steam Wand Tip – Ascaso Dream PID

Disclaimer: The technical statements, support, information and recommendations contained herein are believed to be accurate as of the date hereof, but 1st-line Equipment, LLC does not make representations or warranties, express or implied, as to its accuracy, its completeness, or the results to be obtained. The information is being provided for informational purposes only and is intended for use by persons having adequate skill and expertise regarding the proper selection, use and application of the products and recommendations and at their own risk and discretion.

1st-line Equipment, LLC is not responsible for any injury or damages from such information. Please note that parts are available for purchase from 1st-line Equipment, LLC self service parts portal. These parts do not include any technical support. If you're unfamiliar with the technical aspects of repairing equipment, please contact a professional for proper evaluation.

By continuing to read further, you agree to abide by all the terms and conditions on this website. If you disagree, please leave our website.

  • Unplug your espresso machine from the electrical outlet.
  • Allow the machine to fully cool.
  • Remove the top cover by removing the 2 Phillips screws from behind the grouphead.
    • It is easier to remove the screws when the machine is upside down. Before doing this, remove the water reservoir and drip tray. Afterward, turn the machine back upright.
  • Remove the knob by removing the Allen key screw.
  • Take out the large C-Clip.
  • Back out the large nut (this may be difficult as a slimline Crescent wrench may be needed).
  • The steam knob stem backs out, usually in reverse.
  • Inside there is another mechanism holding the gasket that makes the seal. It either fell off the holder, or the internal mechanism loosened from the steam knob stem.
  • In some cases, it is easier to remove the entire steam valve assembly from the machine because that one nut after the C-Clip is a super tight space.

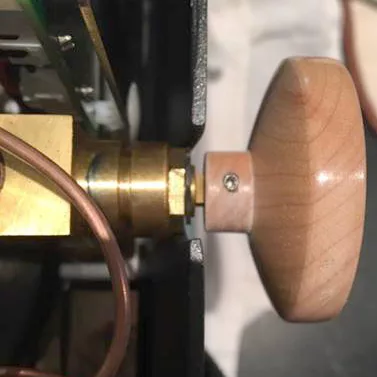

Close-up view of a wooden knob attached to a brass fitting, with a copper tube and metal components nearby, possibly part of an Ascaso Dream PID steam wand tip on a mechanical or scientific device. © 2025 1st-line.com

Play

Please note the above information is subject to copyright. It cannot be published by any means without the expressed written consent of 1st-line Equipment, LLC.
