Doser spring clip replacement – Ascaso doser models

Spring clip replacement Spring clip replacement

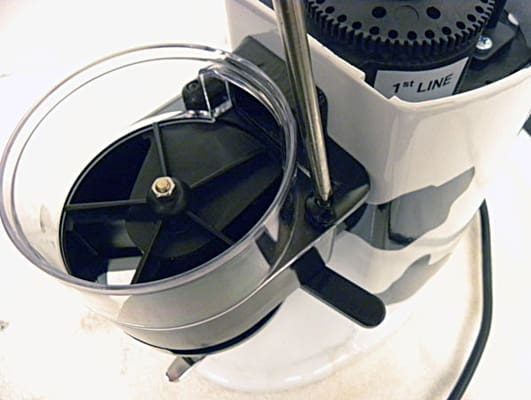

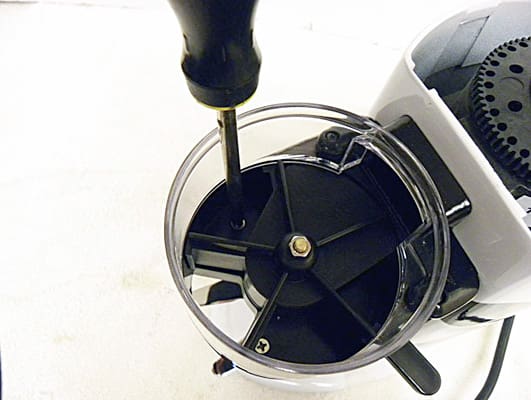

Remove the silver screws inside the doser. There are 3. Two are located in the front, one in the rear. Remove the two black screws on the outside of the doser. It will come off the grinder.
Spring clip replacement Spring clip replacement

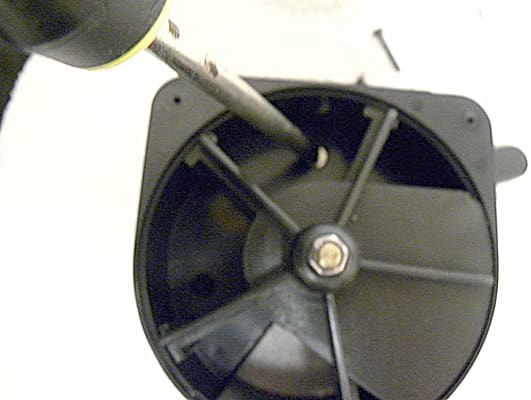

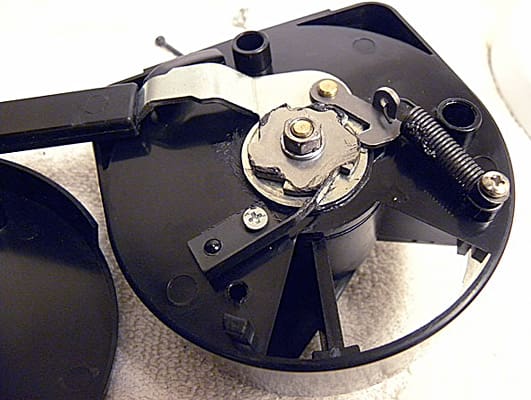

This is the third, rear screw inside the doser. After all three are removed- you can open the doser. This is the internals, with the spring on the lower left edge. It is held in place by 1 screw and a peg.
Spring clip replacement Spring clip replacement

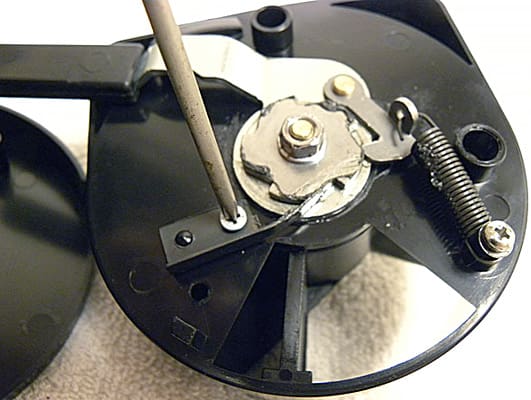

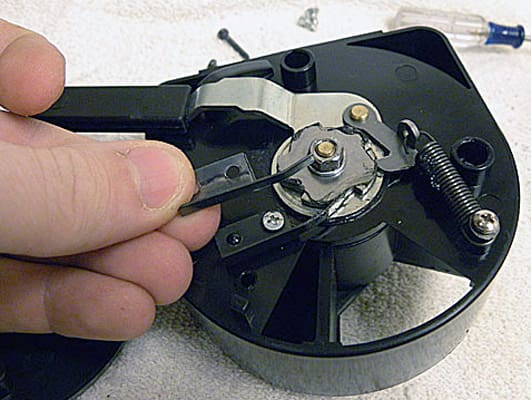

Remove the single screw. Replace with new spring. Reassemble in reverse order.
