Setting Pressurestat – Ventus 110V

  1. Remove the cups heater by unscrewing the 4 screws.

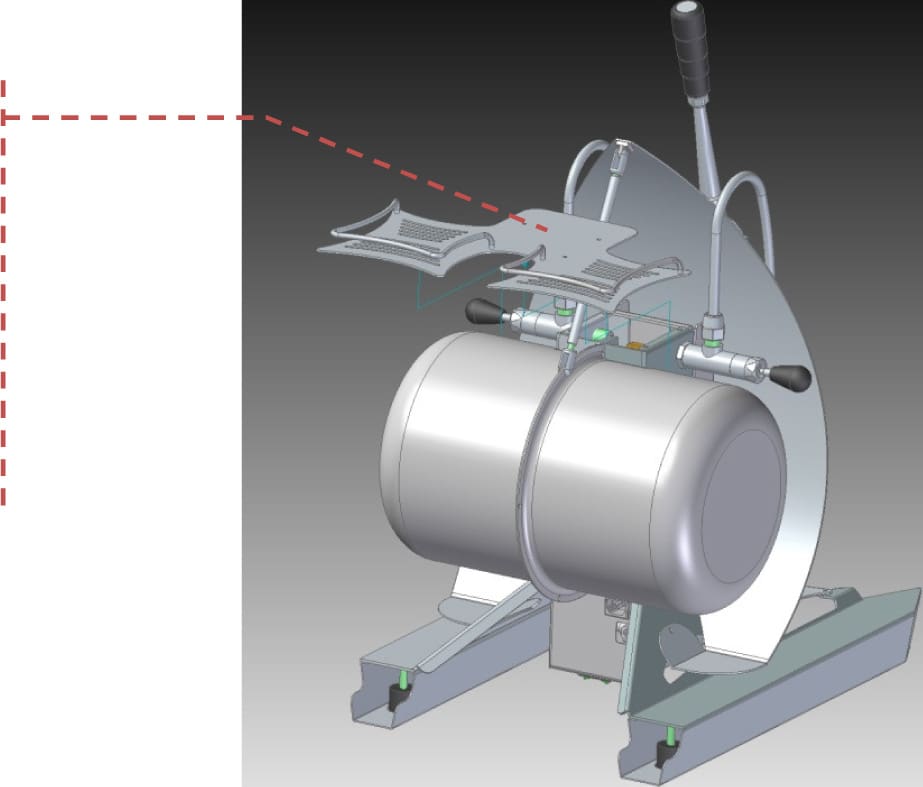

 ACS Ventus Setting Pressurstat - 01
  1. Unscrew the 4 screw and the upper cover.

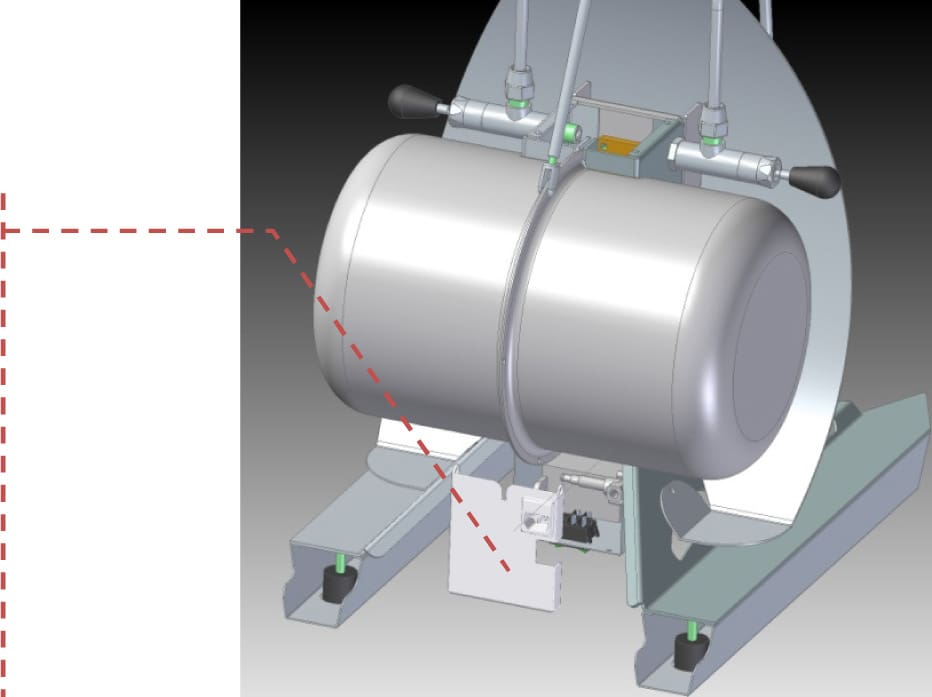

 ACS Ventus Setting Pressurstat - 02
  1. Remove the crown by removing first carefully the tie-rod and then the 4 screws holding the crowns together.

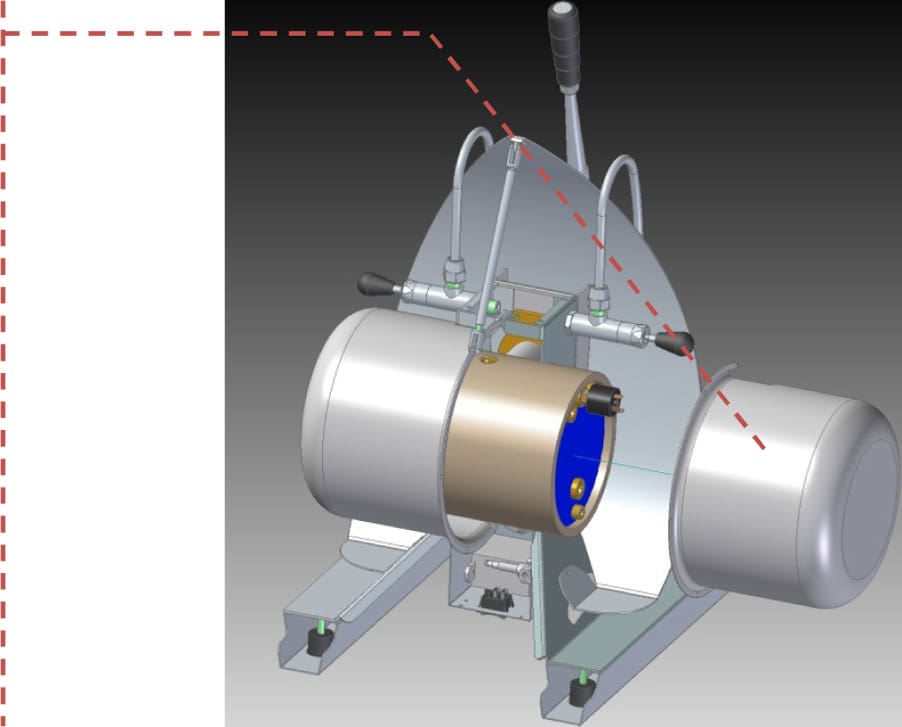

 ACS Ventus Setting Pressurstat - 03

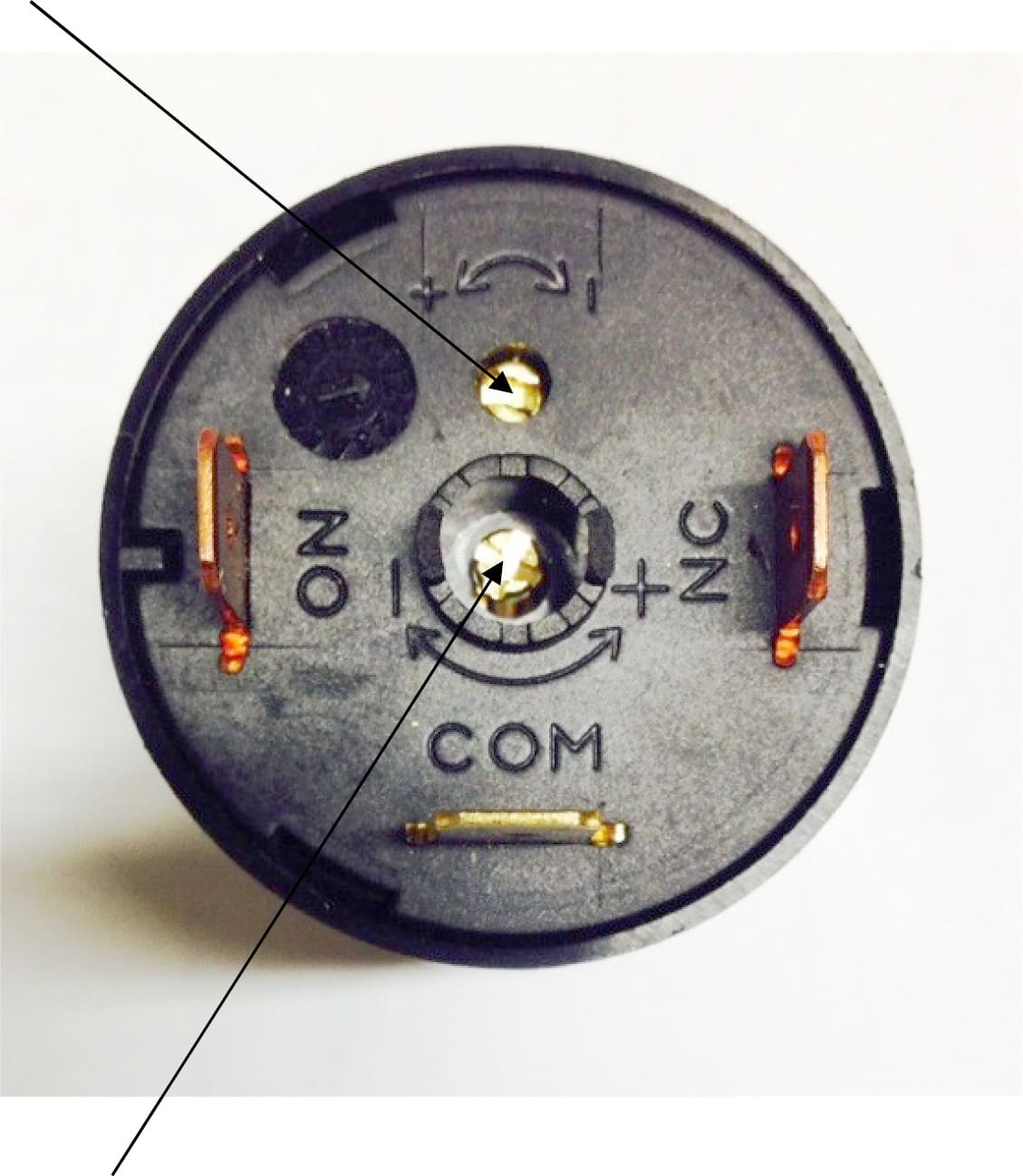

  1. Remove the red cap from the pressurestat. The pressurestat has 2 screws. #1 adjusts the differential (the pressure-stat on/off range). We strongly advise you not to touch it. #2 adjusts the pressure within a range of 0.5 – 4.5 bar.
 #1 – Differential adjustment / Regolazione differenziale

ACS Ventus Setting Pressurstat - 04
#2 – Adjustment pressure / Regolazione pessione
