How to access the Pressure Gauge

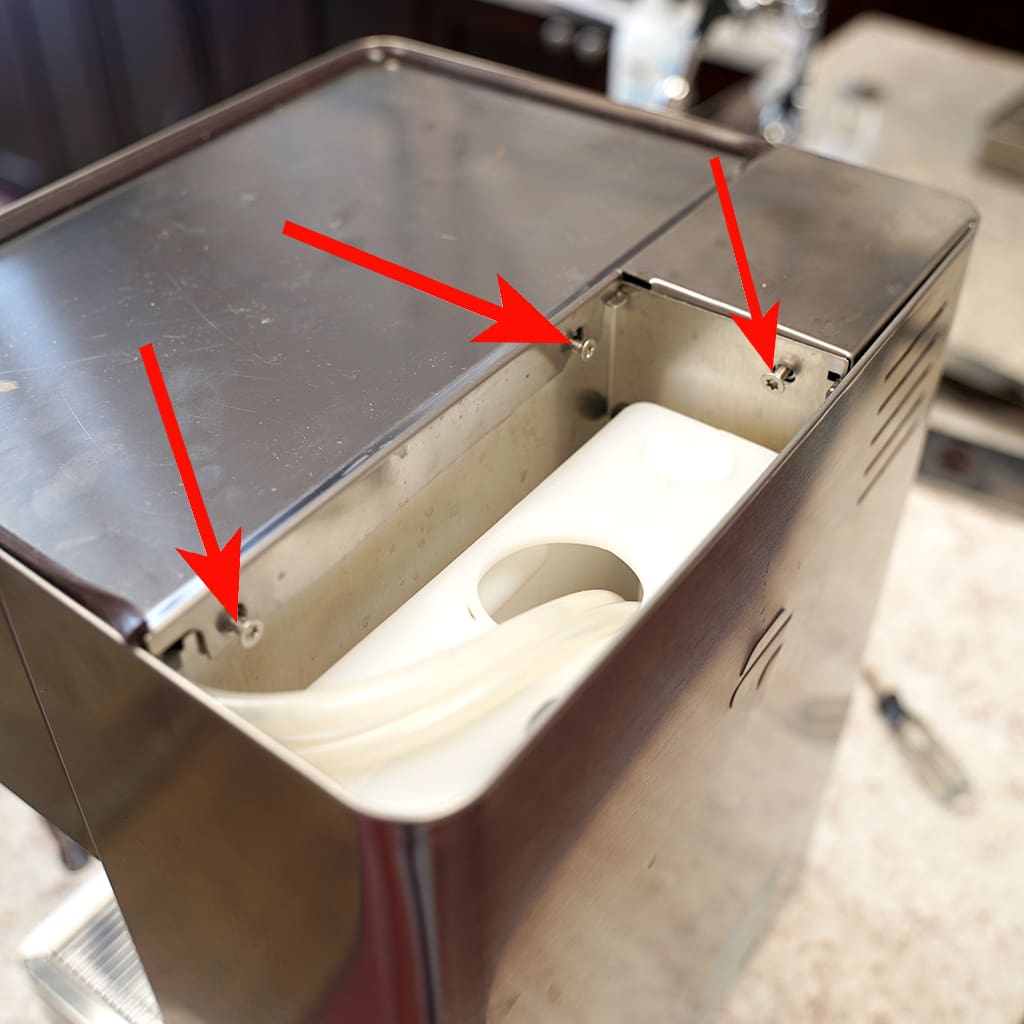

1. Remove the water tank cover and remove the three screws on top of the machine.

Lelit Elizabeth Technical SupportTop Panel Removal

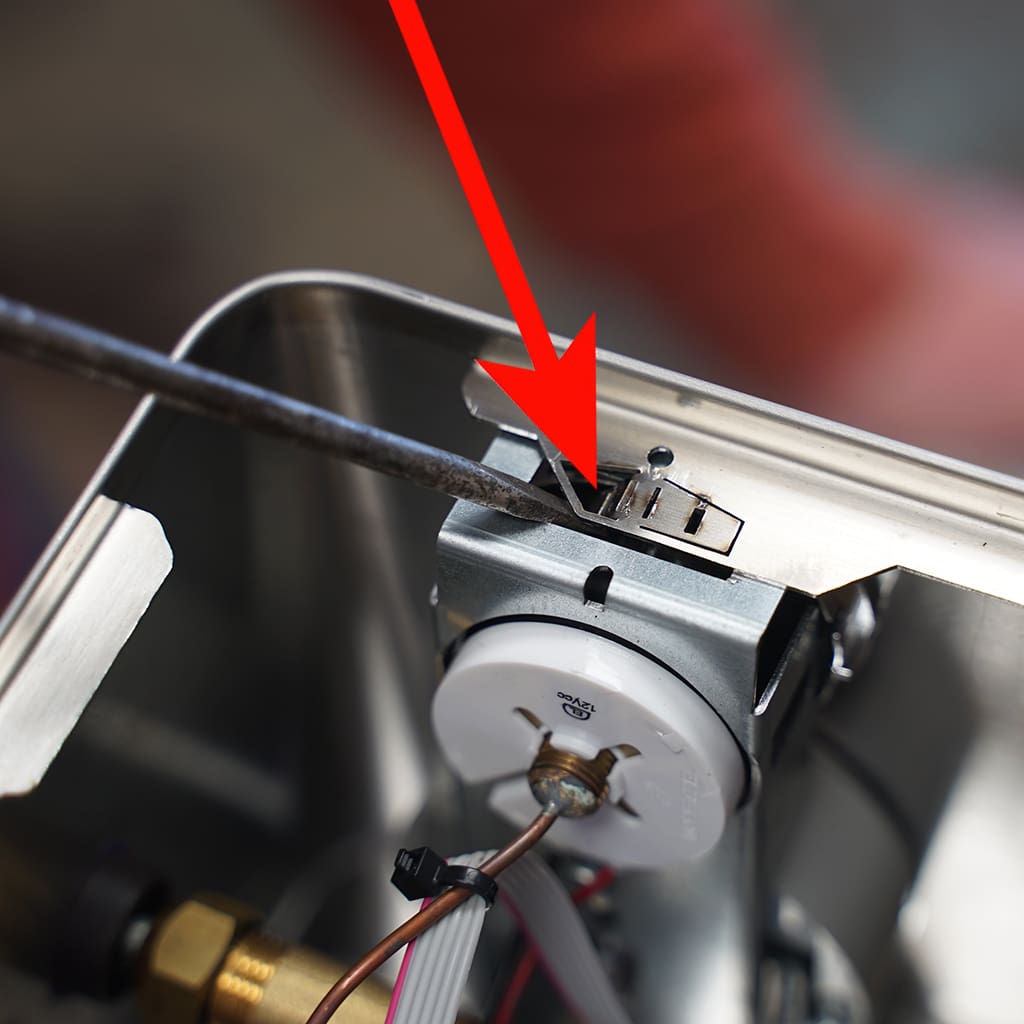

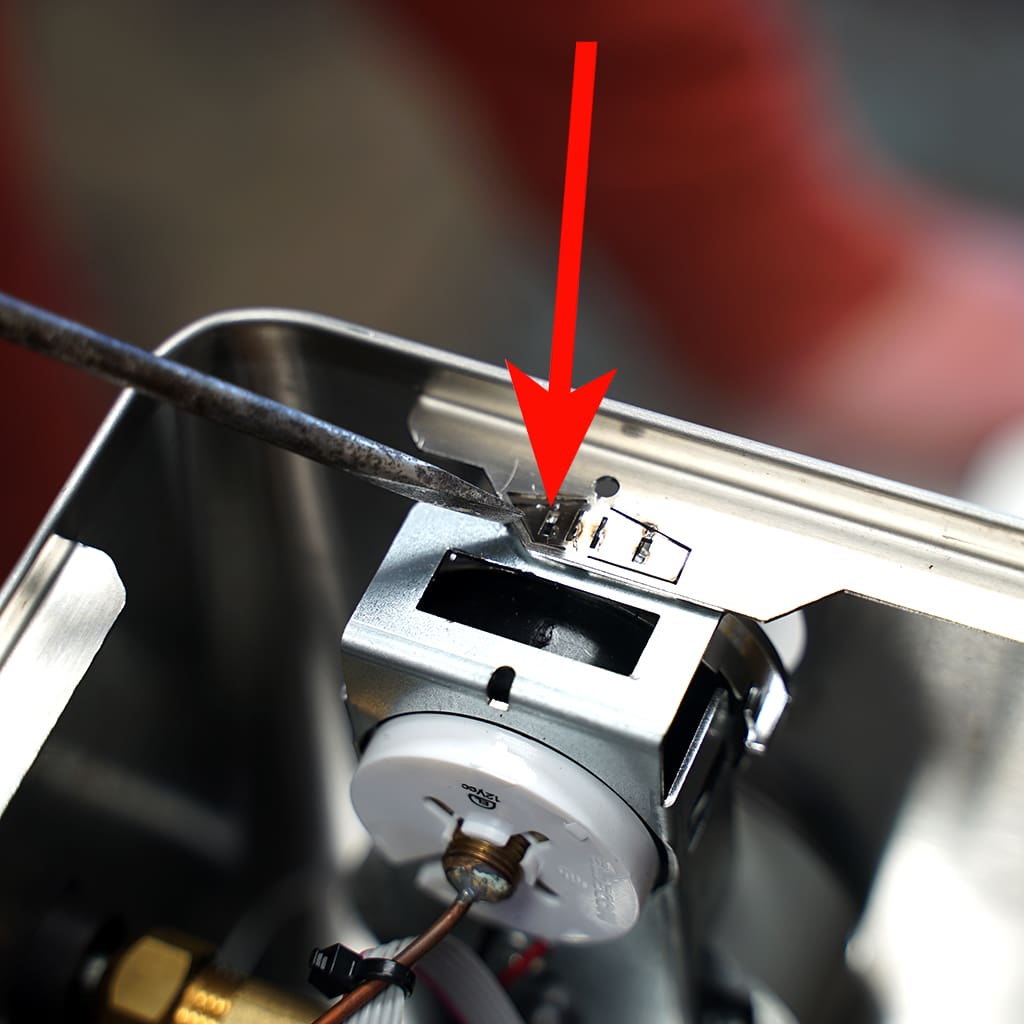

2. Get a flat screw driver and lift up the tab.

Lelit Elizabeth Technical Support-06Lelit Elizabeth Technical Support-07

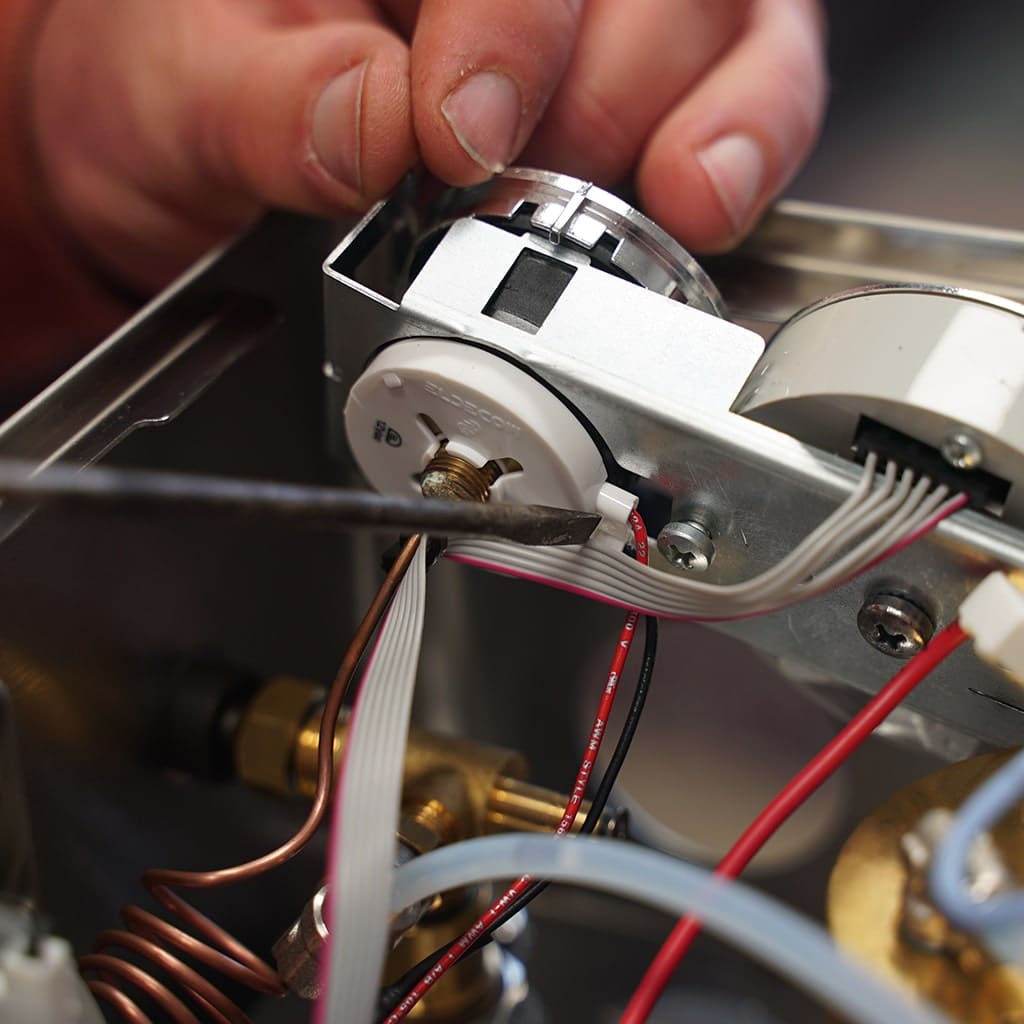

3. Pull the gauge unit out and make sure all the wires are connected properly

Lelit Elizabeth Technical Support-04-min

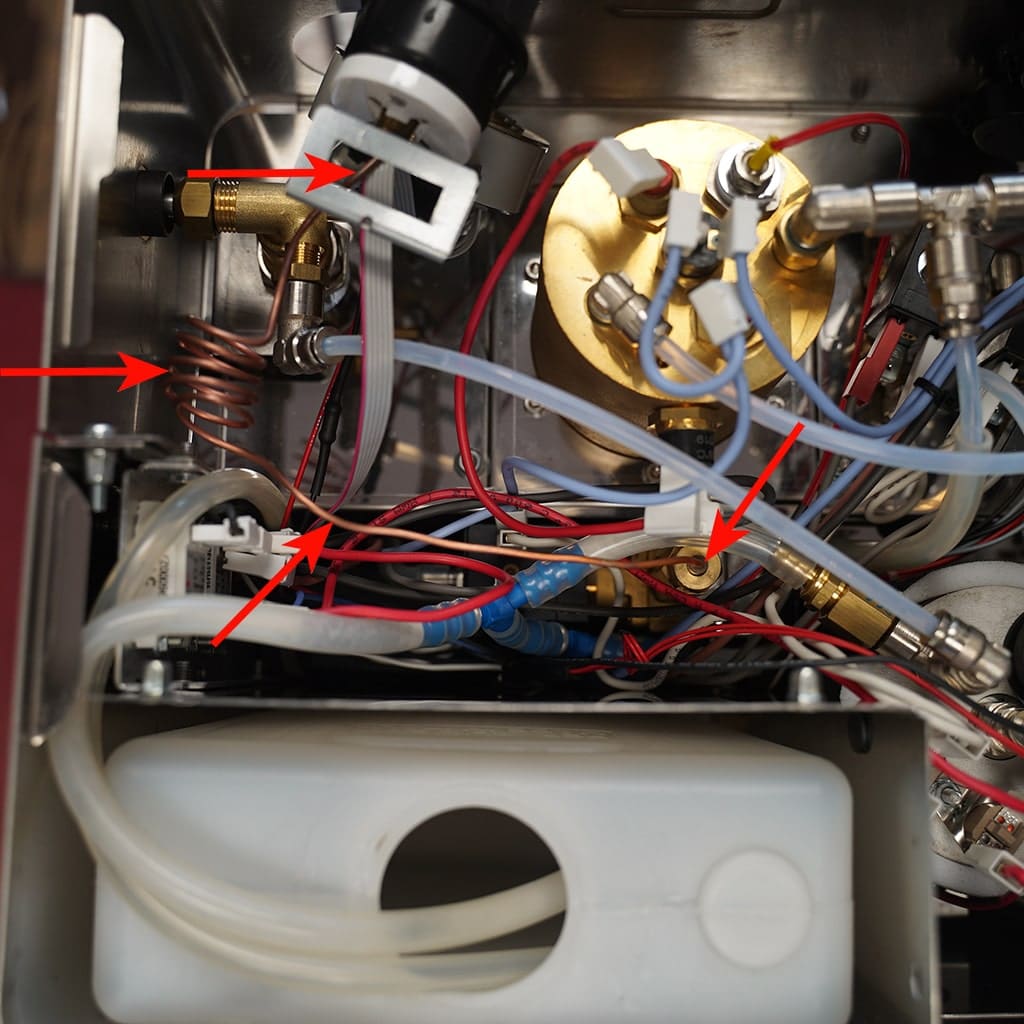

4. Remove the brass nut that is connected to pressure gauge.

Lelit Elizabeth Technical Support-08-min (1)

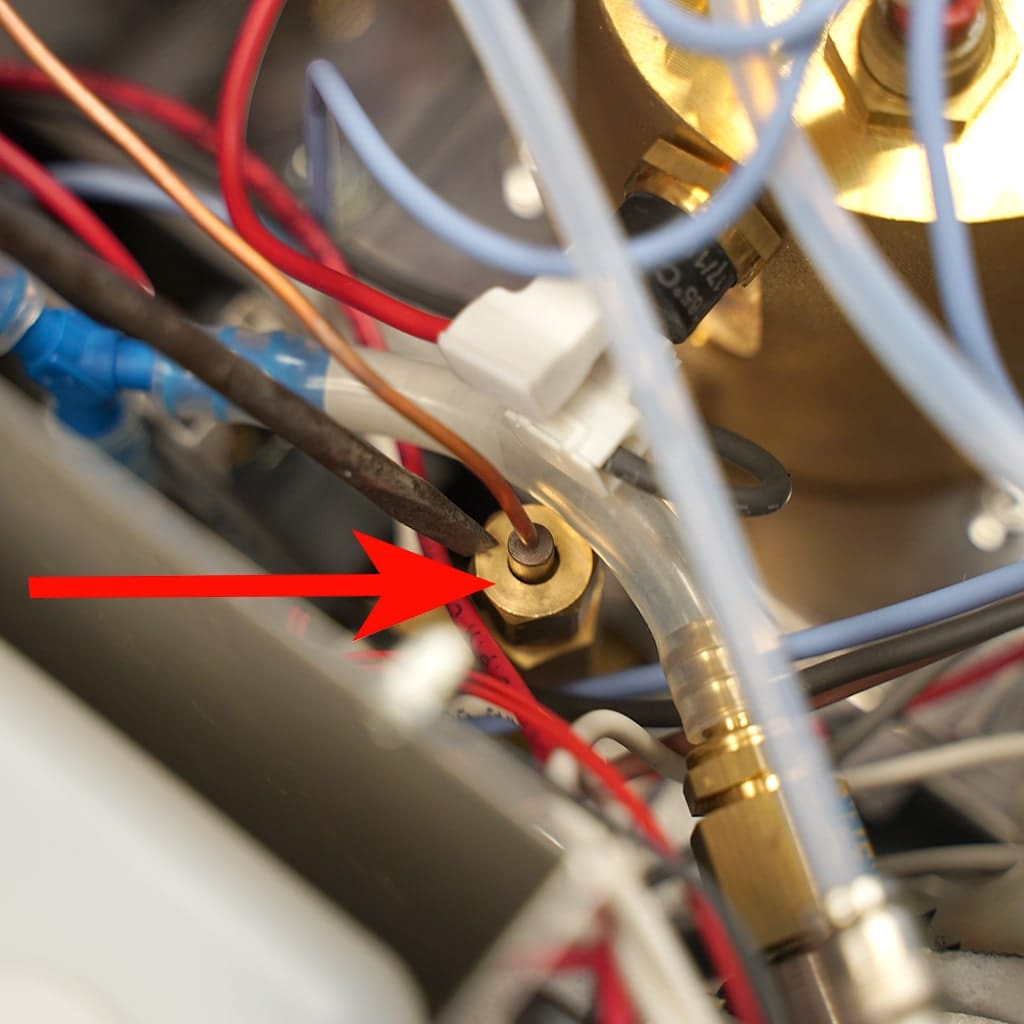

5. Close up of brass nut. Remove the brass nut

Lelit Elizabeth Technical Support-09-min

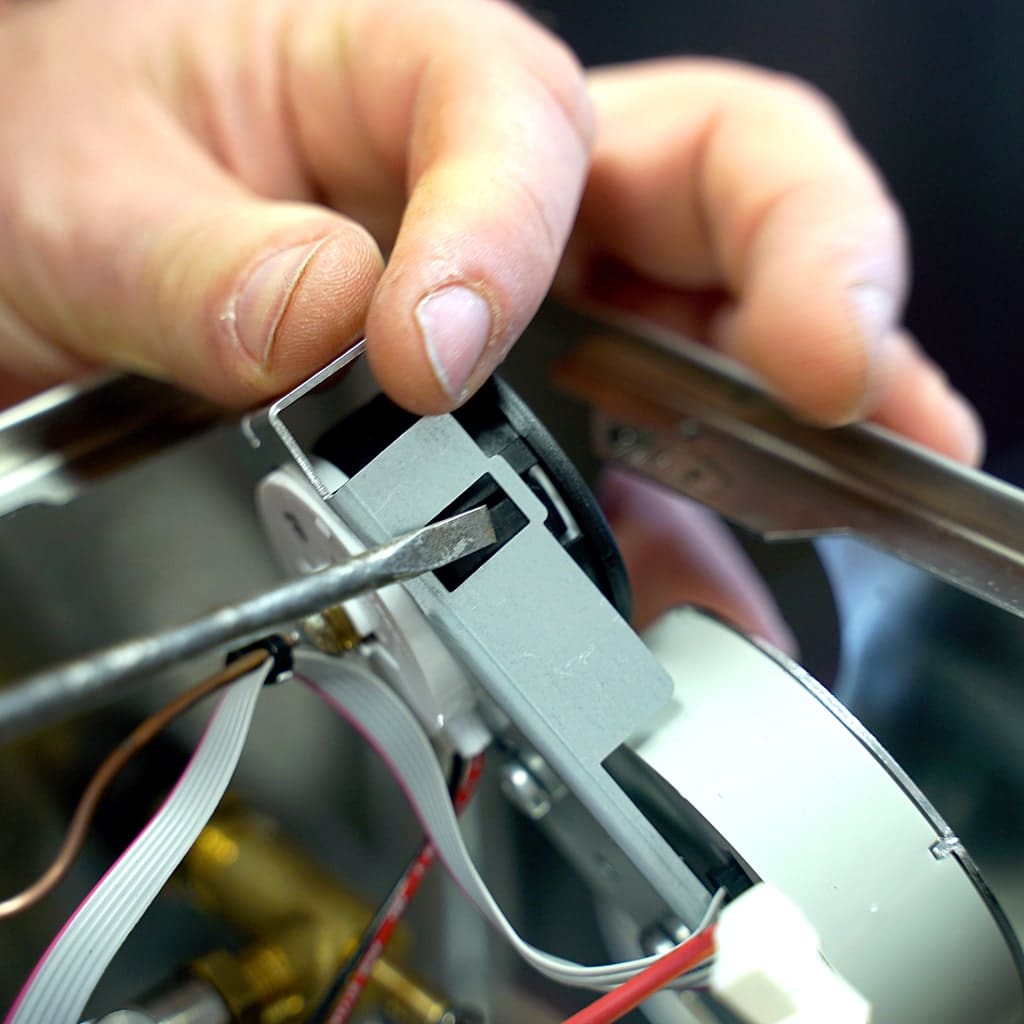

6. Press the tab on both sides to release the pressure gauge.

Lelit Elizabeth Technical Support-10-min
