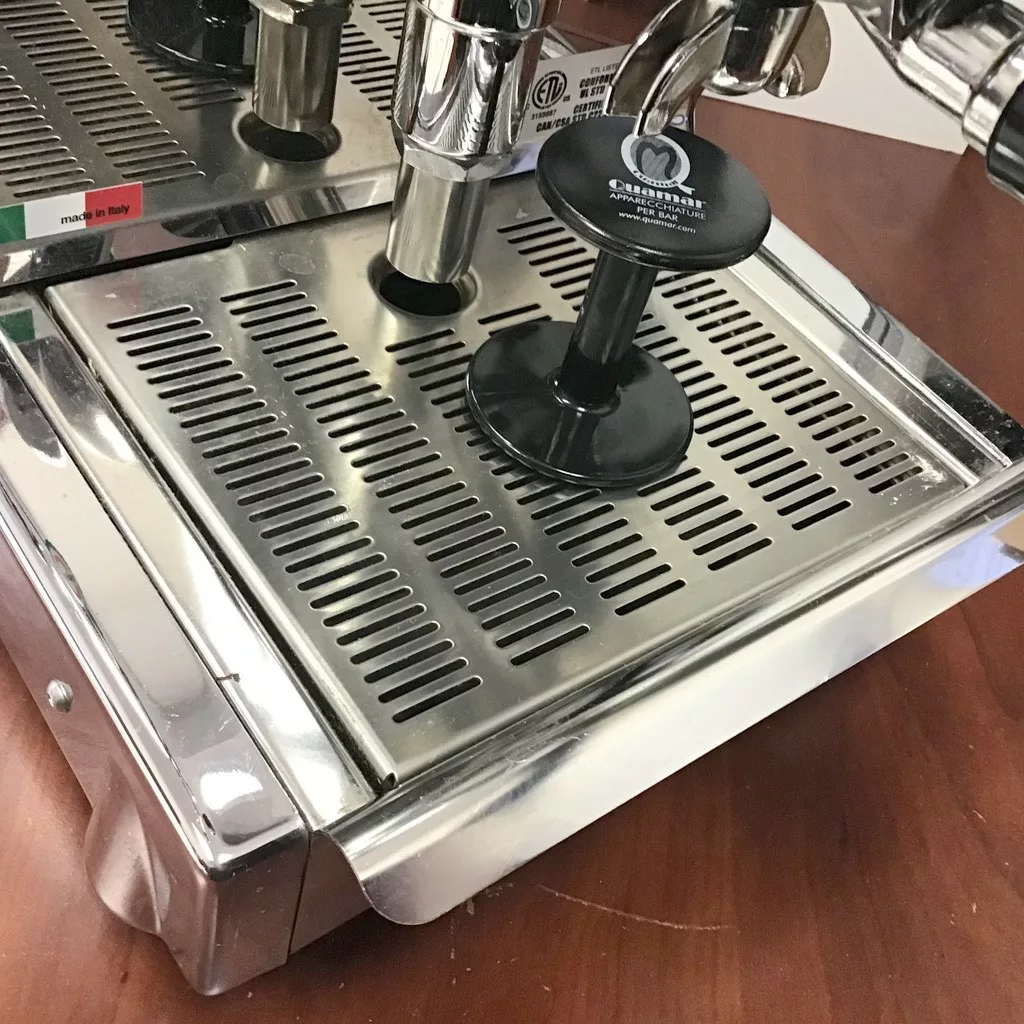

Close-up of a SOLD - USED - La Nuova Era Cuadra Espresso Machine on a wooden counter, with a black tamper resting on the drip tray. © 2025 1st-line.com
A close-up of the SOLD - USED - La Nuova Era Cuadra Espresso Machine reveals a white plastic tank, a clear hose inside, and droplets on the perforated metal surface in front. © 2025 1st-line.com

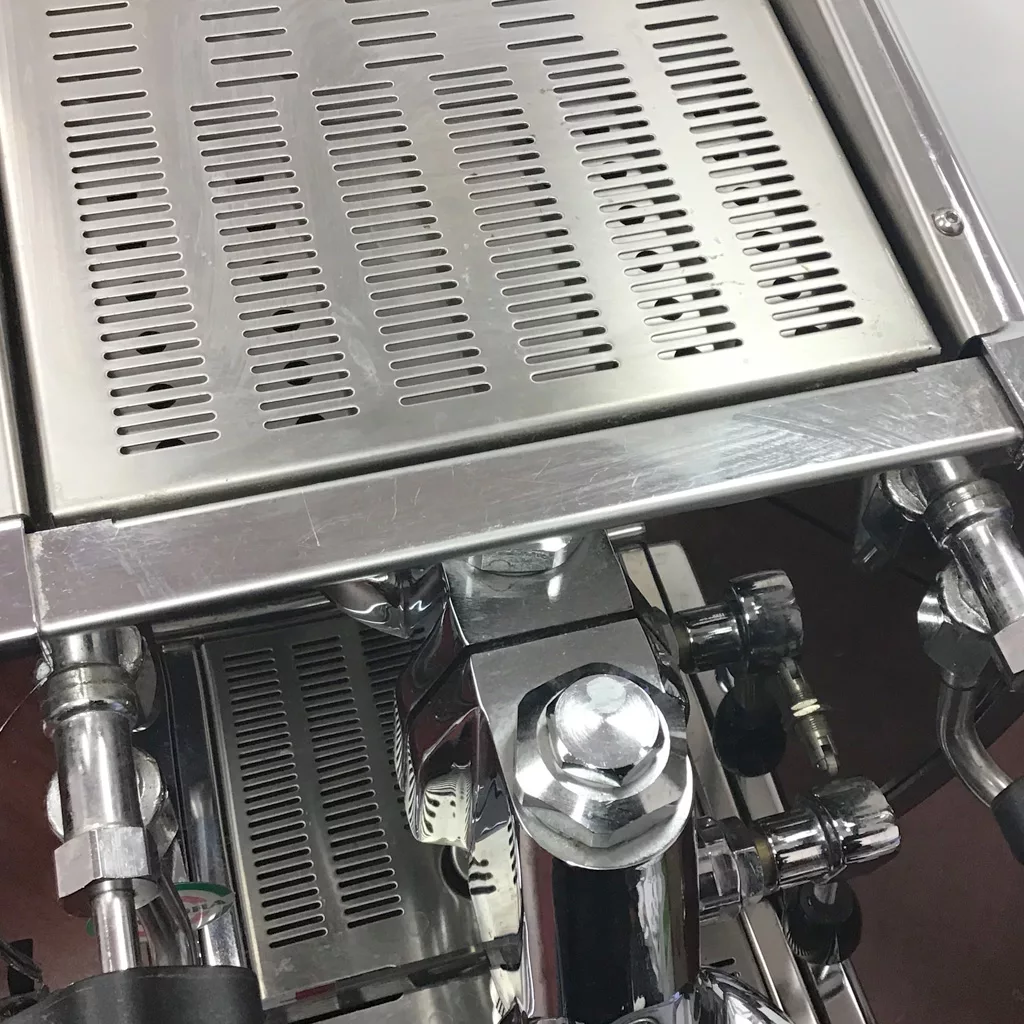

Close-up of the SOLD - USED - La Nuova Era Cuadra Espresso Machine, highlighting its top vented tray, metal pipes, levers, and polished components. © 2025 1st-line.com

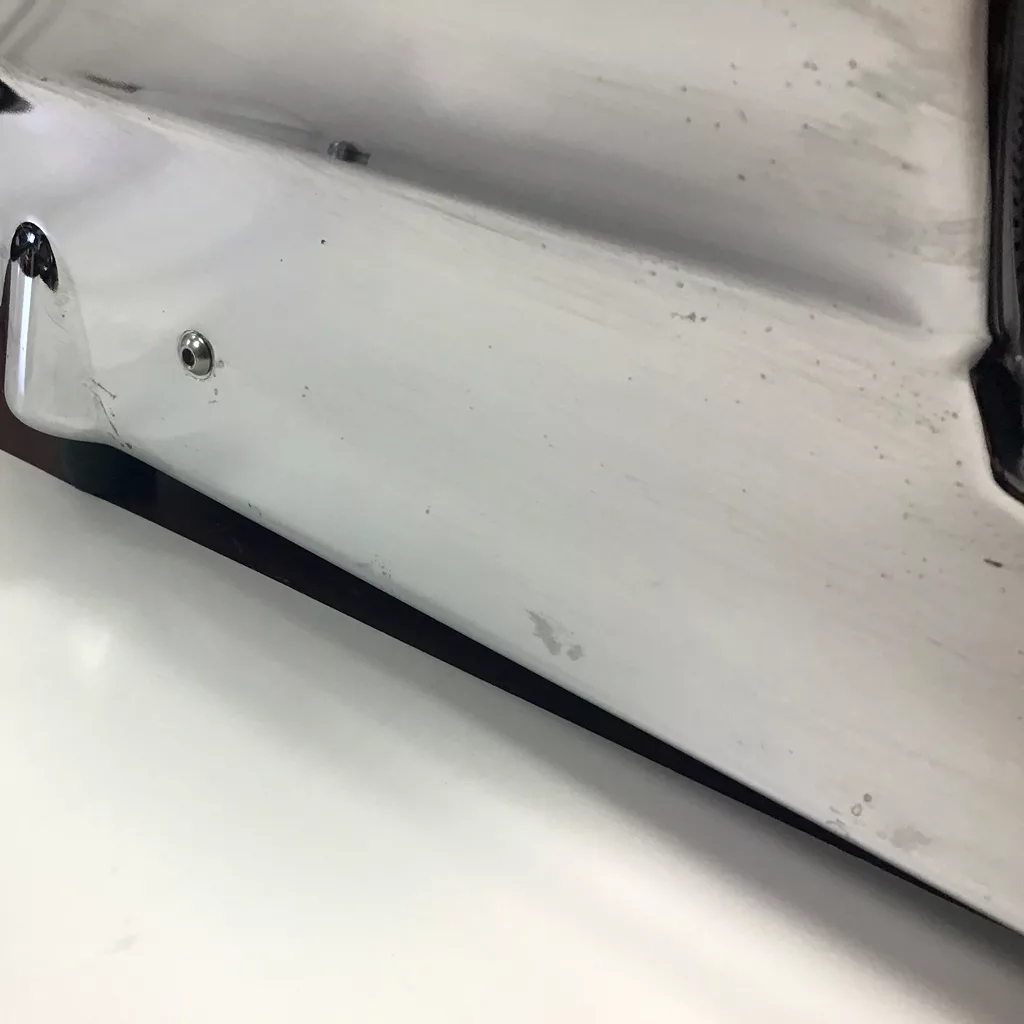

A close-up of a shiny chrome car bumper and fender with some smudges and minor scratches, similar to the polished finish on a SOLD - USED - La Nuova Era Cuadra Espresso Machine. © 2025 1st-line.com

SOLD – USED – La Nuova Era Cuadra Espresso Machine

0 reviews

$0.00

This product has been sold.

Request a Quote for Custom Package Builds
SKU: rrCuadra2 Categories: , , , Tag:

Overview

La Nuova Era Cuadra HX Espresso Machine

Our version of the La Nuova Era Cuadra includes a no-burn steam wand, no-burn hot water wand, and an upgraded brain unit. Heat exchanger (HX) system with an E61 grouphead. Boiler pressure gauge. There is even a refill spout so you do not need to pull your machine forward to fill the reservoir. Brain unit, pump, and solenoid valve are near the bottom to avoid boiler heat which rises, and these same items are protected with stainless steel covering to prevent water from splashing on them. Need we say more? Looking for another heat exchange espresso machine? Take a look at the Bellezza Inizo R Leva HX Espresso Machine

Videos

3 videos found
How To: Changing Pressurestat Settings on the La Nuova Era Cuadra
How To: Changing Pressurestat Settings on the La Nuova Era Cuadra
Overview: La Nuova Era Cuadra Espresso Machine
Overview: La Nuova Era Cuadra Espresso Machine
Java Jim in Italy: Gruppo Argentini Espresso Machine Factory with Tommy Winberg!
Java Jim in Italy: Gruppo Argentini Espresso Machine Factory with Tommy Winberg!

Features

Heat exchange system

  • Copper, insulation: The boiler is made of copper which retains heat better than stainless steel. Typically copper boilers are more susceptible to limescale when you compare to stainless steel boilers. Therefore, we highly recommend utilizing the water softener that comes with this machine. The manufacturer wraps the boiler with insulation for maximum heat retention.
  • Pull a shot & steam milk at the same time: Steam is always readily available. Hence, there is no wait time going from coffee to steam mode.
Close-up of the internal components of the DISCONTINUED La Nuova Era Cuadra HX Espresso Machine, showing copper pipes, fittings, wires, and a black insulated boiler inside its metal frame. © 2025 1st-line.com
Close-up of the DISCONTINUED La Nuova Era Cuadra HX Espresso Machine with a chrome finish. HOUSEHOLD USE ONLY is visible on a circular part, reflecting light and nearby details. © 2025 1st-line.com

E-61 grouphead

  • Constantly heated: Hot water circulates from the heat exchanger through the grouphead and back to keep the grouphead and your portafilter nice and hot. As a result, the grouphead temperature constant and stable when you compare to other groupheads that have a built-in heating element.
  • Pre-infusion: Lever next to the grouphead activates a microswitch which turns on the pump to pump water through the coffee grinds. Pulling the lever half way up will open the valve to allow water into the grouphead without activating the pump. Please note that true pre-infusion requires the direct water connection whereby the water pressure from the water line creates true pre-infusion.

Tank/reservoir system

  • Water softener: The best protection from any limescale buildup in your machine. The water softener must be charged before use. Please follow our instructions on how to do so. This water softener also acts as a particle filter to protect the machine from any unseen particles entering the boiler.
  • Auto-shut off: Prevents burning out the heating element. The water tank sits on a spring activated plate. Once the water is low, the plate depresses the tank microswitch which turns off the heating element.
Top view of the DISCONTINUED La Nuova Era Cuadra HX Espresso Machine, showing its perforated metal panel, flexible tubes, and two white rectangular compartments on a white surface with a wood-paneled background. © 2025 1st-line.com
Close-up of internal mechanical parts, wires, and connectors—likely from a DISCONTINUED La Nuova Era Cuadra HX Espresso Machine. Bolts and tubing are partially visible in the obscured area. © 2025 1st-line.com

Vibratory pump

  • Efficient: 41 watts, rated up to 15 bar with air valve bypass. You only need 9 bar to extract perfect espresso, and wattage has no correlation to longevity.
  • Cost effective: Pumps will degrade in performance over time. Replacing a vibration pump will cost less than a rotary vane pump.

Steam/water wand

  • Multi-directional: Allows for more movement and flexibility. The wands connect to the valves at an angle to the side for even more flexibility. As a result, there is less risk of burning oneself from the exposed grouphead.
  • No burn: Normally the Cuadra comes with regular wands, but requested no-burn wands. Both wands have insulation, which allows you to touch any part of the stem. Please note after very long periods of use, the wands will eventually be hot.
  • 2-hole steam tip: Allows for a slow gradual build-up of microfoam.
  • Rotational knobs: Allows for easier control of the intensity.
Close-up of two La Nuova Era espresso machine steam wands with shiny metal finishes; the left has a rounded tip, while the right, from the DISCONTINUED La Nuova Era Cuadra HX Espresso Machine, features a nozzle-shaped tip. © 2025 1st-line.com
Upload Image...

Construction

  • Frame: Made of stainless steel (not polished).
  • Body panels: Sides panels are made of plastic with a polished chrome color coat. The back panel is made of stainless steel satin with a satin finish. The front panel is made of stainless steel with a polished finish.
  • Drip tray: Made of stainless steel. Slides out from the machine for easy cleaning. Plastic insert and stainless steel drip tray cover add a really nice touch.
  • Cup warmer tray: Made of stainless steel. Must be removed to refill the water reservoir. As with any machine, cups can take up to 2 hours to preheat using a cup warmer tray. You can use the water wand to flash heat your cups.

Accessories included

  • Portafilters: Single spout portafilter & dual spout portafilter. Both are 58 mm. The filter heads have “La Nuova Era” imprint on them.
  • Filter baskets: 1-cup filter basket which holds approximately 7 grams. 2-cup filter basket which holds approximately 14 grams. 58 mm in diameter.
  • Tamper: A cheap plastic tamper. Manufacturers will normally include a tamper like this to keep the overall selling price of the machine low. We recommend upgrading to a better tamper.
  • Cleaning brush: Used for cleaning the grouphead. Ergonomically designed with an angle for easier usage.
  • Coffee scoop: A simple plastic scoop if you are using pre-ground coffee.
  • Cleaning brush: Specifically for cleaning the grouphead.
  • Funnel: Helps fill your water tank without the need to remove it. Useful if your machine doesn’t have the height clearance to allow you to fully remove the water tank from your machine.
  • Water softener: Already attached to the intake hose.
  • Instruction manual: Available in English and Italian.
Accessories for the DISCONTINUED La Nuova Era Cuadra HX Espresso Machine displayed in a row on white: two portafilters, tamper, filter baskets, cleaning tools, white scoop, and black power cord. © 2025 1st-line.com

Specifications

Brand

La Nuova Era
Height (inches)

15, approximate
Width (inches)

14.5, approximate
Depth (inches)

17, approximate
Weight (pounds)

38
Wattage (watts)

1200
Voltage (volts)

110 – 120
Boiler capacity (liters)

1.8
Tank capacity (liters)

3
Country of manufacture

Italy
Approvals

CE

Notes

General Espresso Machine Notes/Warnings:

  • Upon first use (tank/reservoir models): On the initial start-up (or after a long period of non-use), it is important to make sure the pump is removing water from the tank. When the machine is powered on, you will hear the pump running. After 5 seconds, squeeze the in-line hose in the tank (usually the longest hose, has a particle filter attached). if you hear a different sound, this means the pump is working correctly. If not, immediately power down the machine and contact us. For more information, visit this page General Manual Pump Priming.
  • Electrical: To avoid electrical damage to this espresso machine which is not considered a manufacturer's defect, please acquire and install a single-outlet surge suppressor rated at 1080 joules or higher. Without the recommended surge suppressor, the espresso machine can be damaged at the power switch, the electronics, the heating element, the pressurstat, or the wiring inside. For more information, visit this page Power Protection.
  • Water: To increase the useful life and not damage your espresso machine, please use softened water. Softened water is water without calcium and magnesium, but still has other minerals for espresso extraction. Do not use distilled, purified, or reverse osmosis water as these types of water create oxidation with the metals and cause the same damaging effects as limescale. For more information, visit this page Water Choice.
  • Descaling: We do not recommend descaling unless there is an issue with the espresso machine. Too much descaling can eat away at the metals and gaskets inside an espresso machine. As a preventative measure, we recommend using softened water as explained in the bullet point above.
  • Backflushing: This procedure of cleaning the grouphead will need to be performed from time to time. For more information, visit this page Espresso Machine Backflush – Why 50?

Support

Parts Diagram

No block ID is set

Reviews

Reviews with attachments
Leave your review
Rating
Publish review

Q & A

Ask a question

Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

    Where is the mentioned crack? Where can we see it / pickup; Freehold NJ? Is it in full working order at the moment?
  1. 0 votes
    Q Where is the mentioned crack? Where can we see it / pickup; Freehold NJ? Is it in full working ...... Read more answer now
    Asked by Danny on February 12, 2020 4:00 pm
    Answered by the admin

    The reservoir top has a small crack. You can see it in the tank picture.

    The machine can be viewed in our showroom and is in working order. It must be picked up as we do not have the packaging to ship it.

Ask a question

Please ask follow up questions as a new question. Submitted questions will be first reviewed, answered, and lastly publicized.

    Where is the mentioned crack? Where can we see it / pickup; Freehold NJ? Is it in full working order at the moment?
  1. 0 votes
    Q Where is the mentioned crack? Where can we see it / pickup; Freehold NJ? Is it in full working ...... Read more answer now
    Asked by Danny on February 12, 2020 4:00 pm
    Answered by the admin

    The reservoir top has a small crack. You can see it in the tank picture.

    The machine can be viewed in our showroom and is in working order. It must be picked up as we do not have the packaging to ship it.
